Part Number # TCF40
SKU # 340356
Image Disclaimers Message
Brand: Bussmann
TCF40

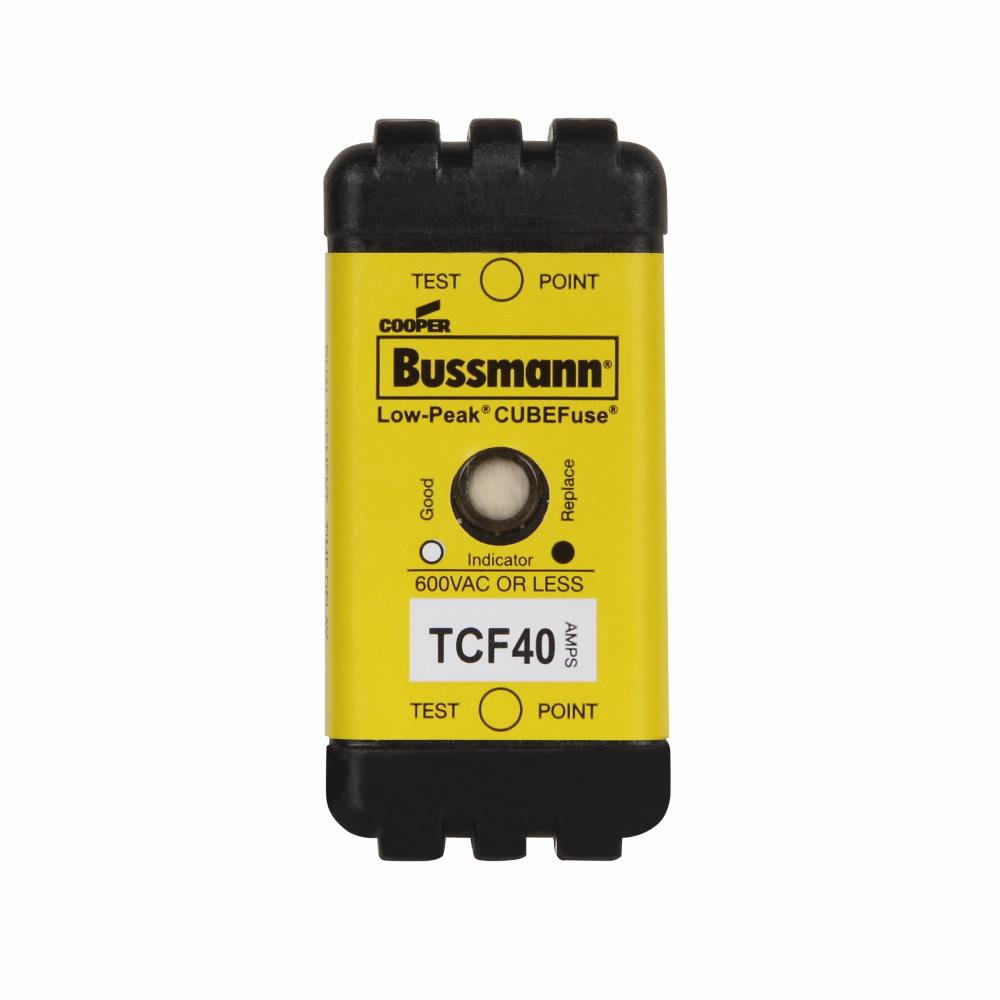

Bussmann TCF40 Low-Peak Fuse
Part Number # TCF40
SKU # 340356
$1638.00 / 12Each
Typical price:$2790.84 / Each
Bussmann TCF40 Key Features
Brand: Bussmann
Part Number # TCF40
SKU #340356
Amperage Rating: 40, 40 A
Body Type: Cartridge, Square, Square Blade
Class: CF, Class CF
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Indicating
Interrupt Rating: 100/300, 100/300 kA, 300 kA at 600 VAC/100 kA at 300 VDC, 200 kA
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 s at 500%
Series: TCF
Terminal Type: Blade, Plug-In, Radial Blade Plug-In
Type: Indicating Non-Rejection, Inrush Current Withstand Time Delay
Voltage Rating: 600 VAC/300 VDC
Color: Black
Country of origin: CN
Material: Glass Filled PES, Glass Filled Polyethersulfone
Mounting type: Chassis/DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712615051
$1638.00 / 12Each
Typical price:$2790.84 / Each
Bussmann TCF40 Low-Peak Fuse
Brand: Bussmann
Part Number: TCF40
Bussmann CUBEFuse Time Delay Fuse, Indicating Non-Rejection, Series: TCF, 40 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 0.406 in Dia x 1.54 in L Body Size
Additional Description: BUSS-TCF40 TIME DELAY CUBEFUSE 40A IND
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 40 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF40 Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panelboards, Industrial Control, Machinery Disconnects and Required Finger safe systems, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF40 Item Features
- Worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- Indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kA rms symmetrical at 600 VAC, 100 kA at 300 VDC interrupt rating
- Copper alloy terminals, electroless tin terminal plating, PES (polyethersulfone) indicator lens, energetic chemical indicator
- 10 s at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF40 Standards
CE Certified|CSA 1422- 02|RoHS Compliant|UL File No. 53787|UL File No. E4273|UL Guide JFHRSKU #340356Part Number #TCF40UNSPSC39121606UPC00051712615051
