Brand: Bussmann
TCF40RN

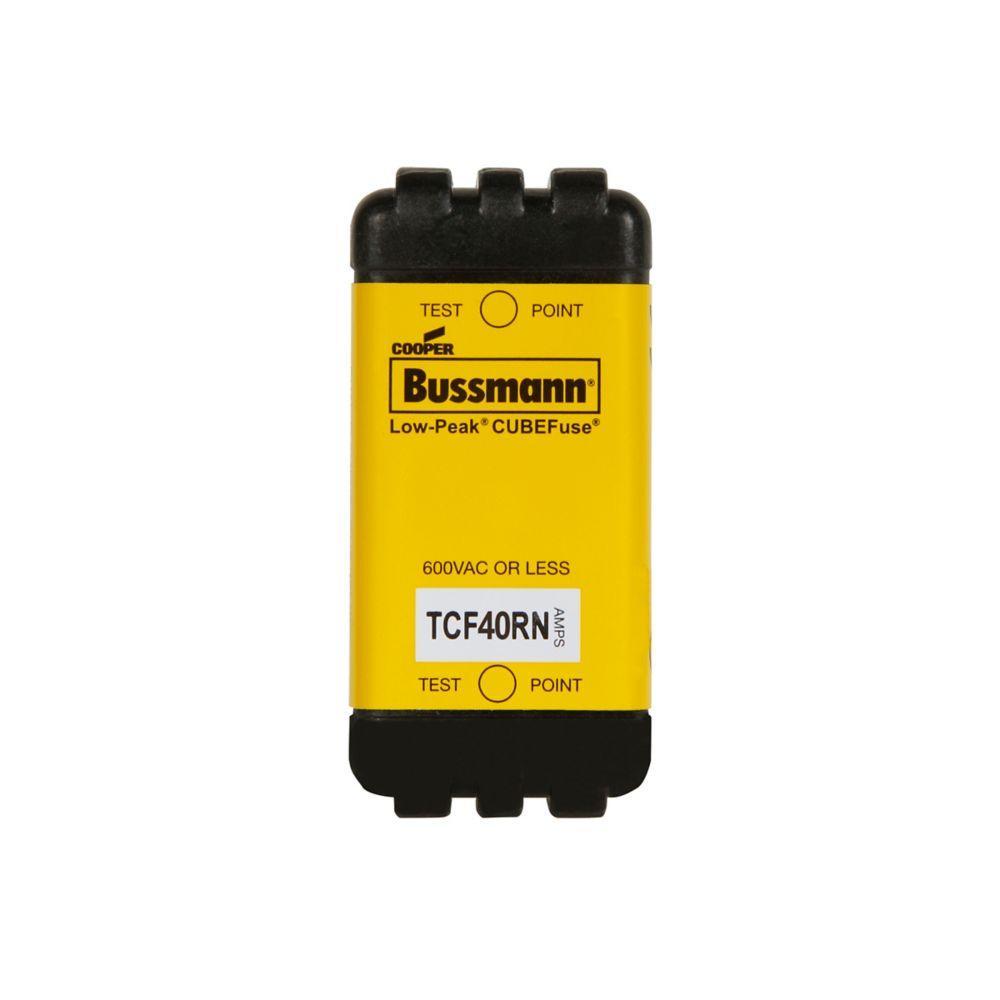

Bussmann TCF40RN Time Delay Fuse
Part Number # TCF40RN
SKU # 2227214
$1546.44 / 12Each
Typical price:$2634.84 / Each
Bussmann TCF40RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF40RN |
| SKU #: | 2227214 |
| Amperage Rating: | 40, 40 A |
| Body Type: | Cartridge, Square, Square Blade |
| Class: | CF |
| Frequency Rating: | 50/60 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/200/300, 100/300 kA, 300 kA at 600 VAC/100 kA at 300 VDC, 200 kA |
| Response Time: | 10, 10 s at 500% |
| Series: | TCF |
| Terminal Type: | Blade, Radial Blade Plug-In |
| Type: | Finger Safe Inrush Current Withstand, Finger Safe Inrush Current Withstand Non-Indicating, Inrush Current Withstand |
| Color: | Black |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712220989 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1546.44 / 12Each
Typical price:$2634.84 / Each
Quantity:
- Bussmann CUBEFuse Low-Peak Time Delay Fuse, Finger Safe Inrush Current Withstand Non-Indicating, Series: TCF, 40 A, 600 V AC/300 V DC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 2 in L x 1 in W x 2 in H Body Size
TCF40RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger safe systems Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF40RN Item Features
- The worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 100 kAIC at 300 Vdc/300 kAIC at 600 Vac interrupt rating
- 10 s at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF40RN Standards
CE Certified|CSA 1422- 02/File No. 53787|RoHS Compliant|UL File No. E4273|UL Guide JFHRSKU #2227214Part Number #TCF40RNUNSPSC39121606UPC00051712220989
