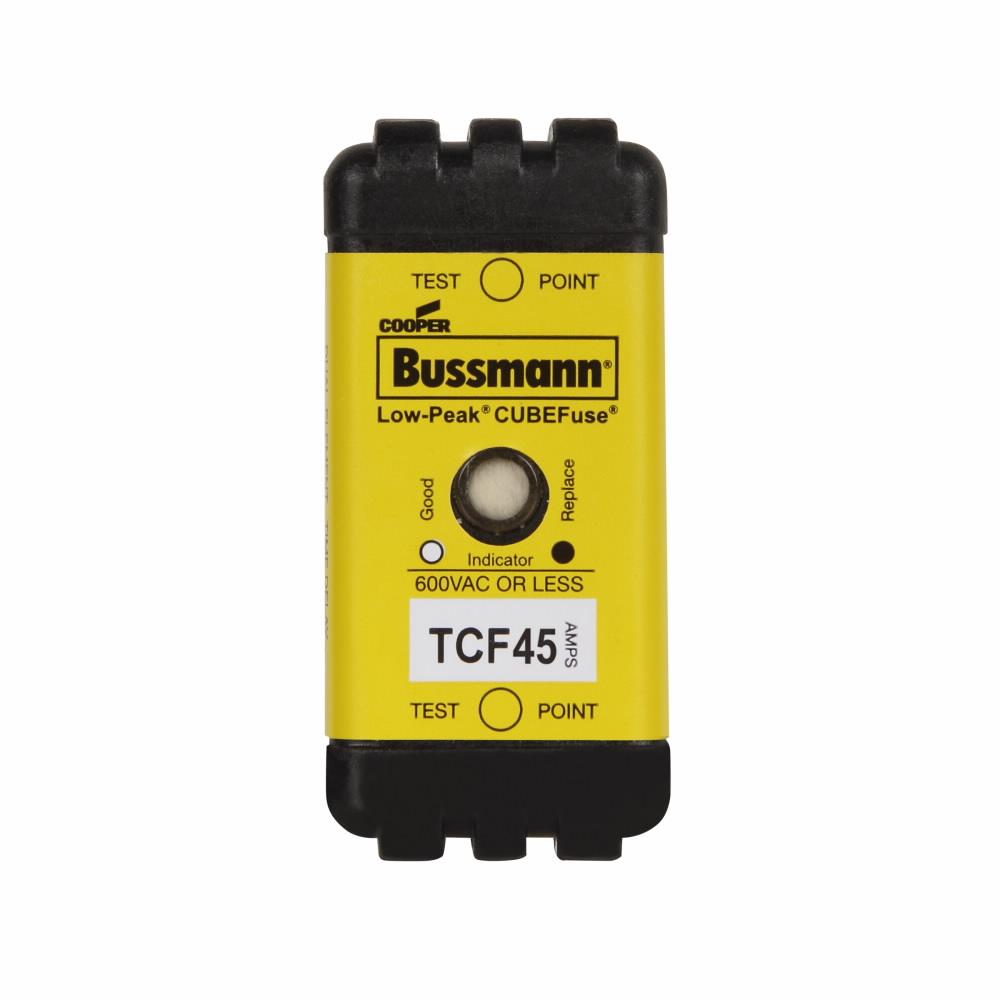

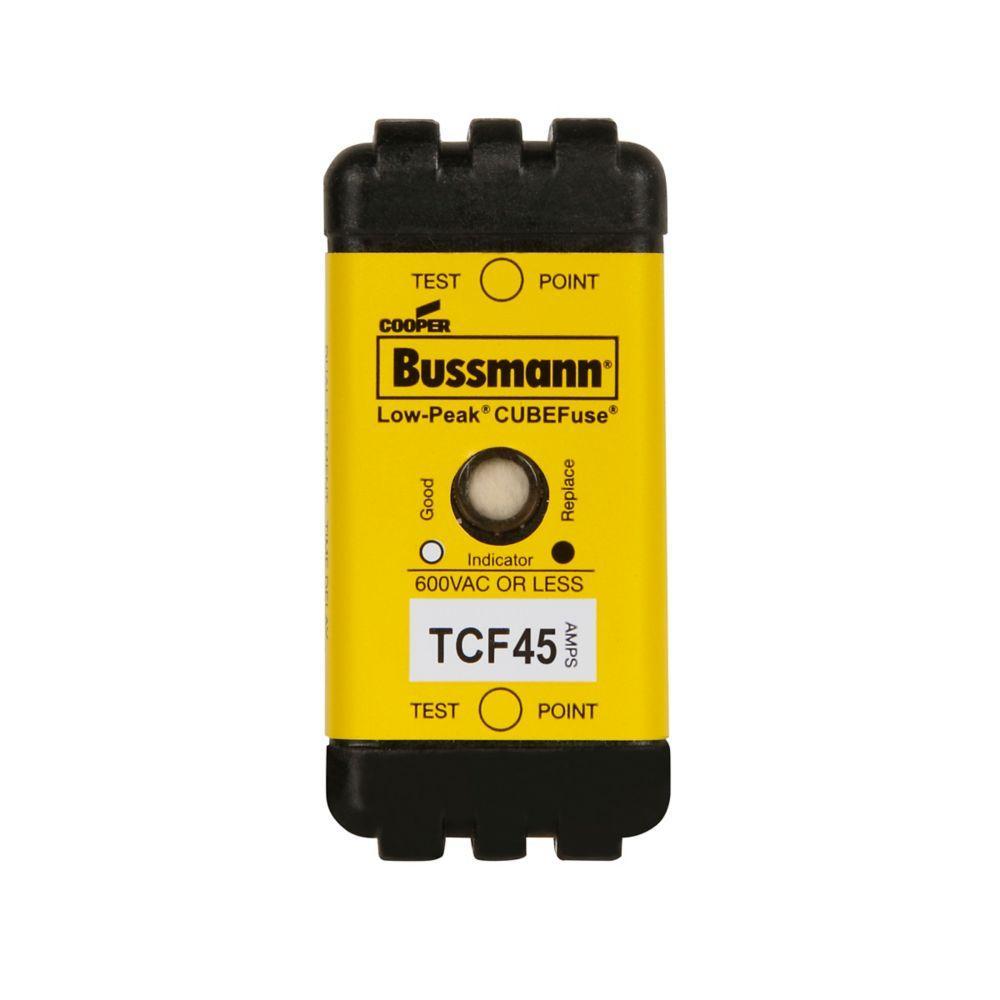

Bussmann TCF45 Time Delay Fuse
Part Number # TCF45
SKU # 2141319
$1638.36 / 12Each
Bussmann TCF45 Key Features
Brand: Bussmann
Part Number # TCF45
SKU #2141319
Amperage Rating: 45, 45 A
Body Type: Square
Class: CF
Indicating/Non-Indicating: Indicating
Interrupt Rating: 100/300 kA, 300 kA at 600 VAC, 100 kA at 300 VDC, 300/100
Rejection/Non-Rejection: Non-Rejection
Response Time: 10, 10 s at 500%
Series: TCF
Terminal Type: Blade, Radial Blade Plug-In
Type: Current Limiting Inrush Current Withstand, Inrush Current Withstand Time Delay
Voltage Rating: 600 VAC, 300 VDC, 600 VAC/300 VDC
Country of origin: CN
Material: Glass Filled Polyethersulfone
Mounting type: Chassis/DIN Rail, Chassis/DIN Rail/Plug-In, DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712615068
$1638.36 / 12Each
Bussmann TCF45 Time Delay Fuse
Brand: Bussmann
Part Number: TCF45
Bussmann Low-Peak CUBEFuse Time Delay Fuse, Current Limiting Inrush Current Withstand, Series: TCF, 45 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Body Type, Dual Element, Glass Filled Polyethersulfone, 2.13 in L x 1 in W x 1.13 in H Body Size
Additional Description: BUSS-TCF45 CUBEFUSE, TCF 45A IND
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 45 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF45 Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger safe system Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF45 Item Features
- The worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High 300 kA interrupt rating safely interrupts virtually any fault
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Bussmann series Low-Peak class CC, J, L or RK1 fuse with simple 2:1 amp ratio between upstream and downstream fuses
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF45 Standards
CE Certified|CSA 1422- 02|CSA Certified|CSA File No. 53787|RoHS Compliant|UL File No. E4273|UL Guide JDDZ|UL ListedSKU #2141319Part Number #TCF45UNSPSC39121606UPC00051712615068
