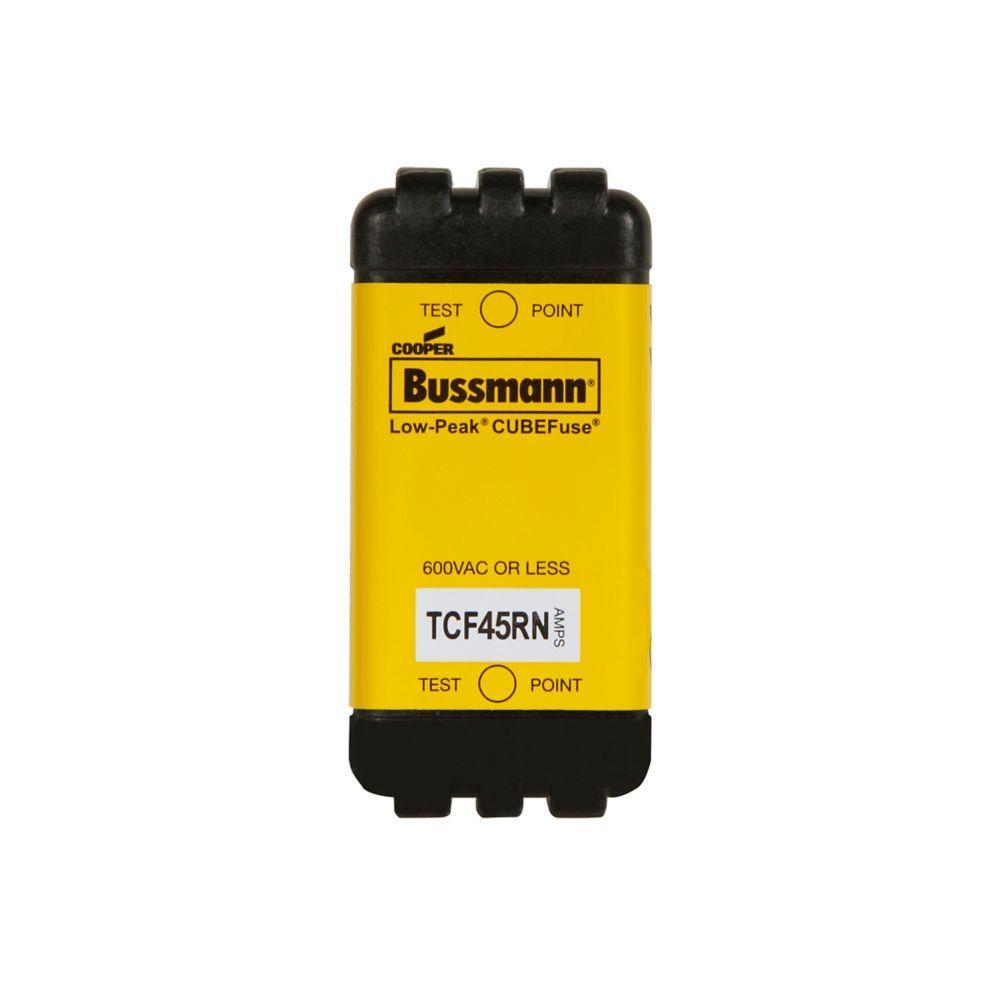

Bussmann TCF45RN Time Delay Fuse
Part Number # TCF45RN
SKU # 2307961
$1546.44 / 12Each
Bussmann TCF45RN Key Features
Brand: Bussmann
Part Number # TCF45RN
SKU #2307961
Amperage Rating: 45, 45 A
Body Type: Square, Square Blade
Class: CF
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 100/200/300, 100/300 kA, 300 kA at 600 VAC, 100 kA at 300 VDC
Response Time: 10, 10 s at 500%
Series: TCF
Terminal Type: Blade, Radial Blade Plug-In
Type: Cartridge Inrush Current Withstand, Finger Safe Inrush Current Withstand, Finger Safe Inrush Current Withstand Non-Indicating
Voltage Rating: 600 VAC, 300 VDC, 600 VAC/300 VDC
Color: Black
Material: Glass Filled Polyethersulfone
Mounting type: Chassis/DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712220996
$1546.44 / 12Each
Bussmann TCF45RN Time Delay Fuse
Brand: Bussmann
Part Number: TCF45RN
Bussmann CUBEFuse Low-Peak Time Delay Fuse, Finger Safe Inrush Current Withstand Non-Indicating, Series: TCF, 45 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 2.13 in L x 1 in H Body Size
Additional Description: BUSS-TCF45RN CUBEFUSE, TCF 45A NON-IND
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 45 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at@ 600 Vac
TCF45RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger safe systems Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF45RN Item Features
- The worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak class CC, L, J and RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 300 kAIC at 600 Vac/100 kAIC at 300 Vdc interrupt rating
- 10 s at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF45RN Standards
CE Certified|CSA 1422- 02/File No. 53787|RoHS Compliant|UL File No. E4273|UL Guide JFHRSKU #2307961Part Number #TCF45RNUNSPSC39121606UPC00051712220996
