Part Number # TCF6
SKU # 340364
TCF6
Bussmann TCF6 Time Delay Fuse
Part Number # TCF6
SKU # 340364
Bussmann TCF6 Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF6 |
| SKU #: | 340364 |
| Amperage Rating: | 6, 6 A |
| Body Type: | Square, Square Blade |
| Class: | CF, Class CF |
| Indicating/Non-Indicating: | Indicating |
| Interrupt Rating: | 100/200/300, 100/300 kA, 300/100 |
| Response Time: | 10 |
| Series: | TCF |
| Terminal Type: | Radial Blade Plug-In |
| Type: | Current Limiting Inrush Current Withstand, Finger Safe, Finger Safe Indicating |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail |
| UNSPSC: | 39121606 |
| UPC: | 00051712614979 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann TCF6 Time Delay Fuse
Brand: Bussmann
Part Number: TCF6
Bussmann CUBEFuse Low-Peak Time Delay Fuse, Finger Safe Indicating, Series: TCF, 6 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, 3.01 in L x 1 in H Body Size
Additional Description: BUSS-TCF6 (N) TIME DELAY CUBEFUSE 6A IND NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 6 A, indicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF6 Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger safe systems Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF6 Item Features
- The worlds first finger safe power fuse system
- Smallest footprint of any class fuse including class J, CC, T and RK
- Meets class CF and class J time delay electrical performance requirements
- The indicating version features easyID open fuse technology for faster troubleshooting and reduced downtime
- Faster response to damaging faults to help reduce destructive thermal and magnetic forces
- True dual element fuse construction with a minimum of 10 s time delay at 500% of rating
- Long time delay minimizes nuisance circuit openings due to temporary overloads and transient surges
- High interrupt rating to safely interrupt faults up to 300 kA
- No venting of arc or molten metal and gases during opening
- Robust cycling and inrush current withstand
- Low let through currents under fault conditions
- Provides type 2 "no damage" in protection for IEC motors starters when properly sized
- Easy selective co-ordination with any other Cooper Bussmann Low-Peak
- Class CC, L/J/RK1 fuse with simple 2:1 amp ration between upstream and downstream fuses
- 35 mm DIN rail mounting
- 300 kAIC at 600 VAC and 100 kAIC at 300 VDC interrupt rating
- 10 s at 500% response time
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF6 Standards
CE Certified|CSA 1422-02/File No. 53787|CSA C22.2 No. 248.12|RoHS Compliant|UL File No. E56412|UL Guide JFHRSKU #340364Part Number #TCF6UNSPSC39121606UPC00051712614979

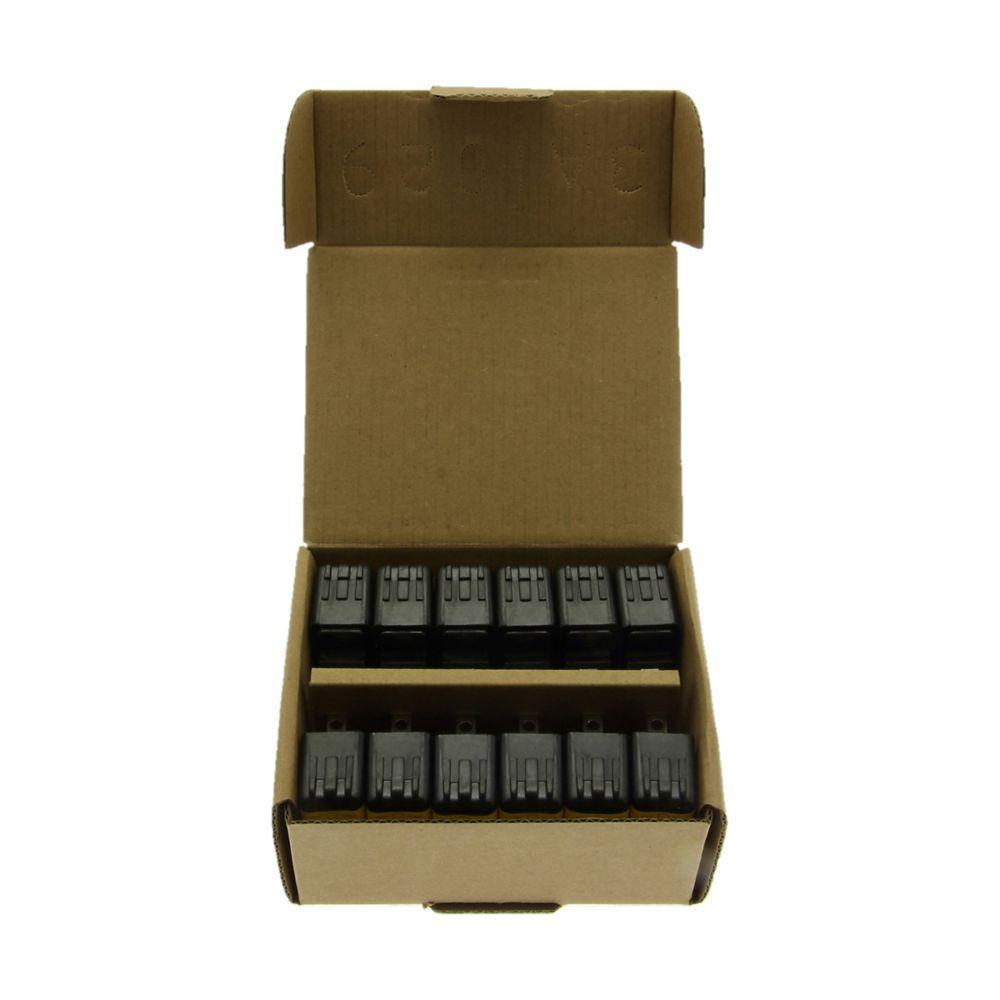

Image provided may only be a representation of final product and may include optional equipment
