TCF6RN

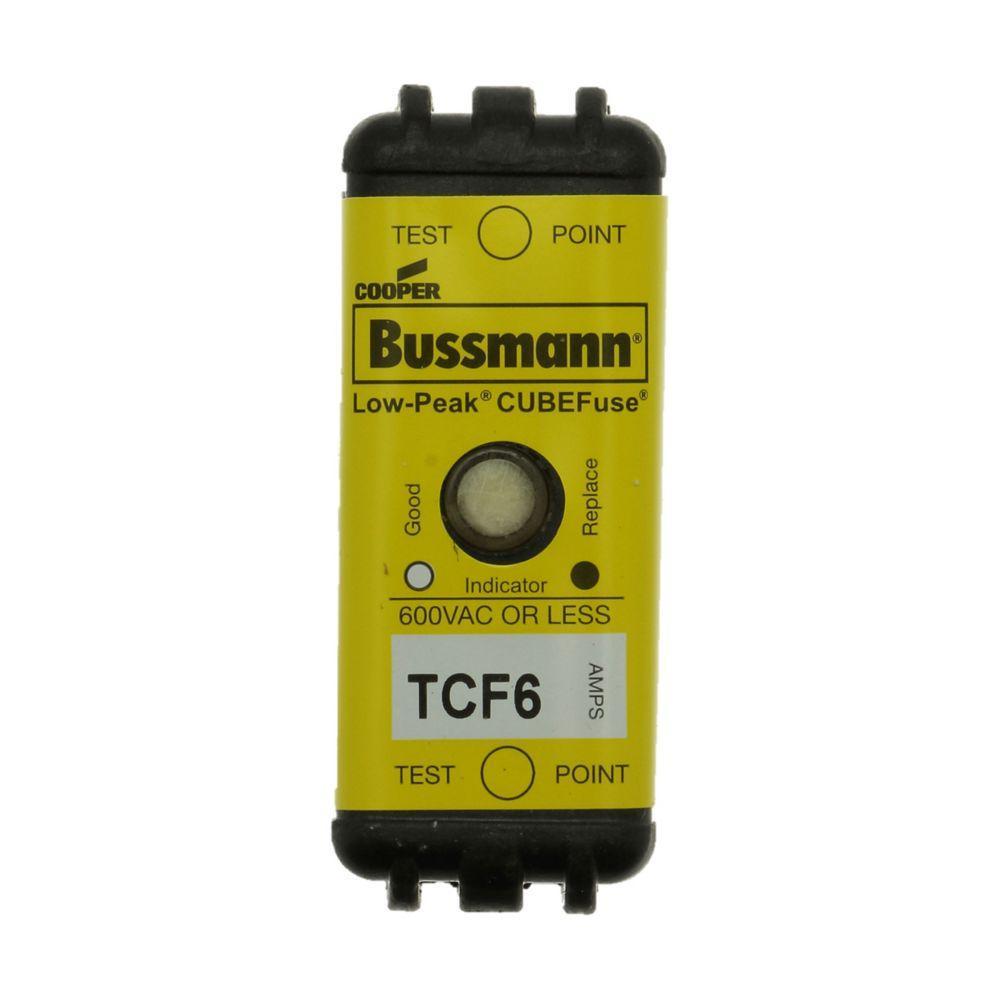

Bussmann TCF6RN Time Delay Fuse
Part Number # TCF6RN
SKU # 2192538
Bussmann TCF6RN Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCF6RN |
| SKU #: | 2192538 |
| Amperage Rating: | 6, 6 A |
| Body Type: | Square, Square Blade |
| Class: | CF |
| Frequency Rating: | 50/60 Hz |
| Indicating/Non-Indicating: | Non-Indicating |
| Interrupt Rating: | 100/300 kA, 300, 300/100 |
| Response Time: | 10, 10 s at 500% |
| Series: | TCF |
| Terminal Type: | Blade, Radial Blade Plug-In |
| Type: | Current Limiting Inrush Current Withstand, Non-Indicating Time Delay, Time Delay |
| Material: | Glass Filled PES, Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail, DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121606 |
| UPC: | 00051712220378 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Bussmann TCF6RN Time Delay Fuse
Brand: Bussmann
Part Number: TCF6RN
Bussmann Cartridge Fuse, Non-Indicating Time Delay, Series: TCF, 6 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 1.88 in L x 0.75 in W Body Size
Additional Description: BUSS-TCF6RN (N) TIME DELAY CUBEFUSE 6A NON-IND NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Bussmann Series Class CF fuse, TCF, time-delay, dual-element current limiting cube fuse, 6 A, non-idicating fuse, interrupting rating of 100 kA at 300 Vdc and 300 kA at 600 Vac
TCF6RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger safe system Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF6RN Item Features
- Finger safe
- Fuse Type: CUBEFuse
- Dual element
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF6RN Standards
CE Certified|CSA Certified|RoHS Compliant|UL ListedSKU #2192538Part Number #TCF6RNUNSPSC39121606UPC00051712220378
