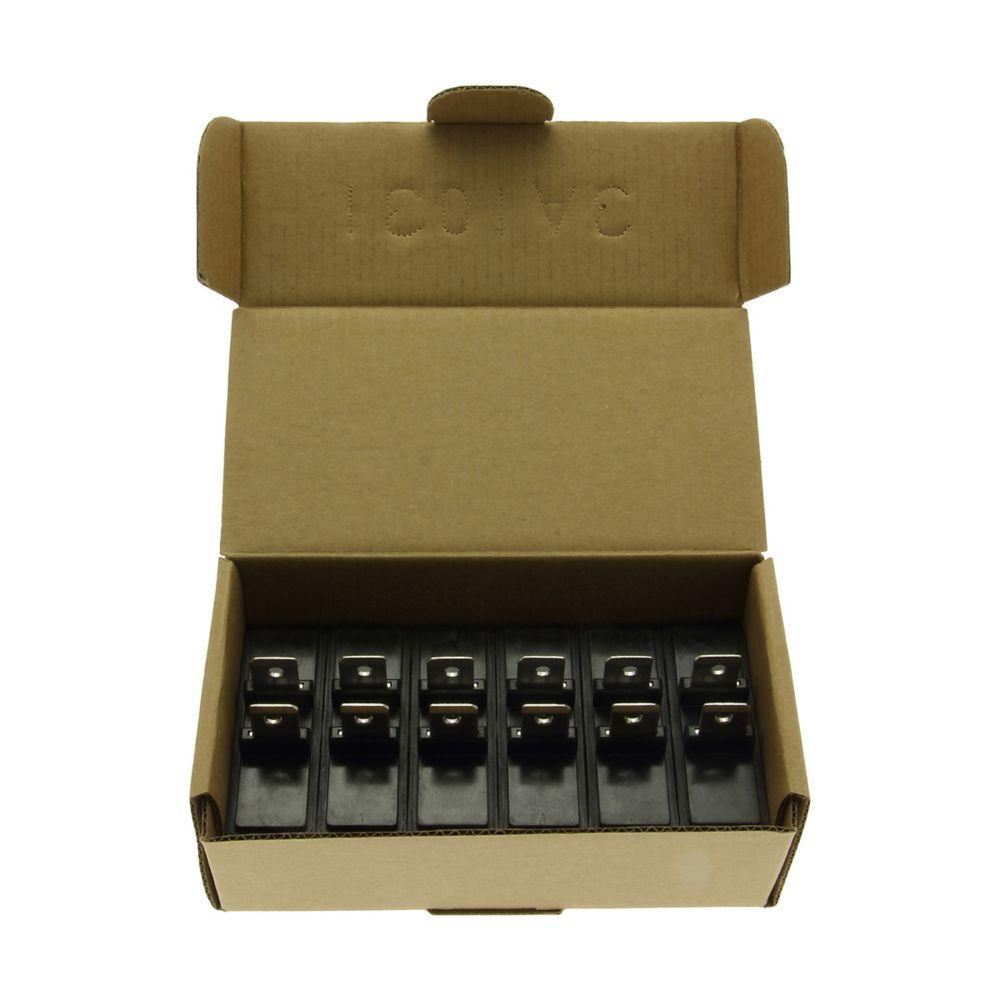

Bussmann TCF80RN Time Delay Fuse
Part Number # TCF80RN
SKU # 2227212
$1352.82 / 6Each
Typical price:$2304.96 / Each
Bussmann TCF80RN Key Features
Brand: Bussmann
Part Number # TCF80RN
SKU #2227212
Amperage Rating: 80, 80 A
Body Type: Square, Square Blade
Class: CF
Frequency Rating: 50/60 Hz
Indicating/Non-Indicating: Non-Indicating
Interrupt Rating: 100/200/300, 100/300 kA, 300/100
Response Time: 10, 10 s at 500%
Series: TCF, TCFRN
Terminal Type: Blade, Radial Blade Plug-In
Type: Current Limiting Inrush Current Withstand, Finger Safe Inrush Current Withstand Time Delay, Finger Safe Inrush Current Withstand Time Delay Non-Indicating
Voltage Rating: 600 VAC, 300 VDC, 600 VAC/300 VDC
Color: Black
Material: Glass Filled Polyethersulfone
Mounting type: Chassis/DIN Rail, DIN Rail
Manufacturer Name: Eaton
UNSPSC: 39121606
UPC: 00051712236171
$1352.82 / 6Each
Typical price:$2304.96 / Each
- Bussmann CUBEFuse Cartridge Fuse, Finger Safe Inrush Current Withstand Time Delay Non-Indicating, Series: TCFRN, 80 A, 600 VAC/300 VDC, 100/300 kA Interrupt, Class: CF, 50/60 Hz, 10 s at 500% Response, Blade Terminal, Chassis/DIN Rail Mount, Square Blade Body Type, Dual Element, Glass Filled Polyethersulfone, Black, 3 in L x 1 in W x 1 in H Body Size
TCF80RN Application
Commercial/Institutional Buildings/structures, Power Distribution and Control, Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger safe systems Applications, Safety and Security Systems, Stationary Machinery and Equipment Outside FactoryTCF80RN Item Features
- 10 s minimum at 500% rated current response time
- 300 kA rms symmetrical, 200 kA rms symmetrical, 100 kA DC rated interrupt rating
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Smallest footprint of any class CC, J, T or RK fuse provides substantial space savings and installation flexibility
- IEC 60529 and finger safe rating provides enhanced workplace safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCF80RN Standards
CE Certified|CSA 1422- 02/File No. 53787|IEC 60529|RoHS Compliant|UL File No. E4273|UL Guide JFHRSKU #2227212Part Number #TCF80RNUNSPSC39121606UPC00051712236171
