Part Number # TCFH30N
SKU # 2179254
Image Disclaimers Message
TCFH30N

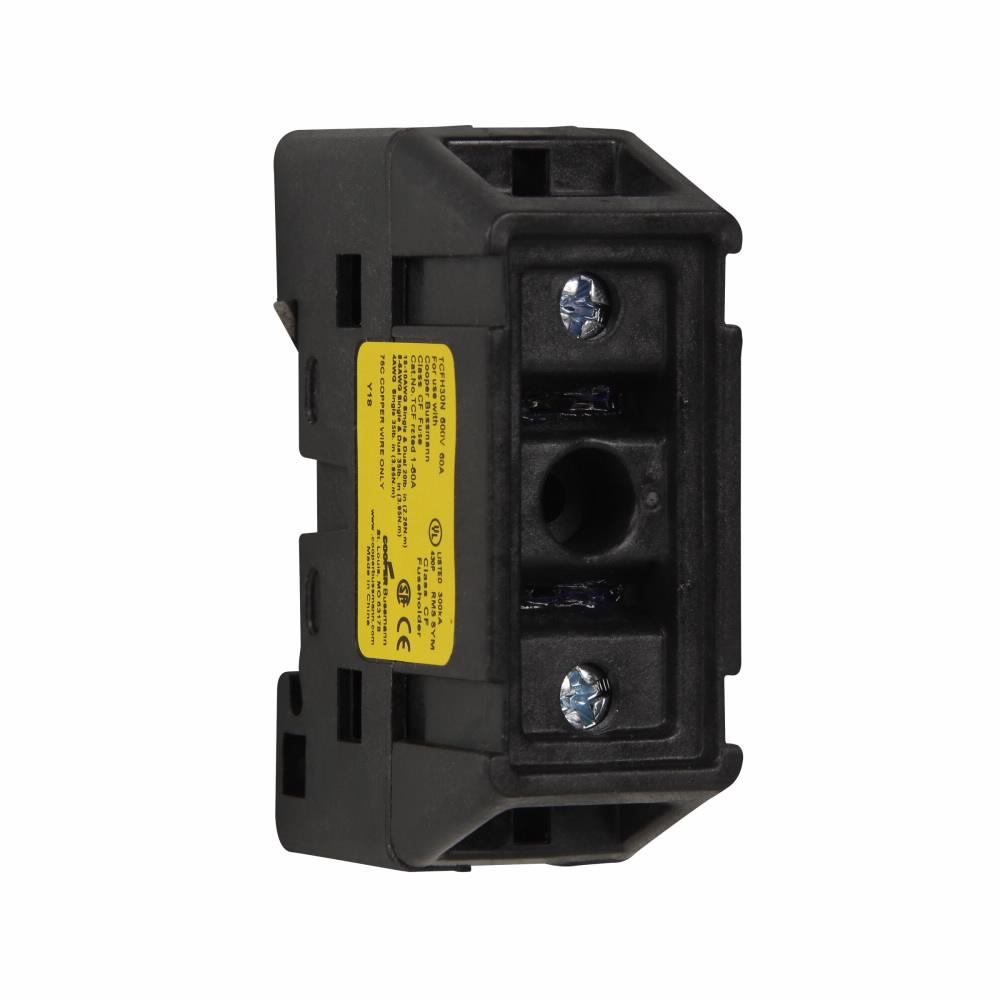

Bussmann TCFH30N Fuse Holder
Part Number # TCFH30N
SKU # 2179254
$285.96 / 12Each
Typical price:$487.20 / Each
Bussmann TCFH30N Key Features
| Brand: | Bussmann |
|---|---|
| Part Number # : | TCFH30N |
| SKU #: | 2179254 |
| Amperage Rating: | 30, 30 A |
| Class: | CF |
| Dimensions: | 2.3 in L x 0.75 in W x 1.25 in H, 2.3 in L x 0.76 in W x 1.357 in H |
| Number of Poles: | 1 |
| Series: | TCFH |
| Suitable For Use With: | CUBE Fuse CF and J and Low-Peak Fuse, CUBE Fuse™ CF and J and Low-Peak™ Fuse, CUBEFuse™ Class CF and Class J and Low-Peak™ Fuse, Low-Peak™ CUBEFuse™ Finger Safe Dual Element Fuse |
| Temperature Rating (Degrees F): | -40 to 176, -40 to 176 deg F, -40 to 80 |
| Type: | Finger Safe Non-Indicating, Inrush Current Withstand |
| Wire Size: | 10 to 8, 18 to 8, 18 to 8 AWG |
| Color: | Gray |
| Connection type: | Pressure Plate |
| Material: | Glass Filled Polyethersulfone |
| Mounting type: | Chassis/DIN Rail |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121624 |
| UPC: | 00051712223485 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$285.96 / 12Each
Typical price:$487.20 / Each
Quantity:
- Bussmann CUBEFuse Fuse Holder, Finger Safe Non-Indicating, Series: TCFH, 600 V AC/300 V DC, 30 A, 1 Pole, Class: CF, Pressure Plate, 18 to 8 AWG Wire, Chassis/DIN Rail Mount, -40 to 176 deg F, For Use With: CUBE Fuse CF and J and Low-Peak Fuse, Glass Filled Polyethersulfone, Gray, 2.3 in L x 0.76 in W x 1.357 in H
TCFH30N Application
Electrical Panel Boards, Machinery Disconnects, Industrial Control and Required Finger Safe System Applications, Safety and Security SystemsTCFH30N Item Features
- Finger safe construction for enhanced electrical safety
- 30, 60 and 100 A ratings help prevent over fusing by rejecting higher fuse amperage ratings
- Smallest fuse and holder footprint of any class fuse installation including class J, CC, T and RK
- 35 mm DIN rail or panel mount for flexible installation
- All holders dovetail together to easily achieve the required number of poles
- Dual wire rated terminals for wiring ease
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCFH30N Standards
CE Certified|CSA 6225-01|CSA File No. 47235|cULus Listed|IEC 60529|RoHS Compliant|UL File No. E14853SKU #2179254Part Number #TCFH30NUNSPSC39121624UPC00051712223485
