Brand: Bussmann
TCFH60N

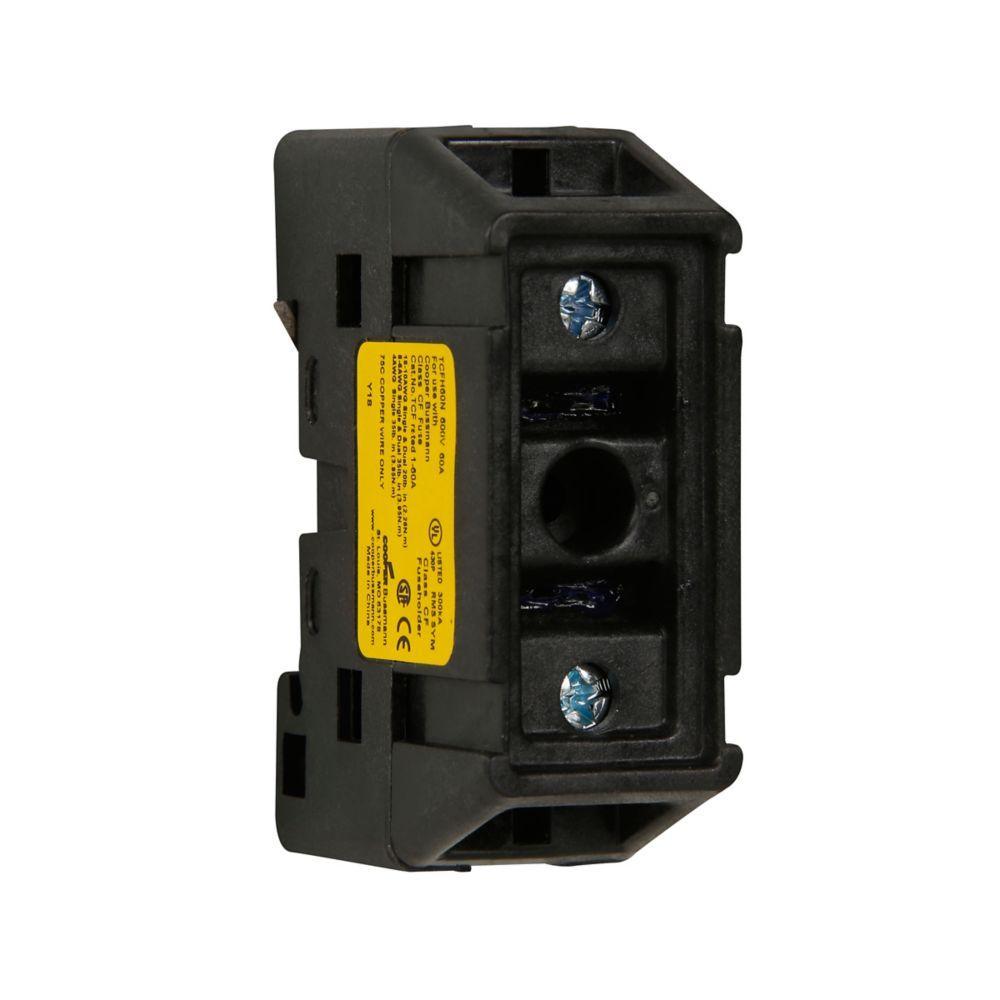

Bussmann TCFH60N Fuse Holder
Part Number # TCFH60N
SKU # 2177275
$404.40 / 12Each
Typical price:$689.04 / Each
Bussmann TCFH60N Key Features
Brand: Bussmann
Part Number # TCFH60N
SKU #2177275
Amperage Rating: 60 A
Class: CF
Dimensions: 2.6 in L x 1.03 in W x 1.6 in H
Number of Poles: 1
Suitable For Use With: Low Peak Finger Safe CUBE Fuse, Low Peak Finger Safe CUBE Fuse™, Low Peak Finger Safe CUBEFuse™, Low-Peak™ CUBEFuse™ Finger Safe Fuse
Temperature Rating (Degrees F): -40 to 80
Type: Modular
Voltage Rating: 600, 600 VAC/VDC
Wire Size: 14 to 4 AWG, 10 to 6 AWG, 14 to 4 AWG/10 to 6 AWG, 18 to 6
Color: Gray
Material: Glass Filled PBT, Glass Filled Polybutylene Terephthalate
Mounting type: Panel
Manufacturer Name: Eaton
UNSPSC: 39121624
UPC: 00051712223492
$404.40 / 12Each
Typical price:$689.04 / Each
- Bussmann Fuse Holder, Modular, 600 VAC/VDC, 60 A, 1 Pole, Class: CF, 14 to 4 AWG, 10 to 6 AWG Wire, Panel Mount, For Use With: Low Peak Finger Safe CUBE Fuse, Glass Filled Polybutylene Terephthalate, 2.6 in L x 1.03 in W x 1.6 in H
TCFH60N Application
Electrical Panel Boards, Industrial Control, Machinery Disconnects and Required Finger Safe Systems Applications, Safety and Security SystemsTCFH60N Item Features
- 14 to 4 AWG copper single, 10 to 6 AWG copper dual wire
- Separate overload and short circuit elements provide time delay for sizing of high inrush loads linked with class J current limitation
- Selective co-ordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit
- Smallest footprint of any class CC, J, T or RK fuse provides substantial space savings and installation flexibility
- IEC 60529 and finger safe rating provides enhanced workplace safety
- https://www.youtube.com/watch?v=YMvqUyoETXk
TCFH60N Standards
CE Certified|CSA 1422- 02|CSA 6225-01|RoHS Compliant|UL File No. 47235|UL File No. 53787|UL File No. E214079|UL File No. E4273|UL Guide IZND|UL Guide JFHRSKU #2177275Part Number #TCFH60NUNSPSC39121624UPC00051712223492
