Part Number # 941122
SKU # 2387741
941122

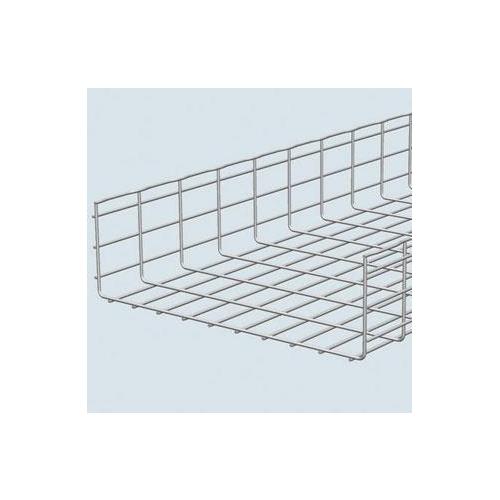

Cablofil 941122 CF150 Wire Mesh Cable Tray, 120 in L x 12 in W, 1008 Carbon Steel
Part Number # 941122
SKU # 2387741
Cablofil 941122 Key Features
| Brand: | Cablofil |
|---|---|
| Part Number # : | 941122 |
| SKU #: | 2387741 |
| Finish: | Black Painted |
| Overall Height: | 6, 6 in |
| Rung Spacing: | 3.94, 3.94 in |
| Series: | CF150 |
| Wire Size: | 5.9, 5.9 mm |
| Country of origin: | US |
| Length: | 120, 120 in |
| Material: | 1008 Carbon Steel |
| Width: | 12, 12 in |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39131704 |
| UPC: | 00800388009226 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Cablofil 941122 CF150 Wire Mesh Cable Tray, 120 in L x 12 in W, 1008 Carbon Steel
Brand: Cablofil
Part Number: 941122
Cablofil Wire Mesh Cable Tray, Series: CF150, 12 in Width, 120 in Length, 3.94 in Rung Spacing, 6.53 in Siderail Height, 6 in Overall Height, 1008 Carbon Steel, 5.9 mm Wire, Black Painted
Additional Description: CAB -941122 CF150/300BL - CABLOFIL CABLE TRAY
Catalog Description:
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy; three qualities which make Cablofil Wiremesh Cable Tray system preferred by installers. Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease of creating fittings, carried out on site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation.
941122 Application
Cable Management Applications941122 Item Features
- Special Safe-T-Edge - protects installers from sharp ends while it prevents cables from fraying
- Wire mesh is smooth and round - to resist dirt and dust build-up
- Standard 10 in lengths - straight and easy to handle
- Large mesh size (2 in wide by 4 in long ) - allows cable installers to route cables in and out at any point without cutting the tray
- 1 in to 6 in high flange side of the tray - prevents cables from falling off
- Dimensions are nominal - other sizes available on request
- Available in the following finishes, Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted
- http://www.youtube.com/watch?v=f9WkhSB9vq4
941122 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|NEMA VE-1|CSA C22.2 No. 126|ECCN File No. EAR99SKU #2387741Part Number #941122UNSPSC39131704UPC00800388009226
Image provided may only be a representation of final product and may include optional equipment
