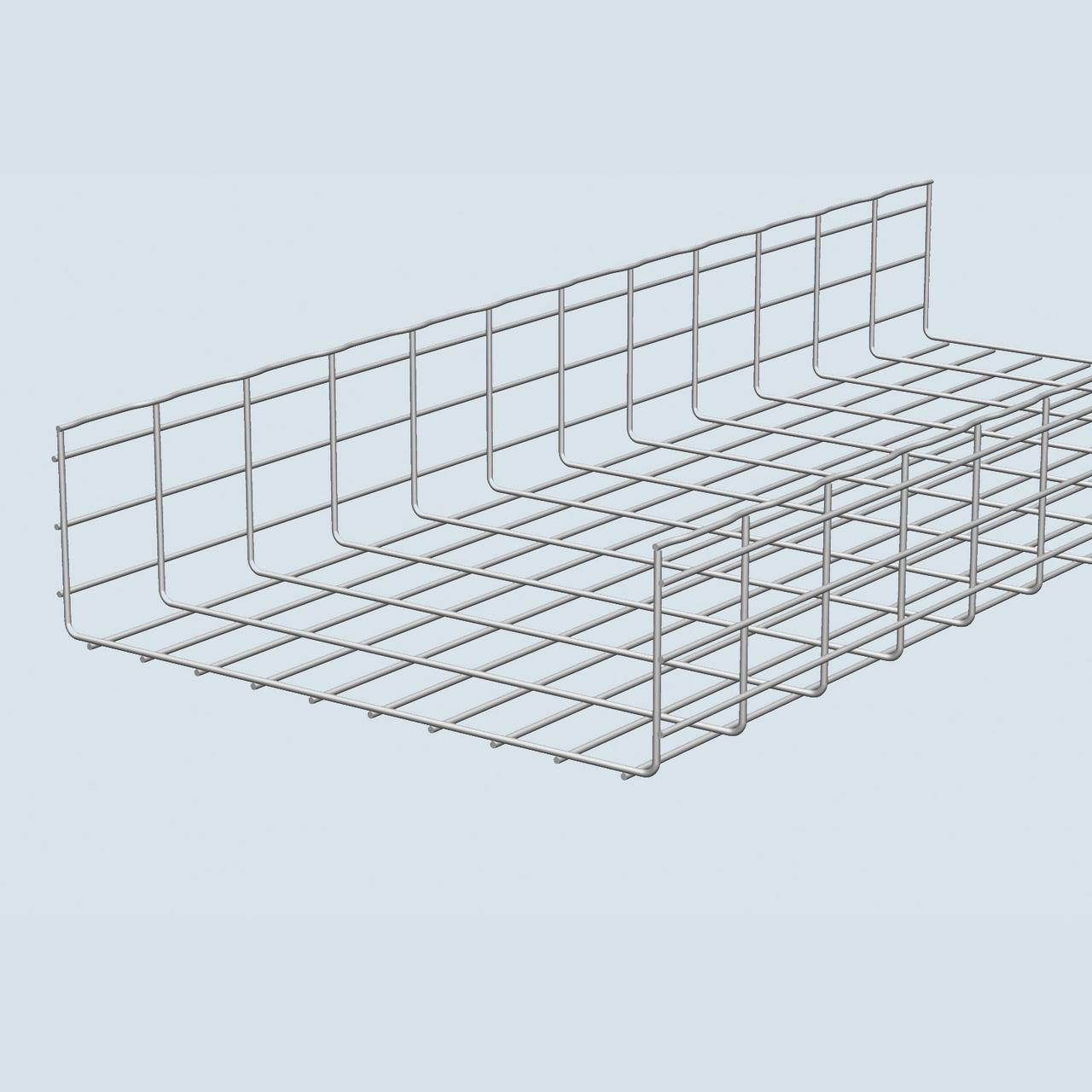

Cablofil 961 CF150 Wire Mesh Cable Tray, 120 in L x 12 in W, 1008 Carbon Steel
Part Number # 961
SKU # 2387739
Cablofil 961 Key Features
| Brand: | Cablofil |
|---|---|
| Part Number # : | 961 |
| SKU #: | 2387739 |
| Finish: | Electro-Plated Zinc |
| Overall Height: | 6, 6 in |
| Rung Spacing: | 3.94, 3.94 in |
| Series: | CF150 |
| Wire Size: | 5.9, 5.9 mm |
| Country of origin: | MX, US |
| Length: | 120, 120 in |
| Material: | 1008 Carbon Steel |
| Width: | 12, 12 in |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39131704 |
| UPC: | 00800388000988 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Cablofil 961 CF150 Wire Mesh Cable Tray, 120 in L x 12 in W, 1008 Carbon Steel
Brand: Cablofil
Part Number: 961
Cablofil Wire Mesh Cable Tray, Series: CF150, 12 in Width, 120 in Length, 3.94 in Rung Spacing, 6.53 in Siderail Height, 6 in Overall Height, 1008 Carbon Steel, 5.9 mm Wire, Electro-Plated Zinc
Additional Description: CAB -961 CF150/300EZ - CABLOFIL CABLE TRAY
Catalog Description:
Cablofil Wiremesh Cable Tray concept based upon performance, safety and economy: three qualities which make Cablofil Wiremesh Cable Tray system preferred by installers. Cablofil adapts to the most complex configurations, and its structure gives maximum strength for minimum weight. The ease of creating fittings, carried out on site, as well as the wide range of unique and universal accessories gives complete freedom in routing combined with exceptionally fast installation. View Catalog number image for example on correct catalog numbering
961 Application
Cable Management and Indoor Applications961 Item Features
- Special Safe-T-Edge - protects installers from sharp ends while it prevents cables from fraying
- Wire mesh is smooth and round - to resist dirt and dust build-up
- Standard 10 in lengths - straight and easy to handle
- Large mesh size (2 in wide by 4 in long ) - allows cable installers to route cables in and out at any point without cutting the tray
- Dimensions are nominal - other sizes available on request
- Available in the following finishes, Electro Zinc, Hot Dipped Galvanized, Stainless Steel 316L, Black Painted, and other Painted
- http://www.youtube.com/watch?v=f9WkhSB9vq4
961 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|cUL Listed|NEMA VE-1|CSA C22.2 No. 126|ECCN File No. EAR99SKU #2387739Part Number #961UNSPSC39131704UPC00800388000988
Image provided may only be a representation of final product and may include optional equipment
