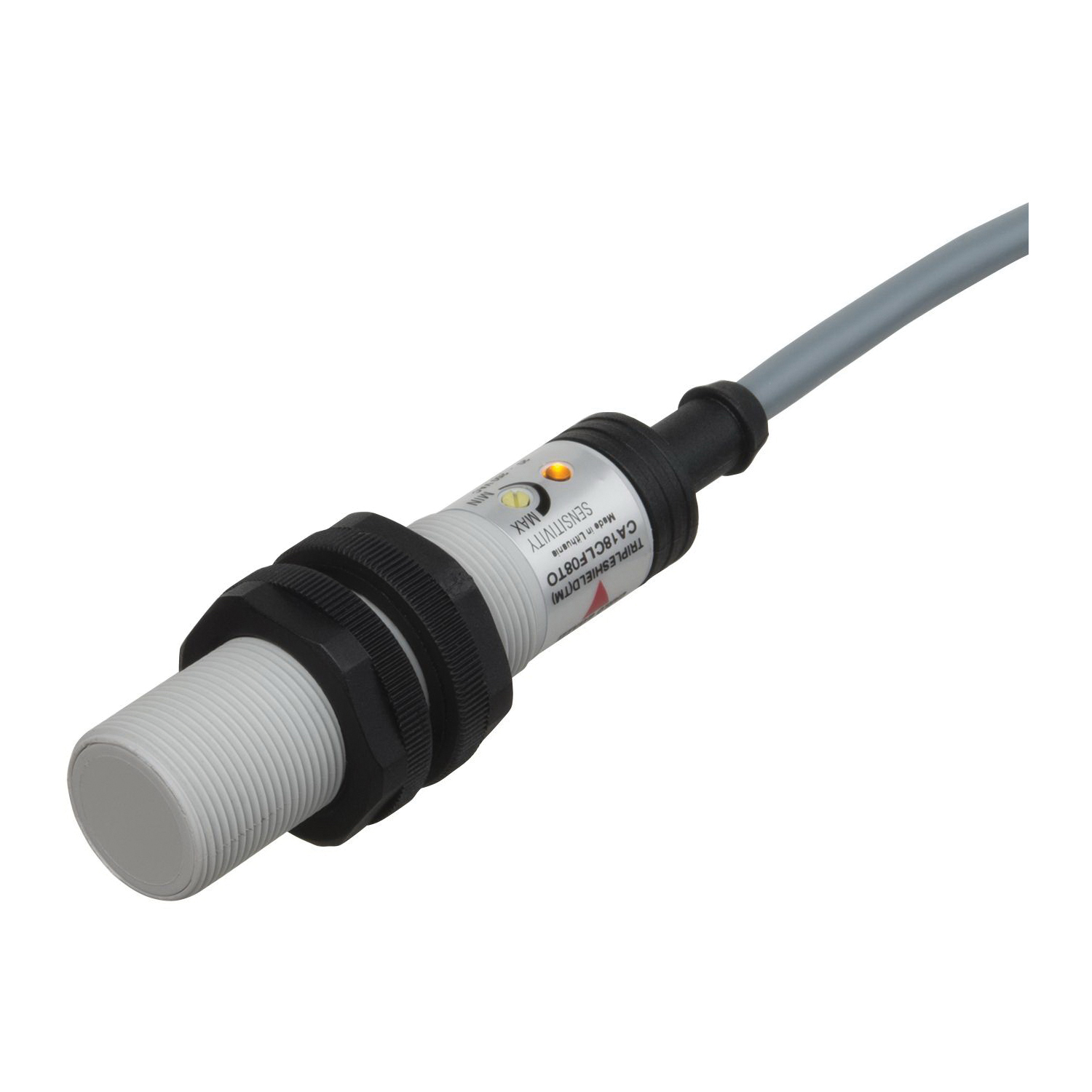

Carlo Gavazzi CA18CLF08TO Proximity Sensor
Part Number # CA18CLF08TO
SKU # 2379684
Carlo Gavazzi CA18CLF08TO Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | CA18CLF08TO |
| SKU #: | 2379684 |
| Amperage Rating: | 10 mA |
| Enclosure Type: | NEMA 1/2/12/IP67 |
| Environmental Conditions: | -40 to 185 deg F Storage Temperature |
| Frequency Response: | 10 Hz |
| Sensing Distance: | 8 m |
| Series: | CA Series |
| Temperature Rating (Degrees F): | -13 to 176 deg F |
| Material: | Polybutylene Terephthalate |
| Mounting type: | Flush |
| Output type: | 2-Wire SCR-NO, SCR-NO |
| Manufacturer Name: | Carlo Gavazzi |
| UNSPSC: | 41111926 |
| UPC: | 05709870256764 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi CA18CLF08TO Proximity Sensor
Brand: Carlo Gavazzi
Part Number: CA18CLF08TO
Carlo Gavazzi Proximity Sensor, Series: CA, 8 m Sensing Distance, <=5 % Accuracy, 2-Wire SCR-NO Output, 20 to 250 VAC, 10 mA, 10 Hz Frequency Response, NEMA 1/2/12/IP67 Enclosure, -13 to 176 deg F, Flush Mounting, Polybutylene Terephthalate, Environmental Conditions: -40 to 185 deg F Storage Temperature
Additional Description: CAGA-CA18CLF08TO CAP PROX PL M18 SCR NO CAB
Catalog Description: Capacitive Proximity Sensor, Flush mountable, Sensing Range 8mm, Adjustable 3-8mm, Power Supply 20-250VAC, SCR Output, N.O., Cable PVC, Housing M18 x 71,5mm, Tripleshield, IP67
CA18CLF08TO Application
For detection not only of the wood pellets in pellet burners but also the density of the wood pelletsCA18CLF08TO Item Features
- Featuring TRIPLESHIELD sensor protection
- Rated operational voltage - 20-250 VAC
- Adjustable sensing distance 3 to 8 mm or 3 to 12 mm
- Make and break switching function
- LED indication
- High noise immunity
- Plug and cable versions
- DC versions in the same housing
- Capacitive sensor
- Cylindrical housing with threaded barrel
- 18 mm housing diameter
CA18CLF08TO Standards
CSA Certified|UL ListedSKU #2379684Part Number #CA18CLF08TOUNSPSC41111926UPC05709870256764
