Part Number # CA30CAN25BPM1IO
SKU # 2355092
CA30CAN25BPM1IO

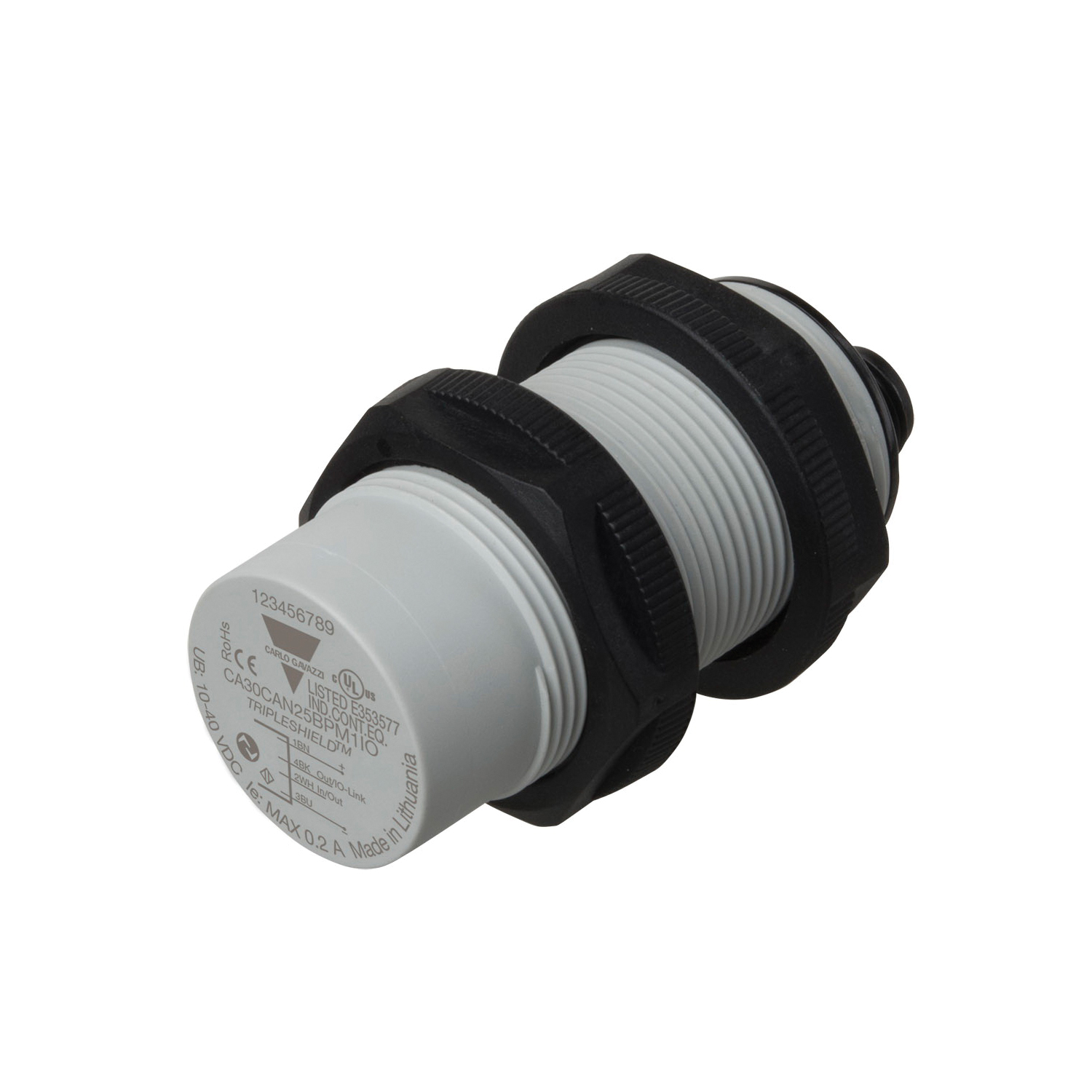

Carlo Gavazzi CA30CAN25BPM1IO Proximity Sensor
Part Number # CA30CAN25BPM1IO
SKU # 2355092
Carlo Gavazzi CA30CAN25BPM1IO Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | CA30CAN25BPM1IO |
| SKU #: | 2355092 |
| Amperage Rating: | 20 mA |
| Enclosure Type: | NEMA 1/2/4/4X/5/6/6P/12/IP67/IP68/IP69K |
| Environmental Conditions: | 35 to 95% Humidity, -40 to 185 deg F Storage Temperature |
| Frequency Response: | 50 Hz |
| Sensing Distance: | 25 m |
| Sensing Method: | Axial |
| Series: | CA Series |
| Temperature Rating (Degrees F): | -22 to 185 deg F |
| Connection type: | Plug |
| Material: | Polybutylene Terephthalate |
| Mounting type: | Non-Flush |
| Output type: | 4-Wire NPN/PNP-NC/NO, NPN/PNP NO-NC |
| Manufacturer Name: | Carlo Gavazzi |
| UNSPSC: | 41111926 |
| UPC: | 00009870394053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi CA30CAN25BPM1IO Proximity Sensor
Brand: Carlo Gavazzi
Part Number: CA30CAN25BPM1IO
Carlo Gavazzi Proximity Sensor, Series: CA, Axial Sensing Method, 25 m Sensing Distance, <=5 % Accuracy, 4-Wire NPN/PNP-NC/NO Output, 10 to 40 V, 20 mA, 50 Hz Frequency Response, Plug Connection, NEMA 1/2/4/4X/5/6/6P/12/IP67/IP68/IP69K Enclosure, -22 to 185 deg F, Non-Flush Mounting, Polybutylene Terephthalate, Environmental Conditions: 35 to 95% Humidity, -40 to 185 deg F Storage Temperature
Additional Description: CAGA-CA30CAN25BPM1IO CAP PROX PL M30 NON-FLUSH IO-LINK, PLUG
Catalog Description: Capacitive Proximity Sensor, Non-flush mountable, Sensing Range 25mm, Adjustable 4-30mm, Power Supply 10-40VDC, NPN/PNP Output, N.O./N.C., IO-Link Connector M12, Housing M30 x 61mm, 4th Generation Tripleshield, Improved EMC performances, ECOLAB, IP67 IP69K
CA30CAN25BPM1IO Application
For detection not only of the wood pellets in pellet burners but also the density of the wood pelletsCA30CAN25BPM1IO Item Features
- Sensing distance and hysteresis
- Sensing modes - single point or two point or window mode
- Timer functions - on delay, off delay, one shot leading edge or trailing edge
- Logic functions such as - AND, OR, X-OR and SR-FF
- External input
- Logging functions - maximum temperatures, minimum temperatures, operating hours, operating cycles, power cycles, minutes above maximum temperature, minutes below minimum temperature and more
- Capacitive sensor
- Cylindrical housing with threaded barrel
- 30 mm housing diameter
- NPN, PNP, push-pull, external input (only pin 2) or external teach input (only pin 2) selectable function
- M12, 4-pole connector
CA30CAN25BPM1IO Standards
CSA Certified|cULus Listed|UL ListedSKU #2355092Part Number #CA30CAN25BPM1IOUNSPSC41111926UPC00009870394053
Image provided may only be a representation of final product and may include optional equipment
