Part Number # CC22SD24
SKU # 2381690
Image Disclaimers Message
CC22SD24

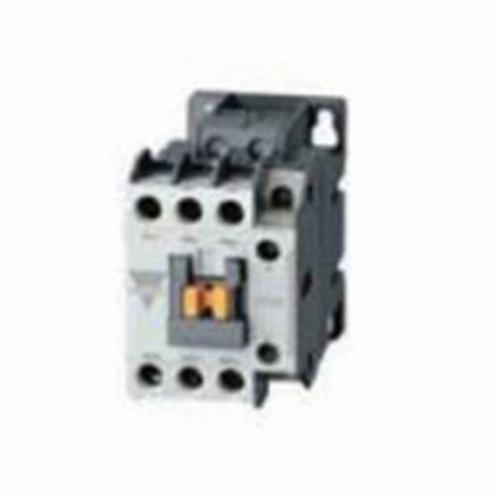

Carlo Gavazzi CC22SD24 DC Type Magnetic Midi Contactor, 24 VDC V Coil, 22 A, 3 Poles
Part Number # CC22SD24
SKU # 2381690
Carlo Gavazzi CC22SD24 Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | CC22SD24 |
| SKU #: | 2381690 |
| Coil Voltage: | 24, 24 VDC |
| Contact Rating: | 690, 690 VAC |
| Dimensions: | 73.5 mm H x 45 mm W x 118 mm D |
| Frequency Rating: | 50, 50 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Series: | CC Series |
| Size: | NEMA 1 |
| Terminal Type: | Screw |
| Type: | DC Type Magnetic |
| Mounting type: | DIN Rail/Back Panel |
| UNSPSC: | 39121324 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi CC22SD24 DC Type Magnetic Midi Contactor, 24 VDC V Coil, 22 A, 3 Poles
Carlo Gavazzi Midi Contactor, DC Type Magnetic, Series: CC Series, 24 VDC Coil, 22 A Maximum Load Current, 3 Pole, 50 Hz Frequency, 1NO-1NC Auxiliary Contacts, 690 VAC Contact, NEMA 1 Size, Screw Terminal, DIN Rail/Back Panel Mounting, 73.5 mm H x 45 mm W x 118 mm D Dimensions
Additional Description: CAGA-CC22SD24 3P CONT S 24V DC 1NO1NC
Catalog Description: Three-pole IEC style 22Amps rated (AC3 at 440VAC) contactor with screw terminals, 24 VDC coil and one normally open / normally closed auxiliary contact.
CC22SD24 Item Features
- Standard arrangement auxiliary contacts
- Four terminals for coil connection
- Easily interchangeable coils (in the event another coil voltage is required)
- Each contactor comes standard with a minimum of one auxiliary contact
SKU #2381690Part Number #CC22SD24UNSPSC39121324UPC
