Part Number # CC32SD24
SKU # 2303131
CC32SD24

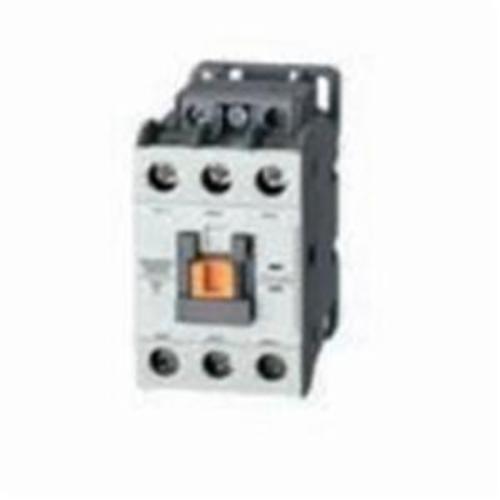

Carlo Gavazzi CC32SD24 Midi Contactor
Part Number # CC32SD24
SKU # 2303131
Carlo Gavazzi CC32SD24 Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | CC32SD24 |
| SKU #: | 2303131 |
| Contact Rating: | 690, 690 V AC, 690 VAC |
| Dimensions: | 83 mm H x 69 mm W x 118 mm D |
| Series: | CC Series |
| Size: | NEMA 1 |
| Type: | DC Type Magnetic |
| Mounting type: | DIN Rail/Back Panel |
| Manufacturer Name: | Carlo Gavazzi |
| UNSPSC: | 39121324 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi CC32SD24 Midi Contactor
Brand: Carlo Gavazzi
Part Number: CC32SD24
Carlo Gavazzi Midi Contactor, DC Type Magnetic, Series: CC Series, 24 VDC Coil, 32 A Maximum Load Current, 3 Pole, 50 Hz Frequency, 2NO-2NC Auxiliary Contacts, 690 VAC Contact, NEMA 1 Size, Screw Terminal, DIN Rail/Back Panel Mounting, 83 mm H x 69 mm W x 118 mm D Dimensions
Additional Description: CAGA-CC32SD24 3P CONT S 24V DC 2NO2NC
Catalog Description: Three-pole IEC style 32Amps rated (AC3 at 440VAC) contactor with screw terminals, 24 VDC coil and two normally open / normally closed auxiliary contacts.
CC32SD24 Application
Overloads or Manual Motor Starter ApplicationsCC32SD24 Item Features
- Standard arrangement auxiliary contacts
- Four terminals for coil connection
- Easily interchangeable coils (in the event another coil voltage is required)
- Each contactor comes standard with a minimum of one auxiliary contact
CC32SD24 Standards
cULus Listed|CE Certified|CSA Certified|RoHS CompliantSKU #2303131Part Number #CC32SD24UNSPSC39121324UPC

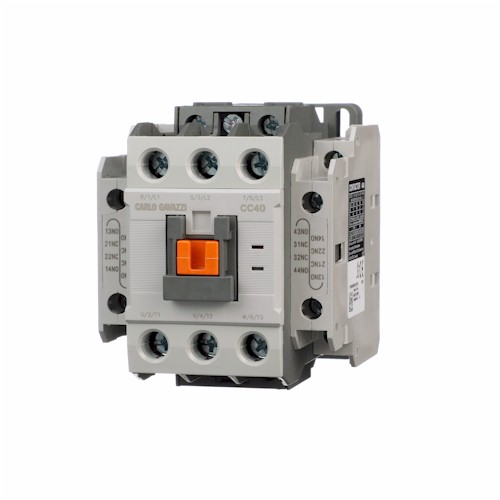

Image provided may only be a representation of final product and may include optional equipment
