EC3016TBAPL

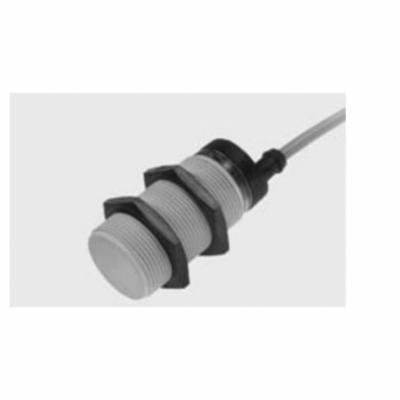

Carlo Gavazzi EC3016TBAPL Capacitive Proximity Switch
Part Number # EC3016TBAPL
SKU # 2284571
$1759.95 / 5Each
Typical price:$2100.00 / Each
Carlo Gavazzi EC3016TBAPL Key Features
Brand: Carlo Gavazzi
Part Number # EC3016TBAPL
SKU #2284571
Accuracy: <=5, <=5 %
Amperage Rating: 500, 500 mA
Contact Configuration: NC-NO, NC/NO
Enclosure Type: IP67
Frequency Response: 10, 10 Hz
Sensing Distance: 2 to 16, 2 to 16 mm
Sensing Method: Flush
Series: EC Series
Size: 79 mm L x 28 mm H
Temperature Rating (Degrees F): -13 to 176, -13 to 176 deg F
Voltage Rating: 20 to 250, 20 to 250 VAC
Connection type: Cable
Material: Thermoplastic Polyester
Output type: SCR
UNSPSC: 39122230
UPC: 05709870217581
$1759.95 / 5Each
Typical price:$2100.00 / Each
Carlo Gavazzi EC3016TBAPL Capacitive Proximity Switch
Carlo Gavazzi Capacitive Proximity Switch, Series: EC Series, Flush Sensing Method, 2 to 16 mm Sensing Distance, <=5 % Accuracy, SCR Output, NC-NO Contact Configuration, 20 to 250 VAC, 500 mA, 10 Hz Frequency Response, Cable Connection, 79 mm L x 28 mm H Size, IP67 Enclosure, -13 to 176 deg F, Thermoplastic Polyester
Additional Description: CAGA-EC3016TBAPL CAP PROX TPLSHLD M30 EXTD CBL
Catalog Description: Capacitive Proximity Sensor, Flush mountable, Sensing Range 16mm, Adjustable 2-16mm, Power Supply 20-250VAC, SCR output N.C.+N.O., Cable PVC, Housing M30 x 61,6mm, Tripleshield, IP67
EC3016TBAPL Item Features
- Featuring TRIPLESHIELD sensor protection
- Adjustable sensing distance 2 to 16 mm or 4 to 25 mm
- Make and break switching function
- LED indication
- High noise immunity
- DC versions in the same housing
- M30 Dia housing
- Adjustable multiturn pot meter sensitivity
- 0.9 x Sn = Sr = 1.1 x S effective operating distance
- 0.8 x Sr Sn > 1.2 x Sr usable operating distance
- 4 to 20% of sensing distance hysteresis
- 10% ripple
- < 2.5 A (max 20 ms) short-time rated operational current
- 10 mA minimum load current
- < 2.5 mA at 240 VAC and 1.7 mA at 120 VAC OFF state current
- 10 VAC voltage drop
- Transients protection
- LED yellow indication for output ON
- -40 to 185 deg F storage temperature
- Gray thermoplastic polyester housing body
