Part Number # IA18ESF05UC
SKU # 2315866
Image provided may only be a representation of
final product and may include optional equipment
IA18ESF05UC

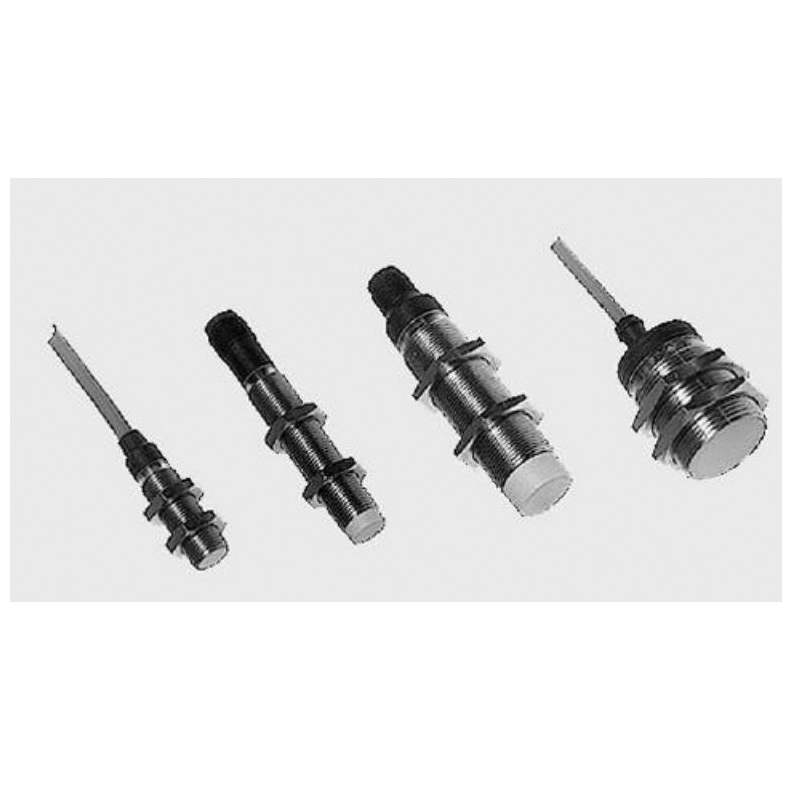

Carlo Gavazzi IA18ESF05UC Inductive Proximity Sensor
Part Number # IA18ESF05UC
SKU # 2315866
Carlo Gavazzi IA18ESF05UC Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | IA18ESF05UC |
| SKU #: | 2315866 |
| Enclosure Type: | IP67 |
| Frequency Response: | 500, 500 Hz |
| Sensing Distance: | 5, 5 mm |
| Sensing Method: | Proximity |
| Sensing Position: | Front |
| Temperature Rating (Degrees F): | -25 to 70, -25 to 70 deg C |
| Type: | Type IA Short |
| Connection type: | Cable |
| Material: | Stainless Steel |
| Manufacturer Name: | Carlo Gavazzi |
| UNSPSC: | 41111926 |
| UPC: | 05709870248233 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi IA18ESF05UC Inductive Proximity Sensor
Brand: Carlo Gavazzi
Part Number: IA18ESF05UC
Carlo Gavazzi Inductive Proximity Sensor, Type IA Short, Proximity Sensing Method, 5 mm Sensing Distance, Front Sensing Position, 8.2 VDC, 500 Hz Frequency Response, Cable Connection, IP67 Enclosure, -25 to 70 deg C, Stainless Steel
Additional Description: CAGA-IA18ESF05UC IND PROX STEEL M18 NAMUR CBL
Catalog Description: Inductive proximity sensor, M18 Stainless steel, 2m cable, Sn 5mm, Flush mount, Short body, Namur NC, Supply voltage 7-9Vdc, Max output current 9,35 mA, Max switching frequency 500Hz, Operating temperature -25C - +70C, IP67.
IA18ESF05UC Item Features
- Stainless steel housing, cylindrical
- Diameter - M12, M18, M30
- Short or long versions
- Sensing distance - 2 to 15 mm
- Output - NAMUR EN 50 227
- Protection - Reverse polarity
- LED-indication
- 2 m cable or plug M12
- M18 housing
IA18ESF05UC Standards
UL Listed|CSA Certified|CE Marked|RoHS Compliant|PROP65: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2315866Part Number #IA18ESF05UCUNSPSC41111926UPC05709870248233
