Part Number # RGC1A23D20KGU
SKU # 2228040
RGC1A23D20KGU
Carlo Gavazzi RGC1A23D20KGU Solid State Relay
Part Number # RGC1A23D20KGU
SKU # 2228040
$569.30 / 10Each
Typical price:$660.00 / Each
Carlo Gavazzi RGC1A23D20KGU Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | RGC1A23D20KGU |
| SKU #: | 2228040 |
| Coil Voltage: | 230 V |
| Dimensions: | 0.7 in W x 5.35 in D x 4.33 in H |
| Series: | RGC |
| Manufacturer Name: | Carlo Gavazzi |
| UNSPSC: | 32131001 |
| UPC: | 05350035420522 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$569.30 / 10Each
Typical price:$660.00 / Each
Quantity:
- Carlo Gavazzi Solid State Relay, Series: RGC, 23 A, 45 to 65 Hz Frequency, 230 V Coil, 1 Pole, DIN Rail/Panel Mounting, Box/Screw Terminal, IP20 Enclosure, -40 to 176 deg F, 0.7 in W x 5.35 in D x 4.33 in H Dimensions
RGC1A23D20KGU Application
Plastic Injection Machines, Extrusion Machines, Blow Molding Machines, Thermoformers, Dryers, Electrical Ovens, Fryers, Shrink Tunnels, Air Handling Units, Sterilization Equipment, Climatic Chambers, Ovens and Furnaces and Ambient Heating ApplicationsRGC1A23D20KGU Item Features
- Ratings up to 660 VAC, 85 A at TA 40 deg C
- Up to 18000 A2s for I2t for protection coordination with MCBs
- 100 kA short circuit current rating according to UL 508
- Conformance to railway standards
- Zero cross switching
- 24 to 264 VAC, 800 Vp rated voltage
- 3 to 32 VDC control voltage
- Screw connection for control terminals
- Box clamp connection for power terminals
- SSR configuration
RGC1A23D20KGU Standards
CSA C22.2 No. 14 File No. E172877/NMFT7|CE Certified|cUL Listed|cULus Listed|EAC Certified|EN/IEC 60947-4-2|EN/IEC 60947-4-3|GL Approved|UL 508 File No. E172877/NMFT|VDE 0660-109SKU #2228040Part Number #RGC1A23D20KGUUNSPSC32131001UPC05350035420522

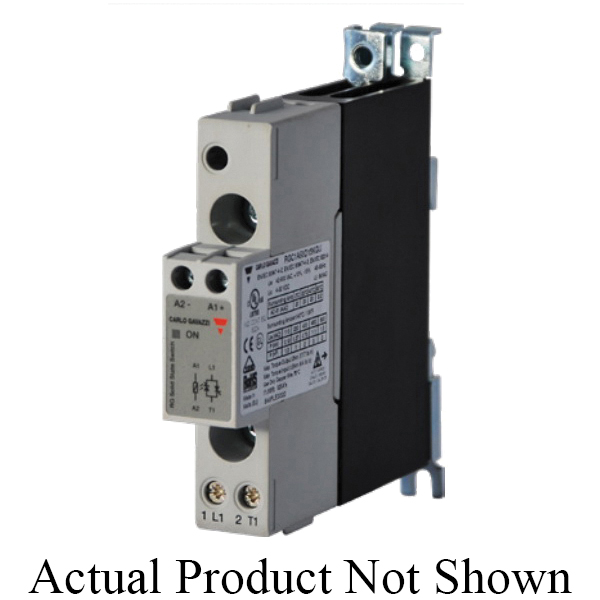

Image provided may only be a representation of final product and may include optional equipment
