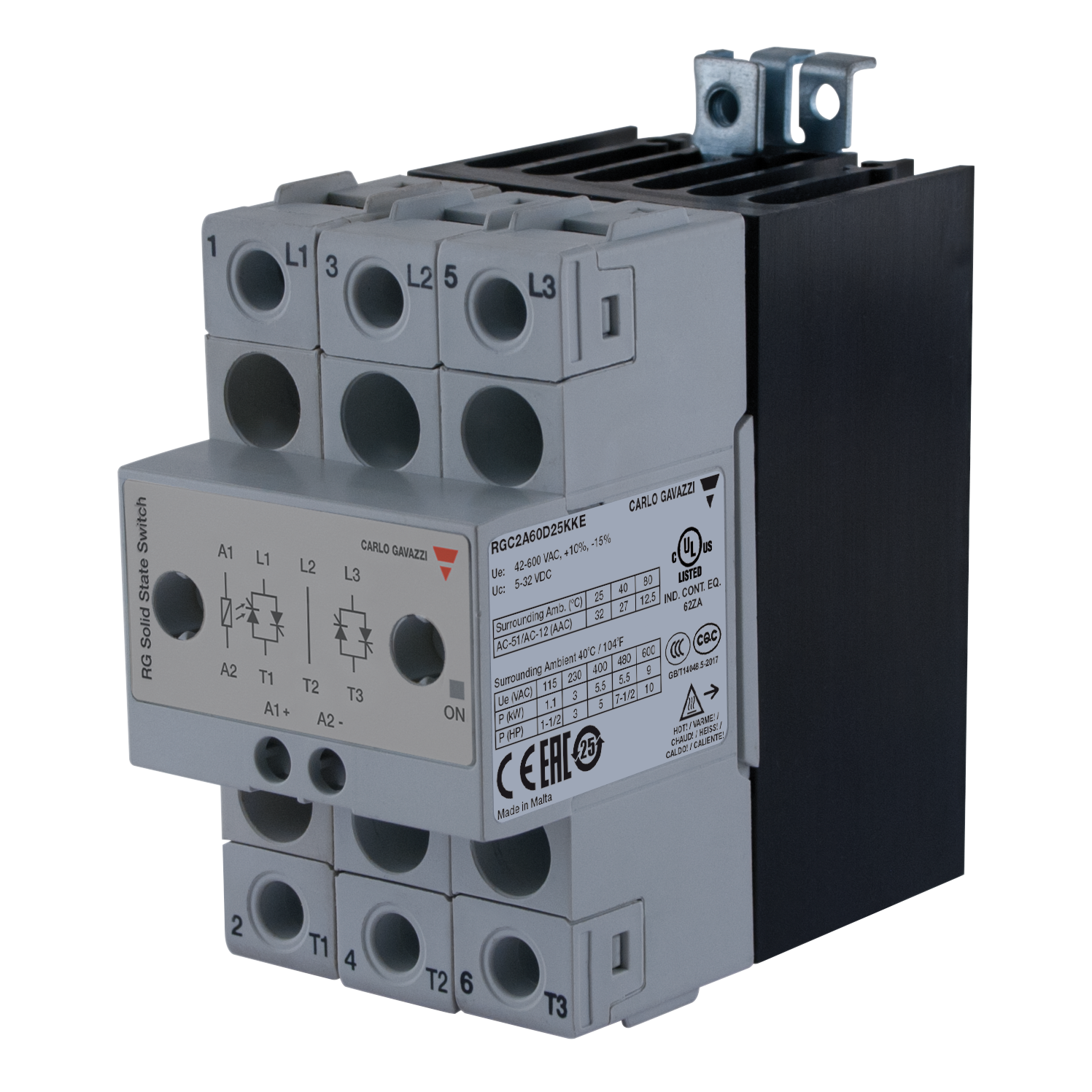

Carlo Gavazzi RGC2A60D25KKE Solid State Relay
Part Number # RGC2A60D25KKE
SKU # 2268024
Carlo Gavazzi RGC2A60D25KKE Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | RGC2A60D25KKE |
| SKU #: | 2268024 |
| Amperage Rating: | 25 A |
| Coil Voltage: | 600 V |
| Dimensions: | 2.13 in W x 3.86 in D x 4.33 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 45 to 65 Hz |
| Number of Poles: | 2 |
| Series: | RGC |
| Temperature Rating (Degrees F): | -40 to 176 deg F |
| Terminal Type: | Screw |
| Mounting type: | DIN Rail |
| UNSPSC: | 32131001 |
| UPC: | 05350035423486 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi RGC2A60D25KKE Solid State Relay
Brand: Carlo Gavazzi
Part Number: RGC2A60D25KKE
Carlo Gavazzi Solid State Relay, Series: RGC, 25 A, 45 to 65 Hz Frequency, 600 V Coil, 2 Pole, DIN Rail Mounting, Screw Terminal, IP20 Enclosure, -40 to 176 deg F, 2.13 in W x 3.86 in D x 4.33 in H Dimensions
Additional Description: CAGA-RGC2A60D25KKE 2P -SSC-DC IN-ZC 600V 3X25A 1200VP-E-SRW IN
Catalog Description: 2-pole DIN-rail mount SSR, Zero-cross switching, Operating voltage (Ue): 42 - 660 Vac (1200 Vp), Rated current (Ie): 25 Aac, Control voltage (Uc): 5 - 32 Vdc, Built-in overvoltage protection
RGC2A60D25KKE Item Features
- 3 phase zero cross switching solid state contactor for 3 or 2-pole switching
- Ratings up to 660 VAC 75 A AC/pole (RGC2A), 65 A AC/pole (RGC3A) at TA 40 deg C
- Zero cross switching
- 42 to 660 VAC, 1200 Vp rated voltage
- 5 to 32 VDC control voltage
- Screw connection for control terminals
- Screw connection for power terminals
- Contactor connection configuration
