Part Number # RM1A48D50
SKU # 1033929
Image Disclaimers Message
RM1A48D50

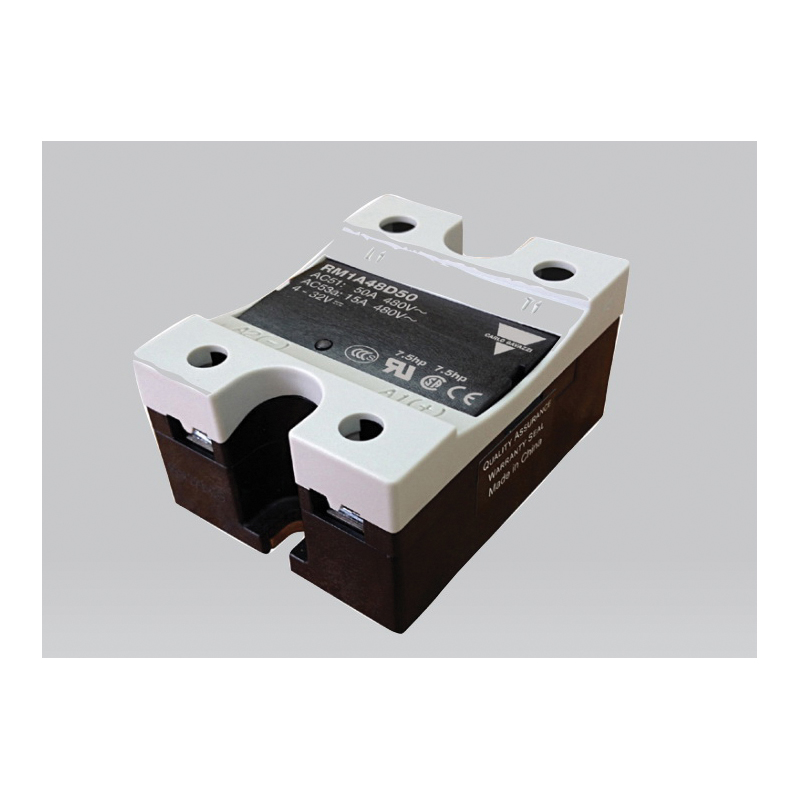

Carlo Gavazzi RM1A48D50 Solid State Relay
Part Number # RM1A48D50
SKU # 1033929
$1300.00 / 20Each
Typical price:$1520.00 / Each
Carlo Gavazzi RM1A48D50 Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | RM1A48D50 |
| SKU #: | 1033929 |
| Amperage Rating: | 50 A |
| Coil Voltage: | 480 V |
| Dimensions: | 44.8 mm W x 28.8 mm D x 58.2 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 45 to 65 Hz |
| Number of Poles: | 1 |
| Series: | RM Series |
| Temperature Rating (Degrees F): | -20 to 70 deg C |
| Terminal Type: | Screw |
| Mounting type: | DIN Rail/Panel/Wall |
| UNSPSC: | 32131001 |
| UPC: | 05350035320860 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1300.00 / 20Each
Typical price:$1520.00 / Each
Quantity:
Carlo Gavazzi RM1A48D50 Solid State Relay
Brand: Carlo Gavazzi
Part Number: RM1A48D50
Carlo Gavazzi Solid State Relay, Series: RM, 50 A, 45 to 65 Hz Frequency, 480 V Coil, 1 Pole, DIN Rail/Panel/Wall Mounting, Screw Terminal, IP20 Enclosure, -20 to 70 deg C, 44.8 mm W x 28.8 mm D x 58.2 mm H Dimensions
Additional Description: CAGA-RM1A48D50 SSR ZS 480V 50A 4.5-32 VDC LED
Catalog Description: 1-pole panel mount SSR, Zero-cross switching, Operating voltage (Ue): 42 - 530 Vac (1200 Vp), Rated current (Ie): 50 Aac, Control voltage (Uc): 4 - 32 Vdc, Built-in overvoltage protection
RM1A48D50 Item Features
- Zero switching (RM1A) or instant on switching (RM1B) AC Solid State Relay
- Direct copper bonding (DCB) technology
- LED indication
- Built-in varistor 230, 400, 480, 600 V
- Clip on IP20 protection cover
- Self-lifting terminals
- Housing-free of molding mass
- Zero cross switching
- 480 VACrms rated voltage
- 20 to 208 VAC/22 to 48 VDC control voltage
SKU #1033929Part Number #RM1A48D50UNSPSC32131001UPC05350035320860
