Part Number # RS1A23D25
SKU # 2212010
RS1A23D25
Carlo Gavazzi RS1A23D25 Solid State Relay
Part Number # RS1A23D25
SKU # 2212010
Carlo Gavazzi RS1A23D25 Key Features
| Brand: | Carlo Gavazzi |
|---|---|
| Part Number # : | RS1A23D25 |
| SKU #: | 2212010 |
| Coil Voltage: | 42 to 265 V AC, 42 to 265 VAC |
| Contact Form: | 1NO/SPST |
| Dimensions: | 44.8 mm W x 28.8 mm D x 58.2 mm H |
| Frequency Rating: | 45 to 65 Hz |
| Mounting type: | DIN Rail/Panel/Wall |
| Manufacturer Name: | Carlo Gavazzi |
| UNSPSC: | 32131001 |
| UPC: | 05350035320471 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Carlo Gavazzi RS1A23D25 Solid State Relay
Brand: Carlo Gavazzi
Part Number: RS1A23D25
Carlo Gavazzi Solid State Relay, Series: RS, 25 A, 45 to 65 Hz Frequency, 42 to 265 VAC Coil, 1NO/SPST Contact Form, 1 Pole, DIN Rail/Panel/Wall Mounting, Screw Terminal, IP20 Enclosure, -20 to 70 deg C, 44.8 mm W x 28.8 mm D x 58.2 mm H Dimensions
Additional Description: CAGA-RS1A23D25 SSR ZS 230V 25A 4.5-32 VDC LED
Catalog Description: 1-pole panel mount SSR, Zero-cross switching, Operating voltage (Ue): 42 - 265 Vac (650 Vp), Rated current (Ie): 25 Aac, Control voltage (Uc): 3 - 32 Vdc
RS1A23D25 Application
Industrial ApplicationsRS1A23D25 Item Features
- Direct copper bonding (DCB) technology in 25 A and 40 A types
- LED indication
- Clip on IP20 protection cover
- Self-lifting terminals
- Housing-free of molding mass
- Operational ratings up to 40 A ACrms and 480 VAC
- Blocking voltage - up to 1200 Vp
- Integrated snubber network in 25 A and 40 A types
- Zero switching mode
- 230 VACrms rated operational voltage
- 3 to 32 VDC control input
- 25 A ACrms rated operational current
RS1A23D25 Standards
CE Certified|CSA Certified|cURus Listed|EAC Certified|IEC/EN 55011|IEC/EN 60947-4-3|UL 508SKU #2212010Part Number #RS1A23D25UNSPSC32131001UPC05350035320471

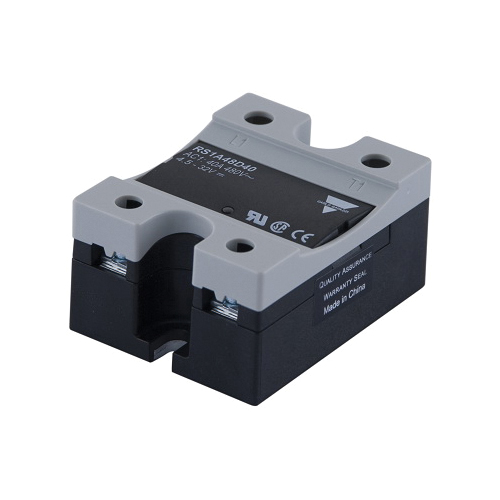

Image provided may only be a representation of final product and may include optional equipment
