2C/247/32TCOASHTYPECM

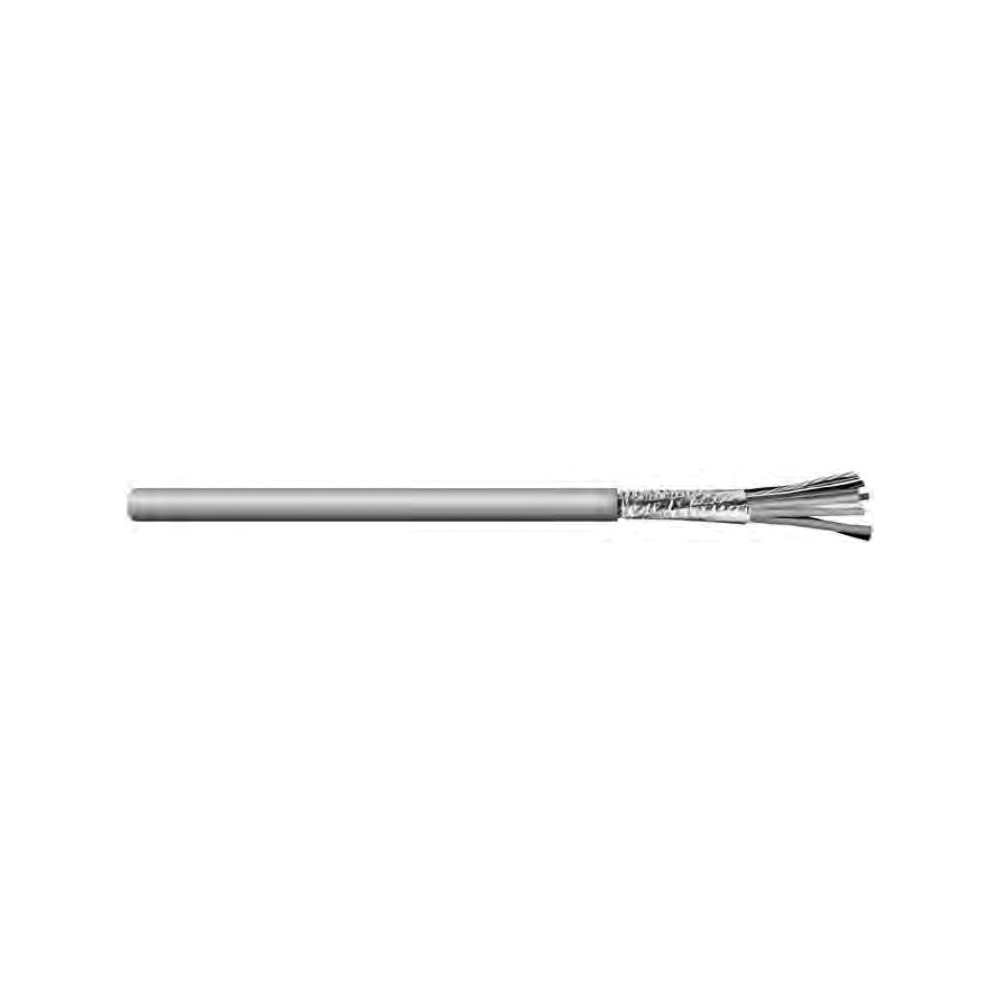

Carol Cable 2C/247/32TCOASHTYPECM Insulated Or Covered Wire
Part Number # 2C/247/32TCOASHTYPECM
SKU # 2404077
$0.41 / Feet
Typical price:$0.51 / Feet
Carol Cable 2C/247/32TCOASHTYPECM Key Features
| Brand: | Carol Cable |
|---|---|
| Part Number # : | 2C/247/32TCOASHTYPECM |
| SKU #: | 2404077 |
| Conductor Size: | 24 AWG |
| Conductor Type: | Fully Annealed Stranded Tinned Copper |
| Jacket Color: | Gray |
| Jacket Material: | PVC |
| Number of Conductors: | 2 |
| Outside Diameter: | 0.157 in |
| Resistance: | 26/7.2 Ohm |
| Series: | C0740A |
| Strands: | 7/32 |
| Temperature Rating (Degrees F): | 20 to 80 deg C |
| Type: | Type CMR/CMG Foil Shielded Multi-Conductor |
| Insulation material: | PVC |
| Length: | 1000 ft |
| Manufacturer Name: | Prysmian |
| UNSPSC: | 26121524 |
| UPC: | 00079407388479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$0.41 / Feet
Typical price:$0.51 / Feet
Quantity:
- Carol Computer Cable, Type CMR/CMG Foil Shielded Multi-Conductor, Series: C0740A, Reel Packaging, 300 V AC, 2 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 24 AWG Conductor, 0.157 in OD, 1000 ft Length, 7/32 Strands, 26/7.2 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, 20 to 80 deg C
2C/247/32TCOASHTYPECM Application
Computer Interconnections, Data Transmission, Control Circuits and Industrial Equipment Control2C/247/32TCOASHTYPECM Item Features
- 24 AWG fully annealed stranded tinned copper conductor per ASTM B-33
- Premium-grade, color-coded S-R PVC per UL 1061
- 36 pF/ft capacitance between conductors, 64 pF/ft capacitance between one conductor and other conductors connected to shield
- Suitable for EIA RS-232 applications
- Stranded tinned copper drain wire shield
- 100% Flexfoil aluminum/polyester with 25% overlap, foil facing out shield
- 26 conductor/7.2 shield Ohm/kft
2C/247/32TCOASHTYPECM Standards
cULus Listed|NEC Article 800 Type CMR|UL Style 2464|CSA Certified CMG|RoHS Compliant|UL 70,000 BTU Vertical Tray Flame Test|CSA CMG Flame TestSKU #2404077Part Number #2C/247/32TCOASHTYPECMUNSPSC26121524UPC00079407388479
