4C/247/32TCOASHTYPECM
Carol Cable 4C/247/32TCOASHTYPECM
Part Number # 4C/247/32TCOASHTYPECM
SKU # 2349951
$166.98 / 500Feet
Typical price:$257.00 / Feet
Carol Cable 4C/247/32TCOASHTYPECM Key Features
| Brand: | Carol Cable |
|---|---|
| Part Number # : | 4C/247/32TCOASHTYPECM |
| SKU #: | 2349951 |
| Conductor Size: | 24 AWG |
| Conductor Type: | Fully Annealed Stranded Tinned Copper |
| Jacket Color: | Gray |
| Jacket Material: | PVC |
| Number of Conductors: | 4 |
| Outside Diameter: | 0.175 in |
| Resistance: | 7.2/26 Ohm |
| Strands: | 7/32 |
| Temperature Rating (Degrees F): | -20 to 80 deg C |
| Type: | Type CMR/CMG Foil Shielded Multi-Conductor |
| Country of origin: | US |
| Insulation material: | PVC |
| Length: | 500 ft |
| Manufacturer Name: | Prysmian |
| UNSPSC: | 26121524 |
| UPC: | 00079407387533 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$166.98 / 500Feet
Typical price:$257.00 / Feet
Quantity:
- Carol Computer Cable, Type CMR/CMG Foil Shielded Multi-Conductor, Spool Packaging, 300 V AC, 4 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 24 AWG Conductor, 0.175 in OD, 500 ft Length, 7/32 Strands, 7.2/26 Ohm Resistance, PVC Insulation, PVC Jacket, Gray Jacket, -20 to 80 deg C
4C/247/32TCOASHTYPECM Application
Computer Interconnections, Data Transmission, Control Circuits, Industrial Equipment Control and EIA RS-232 Applications4C/247/32TCOASHTYPECM Item Features
- Premium grade, color coded S-R PVC insulation
- 33 pF/ft capacitance between conductors, 59 pF/ft capacitance between one conductor and other conductors connected to shield
- 100% Flexfoil aluminum/polyester with 25% overlap, minimum, foil facing out shield
- Stranded tinned copper drain wire
- 26 conductor/7.2 shield Ohm/kft
4C/247/32TCOASHTYPECM Standards
CSA CMG Flame Test|cULus Listed|NEC Article 800 Type CM/CMR|RoHS Compliant|UL 2464|UL 70000 BTU Vertical Tray Flame TestSKU #2349951Part Number #4C/247/32TCOASHTYPECMUNSPSC26121524UPC00079407387533

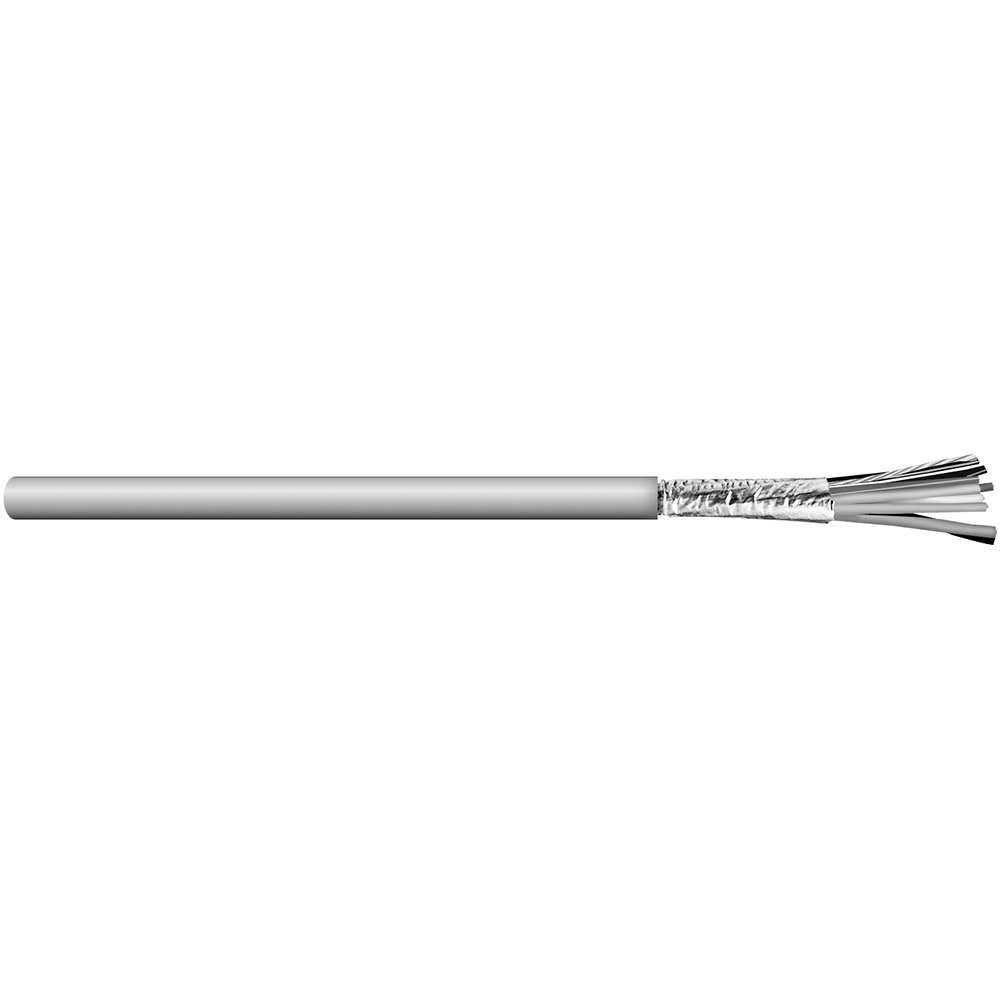

Image provided may only be a representation of final product and may include optional equipment
