APJ6375S22

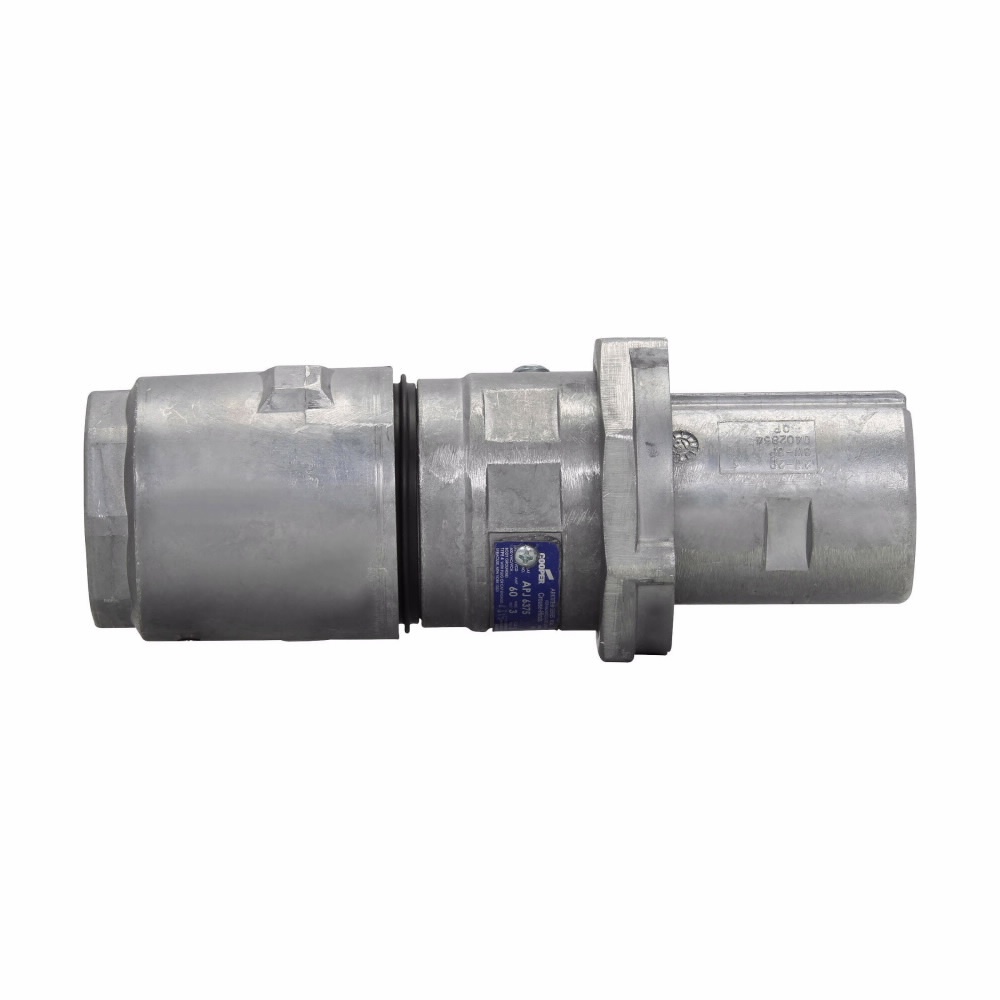

Crouse Hinds APJ6375S22 Mating Plug
Part Number # APJ6375S22
SKU # 2241156
$853.53 / Each
Typical price:$1126.66 / Each
Crouse Hinds APJ6375S22 Key Features
Brand: Crouse Hinds
Part Number # APJ6375S22
SKU #2241156
Amperage Rating: 60 A
Dimensions: 3-5/8 in Dia x 8-1/2 in L
Enclosure: NEMA 4
Frequency Rating: 50 to 400, 50 to 400 Hz
Horsepower: 50 hp
NEMA Rating: NEMA 4
Number of Poles: 3
Number of Wires: 3
Series: APJ
Terminal Type: Crimp/Pressure/Solder
Type: Grounding Style 1 Heavy Duty Watertight, Grounding Style 1 Heavy Duty Watertight Weatherproof
Voltage Rating: 600 VAC, 250 VDC, 600 VAC/250 VDC
Color: Natural
Country of origin: US
Material: Cast Aluminum, Copper-Free Aluminum
Manufacturer Name: Eaton
UNSPSC: 39121402
UPC: 00782274366449
$853.53 / Each
Typical price:$1126.66 / Each
SKU # 2241156
Part Number # APJ6375S22
Crouse Hinds APJ6375S22 Mating Plug
Brand: Crouse Hinds
Part Number: APJ6375S22
Crouse-Hinds Arktite Mating Plug, Grounding Style 1 Heavy Duty Watertight Weatherproof, Series: APJ, 600 VAC/250 VDC, 60 A, 50 hp, 50 to 400 Hz Frequency, 3 Pole, 3 Wires, NEMA 4 Rating, Crimp/Pressure/Solder Terminal, Copper-Free Aluminum, Natural, 3-5/8 in Dia x 8-1/2 in L Dimensions
Additional Description: CRHD-APJ6375S22 60AMP 3W3P STYLE 1 NON-HAZ PLG W/ RECPT INT REV CONTS
Catalog Description: Eaton Crouse-Hinds series Arktite APJ plug, 60A, 0.50-1.45", Three-wire, three-pole, 50-400 Hz, Style 1, Copper-free aluminum, Reversed contacts, 600 Vac/250 Vdc
APJ6375S22 Application
Supply Power to Portable Electrically Operated Devices such as Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Conveyors, Lighting Systems and Similar Equipment, Industrial Facilities, Factories, Power Distribution and Control ApplicationsAPJ6375S22 Item Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
SKU #2241156Part Number #APJ6375S22UNSPSC39121402UPC00782274366449
