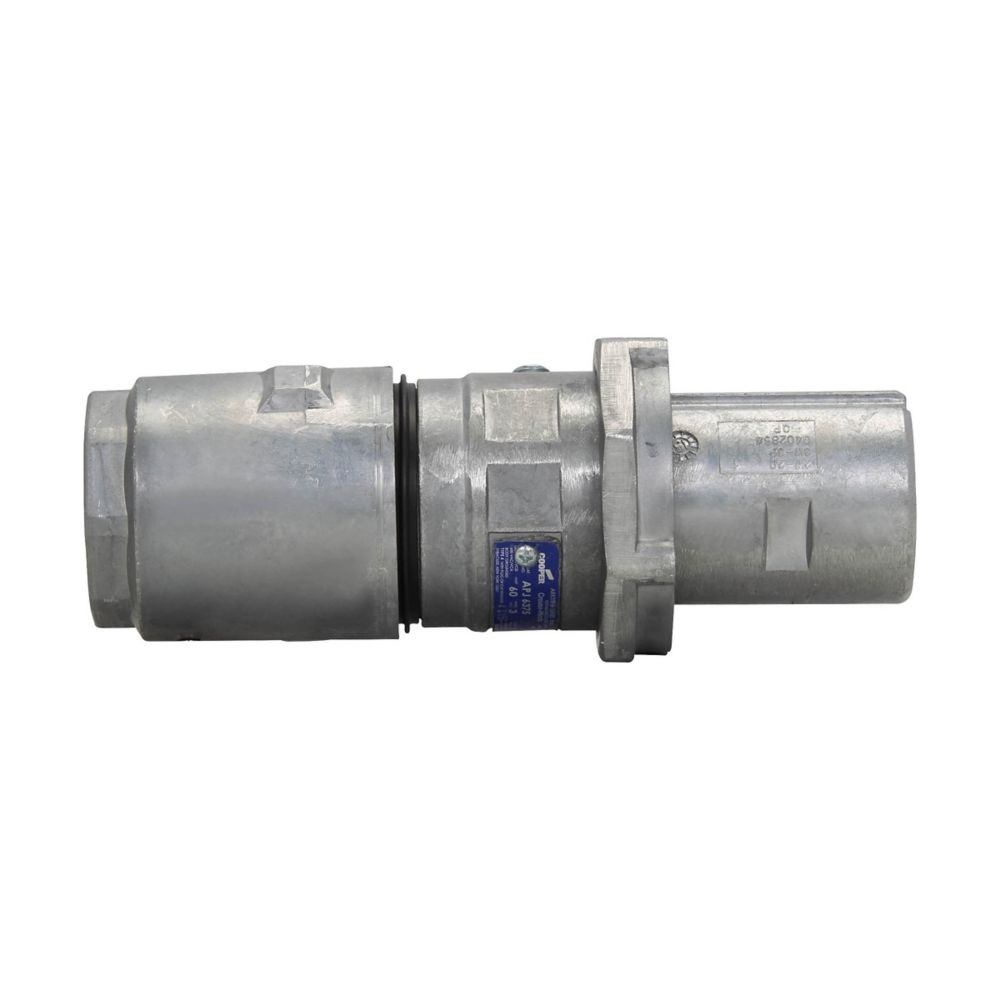

Crouse Hinds APJ6485S4 Mating Plug
Part Number # APJ6485S4
SKU # 2284214
Crouse Hinds APJ6485S4 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | APJ6485S4 |
| SKU #: | 2284214 |
| Dimensions: | 3-3/4 in Dia X 8-1/2 in L |
| Series: | APJ |
| Terminal Type: | Crimp/Solder |
| Type: | Heavy Duty Mating Watertight |
| UNSPSC: | 39121402 |
| UPC: | 00782274454443 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds APJ6485S4 Mating Plug
Brand: Crouse Hinds
Part Number: APJ6485S4
Crouse-Hinds Arktite Pin and Sleeve Plug, Heavy Duty, Series: APJ, 600 VAC/250 VDC, 60 A, 50 hp, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 4 NEMA Rating, Crimp/Solder Terminal, Aluminum, Natural, 3-3/4 in Dia x 8-1/2 in L Dimensions
Additional Description: CRHD-APJ6485S4 60AMP 3W4P STYLE 2 NON-HAZ PLG W/ ALT POLARITY 1/4 SP POLAR
Catalog Description: Eaton Crouse-Hinds series Arktite APJ plug, 60A, 0.50-1.45", Three-wire, four-pole, 50-400 Hz, Style 2, Copper-free aluminum, Interior rotated 22-1/2 degrees, 600 Vac/250 Vdc
APJ6485S4 Application
For indoor/outdoor motor-generator set, compressor, heating and cooling unit, welder, conveyor and lighting systemAPJ6485S4 Item Features
- Watertight
- Grounding style 1
- Circuit breaking: plugs through 100 ampere rating may be disconnected under load, 150-400 ampere units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate, and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- Designed to withstand rough usage and the effects of adverse environments
- Arktite plug and receptacle interiors are interchangeable using a screwdriver, this makes it possible to feed a normally de-energized receptacle from an energized plug with usual Arktite safety, no energized contacts are exposed
- 0.875 - 1.7 in cable diameter
- 1-1/2 in to 1-1/4 in hub size
- 6 - 4 AWG (building), 8 - 4 AWG (extra flex)
- Copper-free aluminum
APJ6485S4 Standards
CSA C22.2 No. 182.1 Certified|RoHS Compliant|UL 1682 ListedSKU #2284214Part Number #APJ6485S4UNSPSC39121402UPC00782274454443
Image provided may only be a representation of final product and may include optional equipment
