Part Number # AR1542
SKU # 2243774
Image Disclaimers Message
AR1542

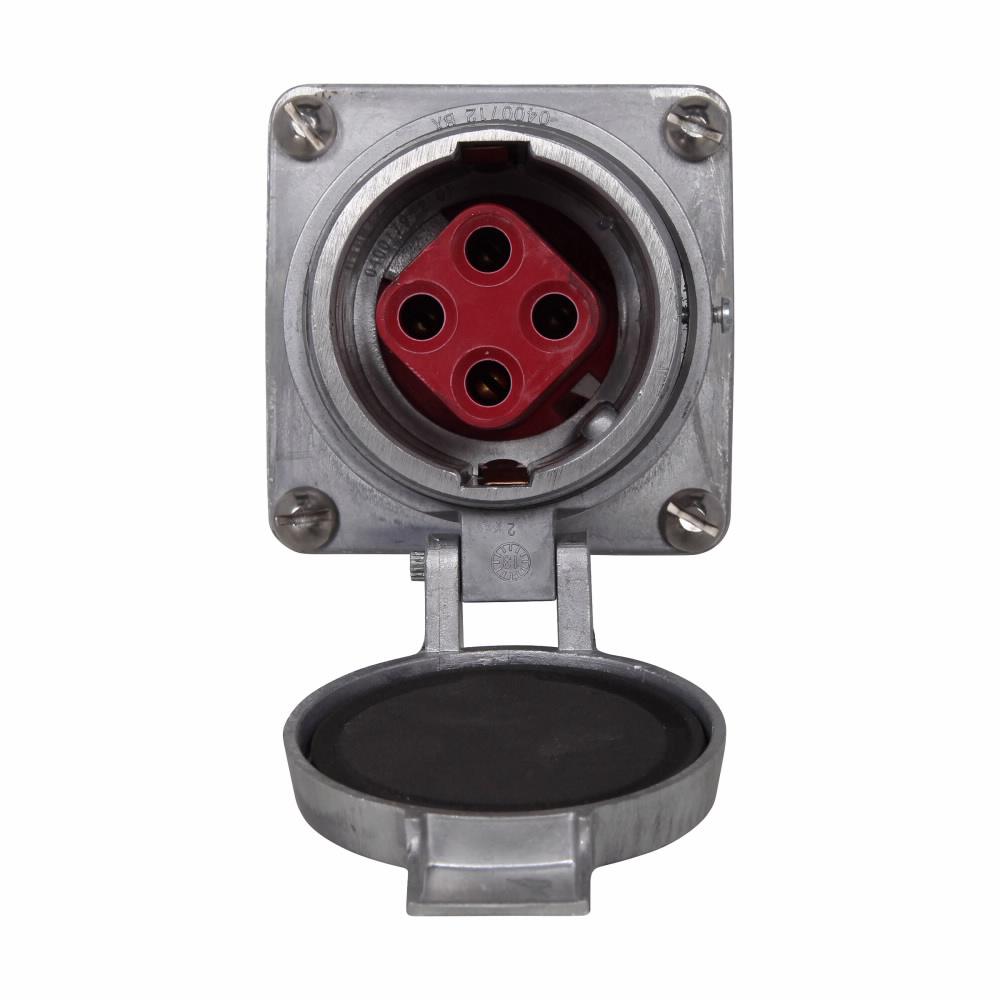

Crouse Hinds AR1542 Pin and Sleeve Receptacle Housing
Part Number # AR1542
SKU # 2243774
$1973.80 / Each
Typical price:$2605.42 / Each
Crouse Hinds AR1542 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | AR1542 |
| SKU #: | 2243774 |
| Amperage Rating: | 150 A |
| Dimensions: | 5-9/16 in L x 4-1/4 in W x 4-1/4 in H |
| Grounding Style: | 2 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | AR Series |
| Type: | Grounding Style 2 Heavy Duty Threaded Cap |
| Color: | Natural |
| Country of origin: | MX |
| Material: | Cast Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662276136625 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1973.80 / Each
Typical price:$2605.42 / Each
Quantity:
- EATON Crouse-Hinds Arktite Pin and Sleeve Receptacle Housing, Grounding Style 2 Heavy Duty Threaded Cap, Series: AR Series, 600 VAC/250 VDC, 150 A, 4 Pole, 3 Wires, 2 Grounding Style, Cast Aluminum, Natural, 5-9/16 in L x 4-1/4 in W x 4-1/4 in H Dimensions
AR1542 Application
Industrial Facilities, Factories Facility, Power Distribution and ControlAR1542 Item Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
- Watertight
- NEMA 4 enclosure
- High impact strength copper-free aluminum
- 0.875 to 1.7 in Dia cable
- Shell and extra pole ground
- 4 to 1 AWG building, 4 to 2 AWG extra flex wire
AR1542 Standards
UL 1203|UL 1682|UL 1686|CSA C22.2|CE CertifiedSKU #2243774Part Number #AR1542UNSPSC39121406UPC00662276136625
