Part Number # AR20412S22
SKU # 2267163
Image provided may only be a representation of
final product and may include optional equipment
AR20412S22

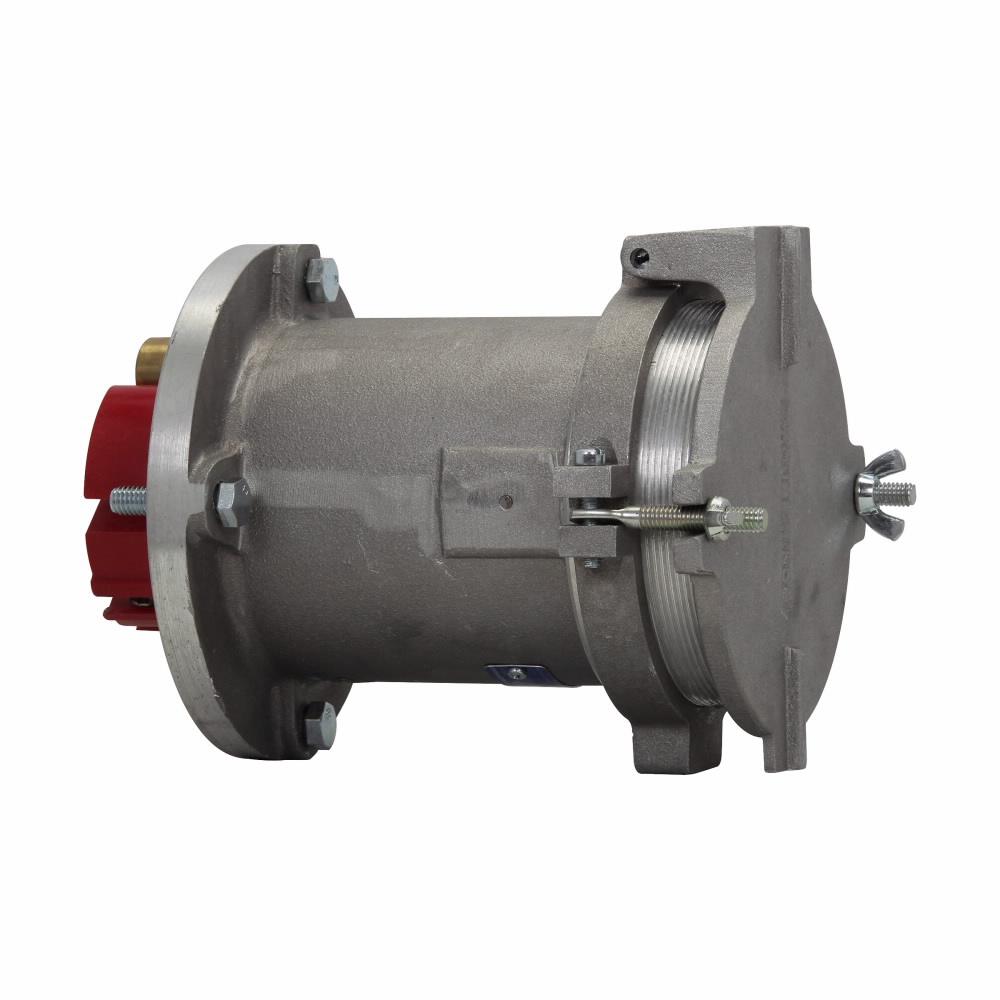

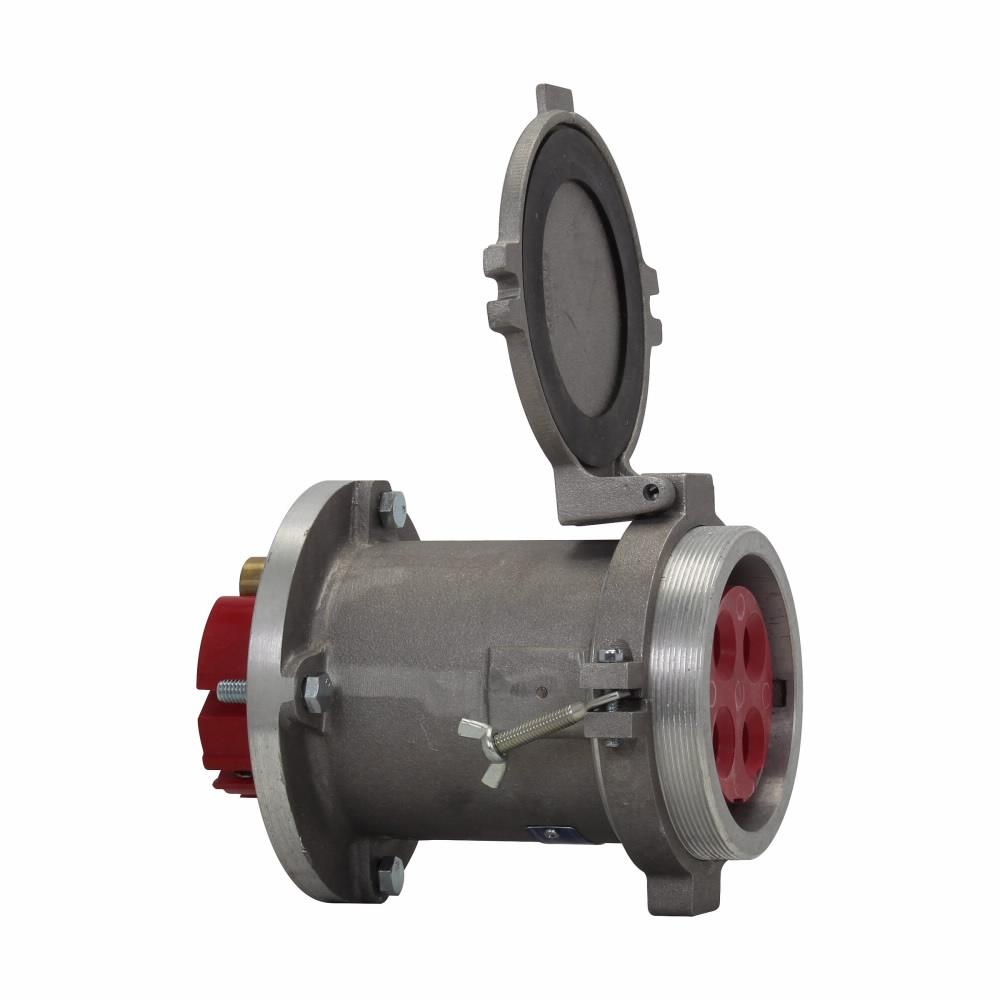

Crouse Hinds AR20412S22 Pin and Sleeve Receptacle Housing
Part Number # AR20412S22
SKU # 2267163
Crouse Hinds AR20412S22 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | AR20412S22 |
| SKU #: | 2267163 |
| Amperage Rating: | 200, 200 A |
| Dimensions: | 6-5/8 in Dia x 7-1/2 in W |
| Grounding Style: | 1 |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Series: | AR Series |
| Type: | Heavy Duty Spring Door Reversed Contacts |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00782274769592 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds AR20412S22 Pin and Sleeve Receptacle Housing
Brand: Crouse Hinds
Part Number: AR20412S22
EATON Pin and Sleeve Receptacle Housing, Heavy Duty Spring Door Reversed Contacts, Series: AR Series, 600 VAC/250 VDC, 200 A, 4 Pole, 4 Wires, 1 Grounding Style, Aluminum, Natural, 6-5/8 in Dia x 7-1/2 in W Dimensions
Additional Description: CRHD-AR20412S22 200AMP 4W4P STYLE 1 NON-HAZ RECPT W/ PLG INT CNDT SZ REV CONTS
Catalog Description: Eaton Crouse-Hinds series Arktite AR receptacle with mechanical lug, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Reversed contacts, Crimp/solder, 600 Vac/250 Vdc, 0.75"
AR20412S22 Application
Industrial Facilities, Factories Facility, Power Distribution and ControlAR20412S22 Item Features
- Circuit breaking plugs through 100 A rating may be disconnected under load, 150 to 400 A units are for service disconnect use only
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Designed to withstand rough usage and the effects of adverse environments
- 1-3/8 to 1-7/8 in, 1-7/8 to 2-1/2 in and 2-1/2 to 3 in Dia cable
- 3/4 in wire well maximum conductor size
- High impact strength copper-free aluminum
AR20412S22 Standards
CSA C22.2 182.1|UL 1682|UL 1686|CE (LVD) 2006/95/EECSKU #2267163Part Number #AR20412S22UNSPSC39121402UPC00782274769592
