Part Number # AR221
SKU # 2354566
Image provided may only be a representation of
final product and may include optional equipment
AR221

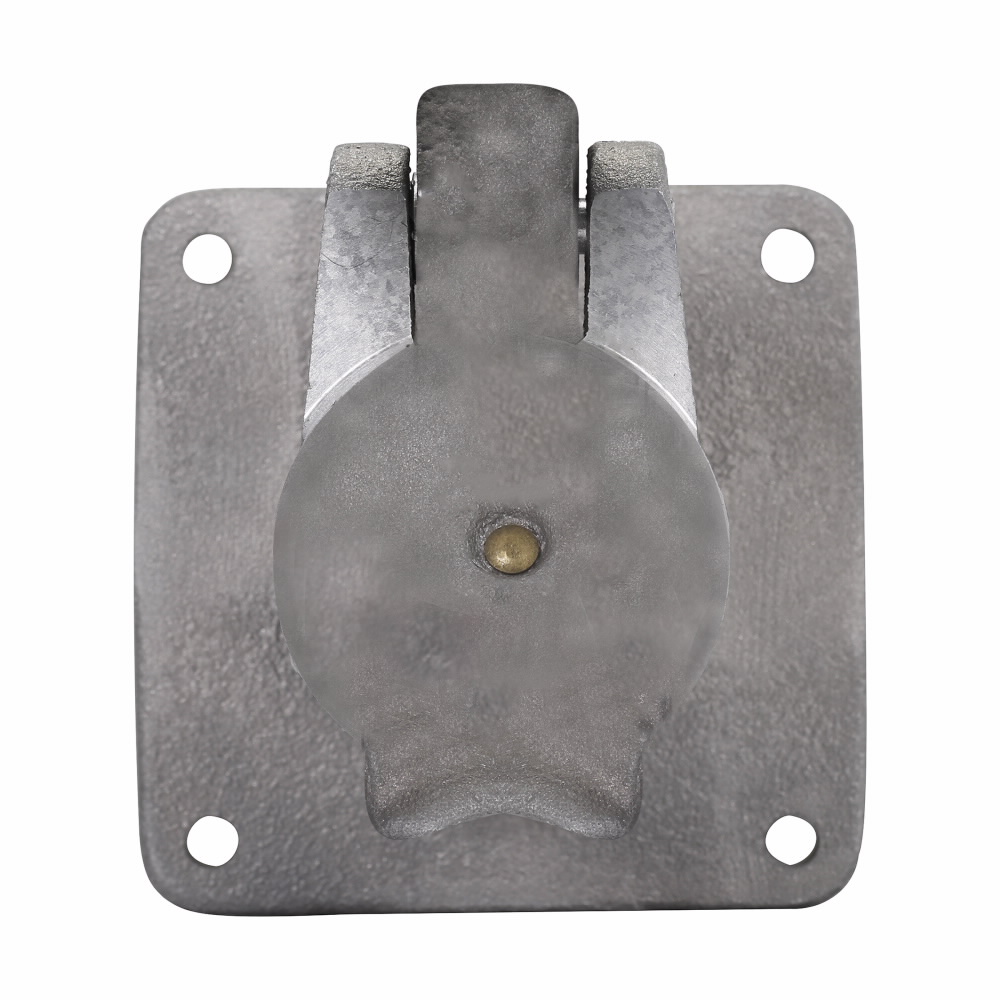

Crouse Hinds AR221 Pin and Sleeve Receptacle
Part Number # AR221
SKU # 2354566
$371.12 / Each
Typical price:$489.88 / Each
Crouse Hinds AR221 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | AR221 |
| SKU #: | 2354566 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3-1/16 in H x 3-9/8 in W x 3-3/8 in D, 3-9/8 in W x 3-3/8 in D x 3-1/16 in H |
| Frequency Rating: | 50 to 400 Hz, 50/400 |
| NEMA Rating: | NEMA 4 |
| Number of Poles: | 2 |
| Number of Wires: | 2 |
| Terminal Type: | Binding Screw, Screw |
| Type: | Heavy Duty Spring Door Watertight, Spring Door |
| Country of origin: | US |
| Material: | Copper Free Aluminum, Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274058207 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$371.12 / Each
Typical price:$489.88 / Each
Quantity:
Crouse Hinds AR221 Pin and Sleeve Receptacle
Brand: Crouse Hinds
Part Number: AR221
EATON Arktite Pin and Sleeve Receptacle, Heavy Duty Spring Door Watertight, 600 VAC/250 VDC, 20 A, 50 to 400 Hz Frequency, 2 Pole, 2 Wires, NEMA 4 NEMA Rating, Binding Screw Terminal, Copper-Free Aluminum, Natural, 3-9/8 in W x 3-3/8 in D x 3-1/16 in H Dimensions
Additional Description: CRHD-AR221 20AMP 2W2P STYLE 1 NON-HAZ RECPT W/ SPRING DOOR
Catalog Description: Eaton Crouse-Hinds series Arktite AR receptacle, 20A, Spring door
AR221 Application
Industrial Facilities, Factories, Power Distribution and Control Applications, Motor Generator Sets, Conveyor, Compressor, Heating, Cooling Unit, Indoor, Outdoor, Lighting System and WelderAR221 Item Features
- Metallic receptacle housings, plug and cord connector bodies - high impact strength copper-free aluminum
- To supply power to portable electrically operated devices
- Where temporary power is needed, such as at trailers, building units, heavy machinery
- Wherever electrical loads must be quickly disconnected from power source
- Receptacles accept only plugs of the same amperage rating, style and number of poles, making it impossible to mismate and provides for positive polarization
- Extra wide electrical spacing allows for maximum safety
- Insulator materials are the result of intensive testing, selection has been made based on highest dielectric strength, maximum mechanical and impact resistance, lowest moisture absorption and highest arc tracking resistance
- A variety of installations is possible due to the availability of several types of back boxes
- Designed to withstand rough usage and the effects of adverse environments
- Industrial heavy duty non-hazardous areas
- Threaded cap, spring door
- 14 to 12 AWG building/extra flex wire
AR221 Standards
CE Certified|CSA C22.2|UL 1686|UL 1682SKU #2354566Part Number #AR221UNSPSC39121406UPC00782274058207
