Crouse Hinds AREAL20416 Circuit Breaking Receptacle Assembly
Part Number # AREAL20416
SKU # 2324770
Crouse Hinds AREAL20416 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | AREAL20416 |
| SKU #: | 2324770 |
| Cord Diameter: | 0.687 in |
| Dimensions: | 14-7/16 in W x 8-3/8 in D x 15-5/8 in H |
| Series: | AREA |
| Terminal Type: | Mechanical Lug |
| UNSPSC: | 39121406 |
| UPC: | 00662276256279 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds AREAL20416 Circuit Breaking Receptacle Assembly
Brand: Crouse Hinds
Part Number: AREAL20416
Crouse-Hinds Arktite Circuit Breaking Receptacle Assembly, Heavy Duty Watertight, Series: AREA, 600 VAC/250 VDC, 200 A, 150 hp, 50 to 400 Hz Frequency, 4 Pole, 4 Wires, NEMA 3R Rating, 2 in Hub, 0.687 in Diameter Cord, Mechanical Lug Terminal, Copper-Free Aluminum, Natural, 14-7/16 in W x 8-3/8 in D x 15-5/8 in H Dimensions
Additional Description: CRHD-AREAL20416 (N) 200A 4W4P ARKTE RCPT ASSY 2 LUG NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Arktite AREAL receptacle assembly, 200A, Four-wire, four-pole, 50-400 Hz, Style 1, Copper-free aluminum, Spring door, Mechanical lug, 2", 600 Vac/250 Vdc, 0.687"
AREAL20416 Item Features
- Grounding contact wire terminators will accommodate ground wire of same size as phase wire
- Spring band contact design provides multiple points of electrical contact
- Improves electrical reliability and significantly reduces effort required for insertion and withdrawal
- Large wire wells are available for extra flexible wire
- Larger wire well size connectors will interchange with connectors of other wire well size of same amperage and contact configuration
- Mechanical lug connectors will interchange with crimp/solder connectors of the same amperage and contact configuration
- Self-closing spring doors on receptacles and cord connectors provide environmental sealing
- Threaded nuts provide positive plug retention
- Two piece plug and cord connector design provide easy installation
- Grounding style 1 - wire well takes 0.687 in maximum conductor size
SKU #2324770Part Number #AREAL20416UNSPSC39121406UPC00662276256279

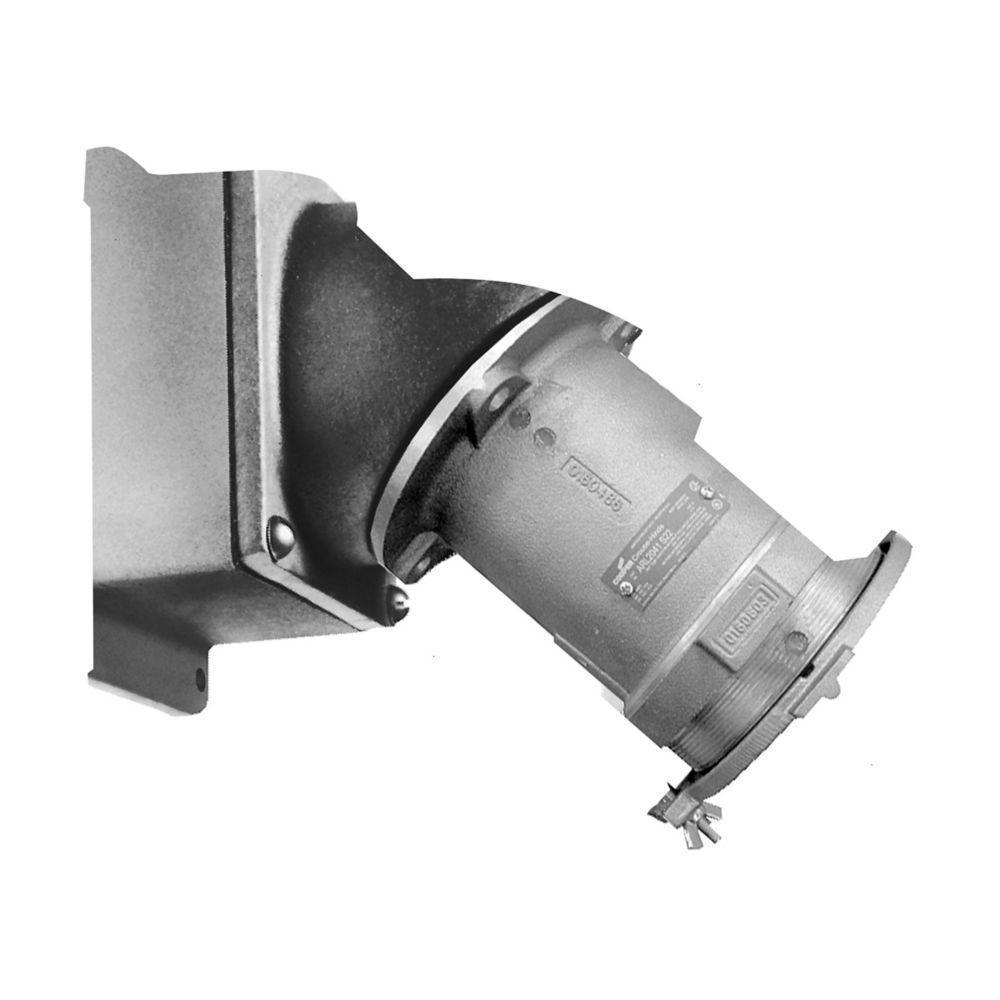

Image provided may only be a representation of final product and may include optional equipment
