Brand: Crouse Hinds
AREAL20426
Crouse Hinds AREAL20426
Part Number # AREAL20426
SKU # 2452928
$3954.32 / Each
Typical price:$5219.70 / Each
Crouse Hinds AREAL20426 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | AREAL20426 |
| SKU #: | 2452928 |
| Amperage Rating: | 200 A |
| Cord Diameter: | 0.687 in |
| Dimensions: | 14-7/16 in W x 8-3/8 in D x 15-5/8 in H |
| Frequency Rating: | 50 to 400 Hz |
| Horsepower: | 150 hp |
| Hub Size: | 2 in |
| NEMA Rating: | NEMA 3R |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Series: | AREA |
| Terminal Type: | Mechanical Lug |
| Type: | Heavy Duty Watertight |
| Color: | Natural |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00066227616710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3954.32 / Each
Typical price:$5219.70 / Each
Quantity:

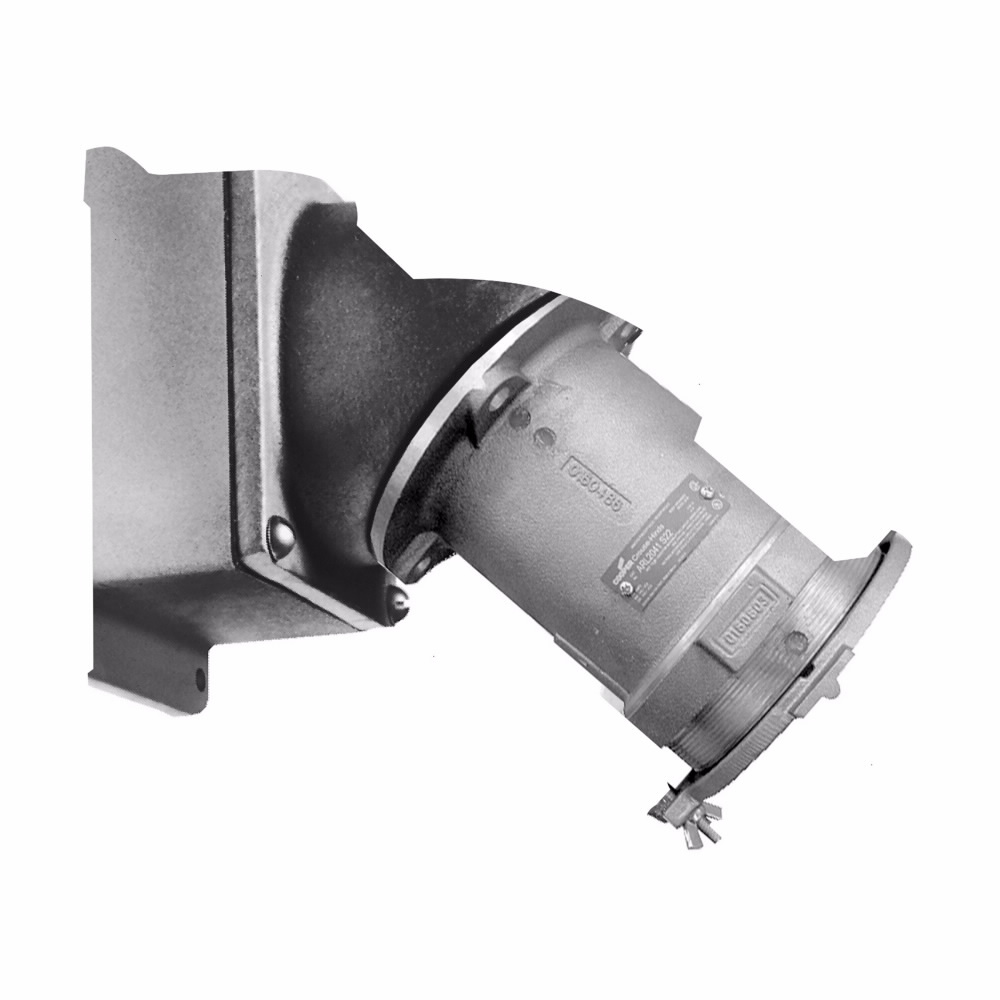

- Crouse-Hinds Arktite Circuit Breaking Receptacle Assembly, Heavy Duty Watertight, Series: AREA, 600 VAC/250 VDC, 200 A, 150 hp, 50 to 400 Hz Frequency, 3 Pole, 3 Wires, NEMA 3R Rating, 2 in Hub, 0.687 in Diameter Cord, Mechanical Lug Terminal, Copper-Free Aluminum, Natural, 14-7/16 in W x 8-3/8 in D x 15-5/8 in H Dimensions
AREAL20426 Item Features
- Grounding contact wire terminators will accommodate ground wire of same size as phase wire
- Spring band contact design provides multiple points of electrical contact
- Improves electrical reliability and significantly reduces effort required for insertion and withdrawal
- Large wire wells are available for extra flexible wire
- Larger wire well size connectors will interchange with connectors of other wire well size of same amperage and contact configuration
- Mechanical lug connectors will interchange with crimp/solder connectors of the same amperage and contact configuration
- Self-closing spring doors on receptacles and cord connectors provide environmental sealing
- Threaded nuts provide positive plug retention
- Two piece plug and cord connector design provide easy installation
- Grounding style 2 - wire well takes 0.687 in maximum conductor size
