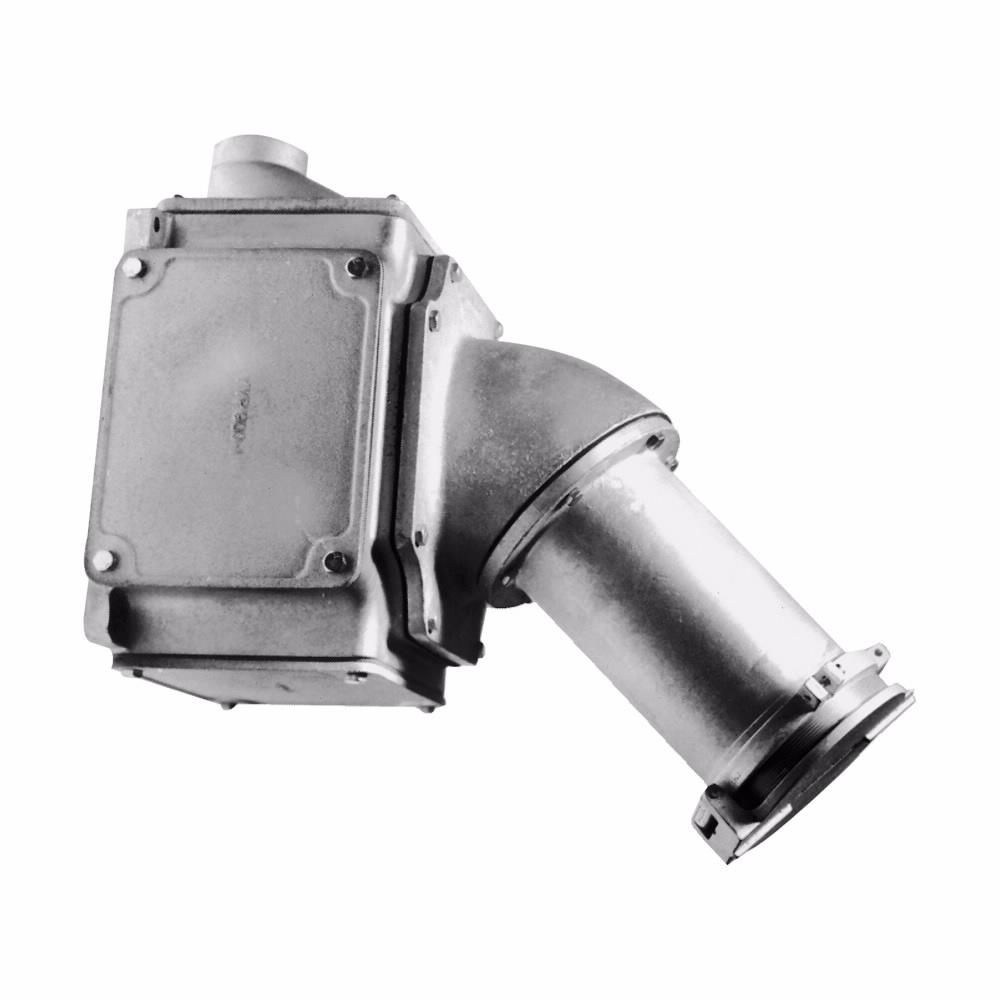

Crouse Hinds AREX40418 Pin and Sleeve Receptacle Assembly
Part Number # AREX40418
SKU # 2199619
$10998.59 / Each
Typical price:$14518.14 / Each
Crouse Hinds AREX40418 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | AREX40418 |
| SKU #: | 2199619 |
| Amperage Rating: | 400, 400 A |
| Cord Diameter: | 1-7/8 to 2-1/2, 1-7/8 to 2-1/2 in |
| Dimensions: | 19 in H x 23-5/8 in W x 13 in D, 23-5/8 in W x 13 in D x 19 in H |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Hub Size: | 3, 3 in |
| Number of Poles: | 4 |
| Number of Wires: | 4 |
| Series: | AREX |
| Terminal Type: | Crimp/Solder/Pressure, Crimp/Solder/Pressure Wired |
| Type: | Grounding Style 1 Heavy Duty Weatherproof, Style 1 Heavy Duty Weatherproof |
| Color: | Natural |
| Country of origin: | US |
| Material: | Copper Free Aluminum, Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274042046 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10998.59 / Each
Typical price:$14518.14 / Each
Quantity:
- Crouse-Hinds Arktite Pin and Sleeve Receptacle Assembly, Grounding Style 1 Heavy Duty Weatherproof, Series: AREX, 600 VAC/250 VDC, 400 A, 50 to 400 Hz Frequency, 4 Pole, 4 Wires, 1 Hub, 3 in Hub, 1-7/8 to 2-1/2 in Diameter Cord, Crimp/Solder/Pressure Terminal, Copper-Free Aluminum, Natural, 23-5/8 in W x 13 in D x 19 in H Dimensions
AREX40418 Application
Motor Generator Set, Compressor, Heating/Cooling Unit, Welder, Conveyor, Lighting System and Indoor/Outdoor ApplicationsAREX40418 Item Features
- Grounding contact wire terminators will accommodate ground wire of same size as phase wire
- Large wire wells are available for extra flexible wire
- Self-closing spring doors on receptacles and cord connectors provide environmental sealing
- Threaded nuts provide positive plug retention
- Two piece plug and cord connector design provide easy installation
- Shell grounding
- Spring door
- High impact strength copper-free aluminum
- 0.84 in wire well maximum conductor size
- 250 to 1000 kcmil building, 250 to 750 kcmil extra flex wire
AREX40418 Standards
UL 1682|UL 1686|CSA C22.2 182.1SKU #2199619Part Number #AREX40418UNSPSC39121406UPC00782274042046
