BHRC6484D

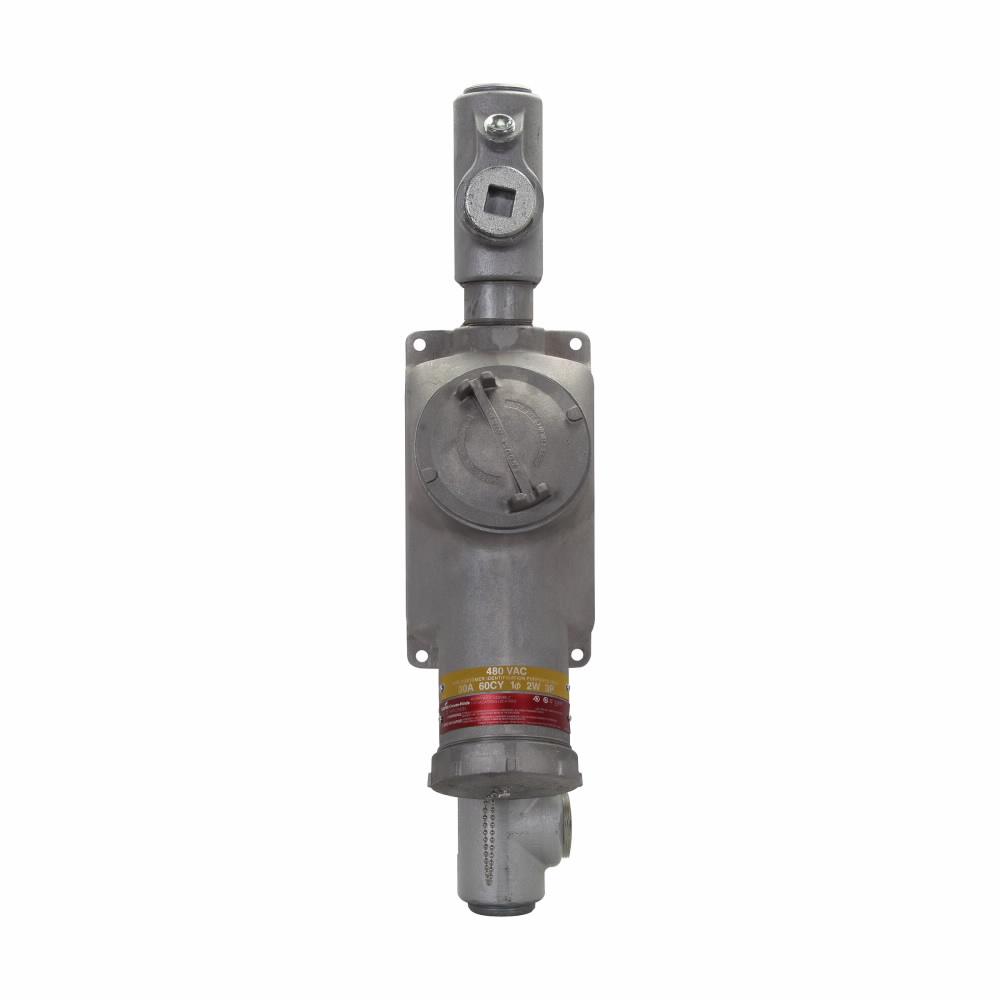

Crouse Hinds BHRC6484D Interlocked Receptacle
Part Number # BHRC6484D
SKU # 2309239
$10109.98 / Each
Typical price:$13345.18 / Each
Crouse Hinds BHRC6484D Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | BHRC6484D |
| SKU #: | 2309239 |
| Amperage Rating: | 60 A |
| Dimensions: | 6-1/2 in L x 9-1/8 in W x 27-1/4 in H |
| Enclosure: | NEMA 3/4/7B/7C/7D/9F/9G/12 |
| Frequency Rating: | 60 to 400, 60 to 400 Hz |
| NEMA Rating: | NEMA 3/4/7B/7C/7D/9F/9G/12 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | BHR, BHRC |
| Type: | Dead Front Dust-Ignitionproof Explosionproof Raintight, Dead Front Explosionproof/Dust Ignitionproof Raintight |
| Color: | Natural |
| Country of origin: | US |
| Material: | Copper Free Aluminum, Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274043845 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10109.98 / Each
Typical price:$13345.18 / Each
Quantity:
- Crouse-Hinds Interlocked Receptacle, Dead Front Dust-Ignitionproof Explosionproof Raintight, Series: BHR, 480 VAC, 60 A, 60 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/4/7B/7C/7D/9F/9G/12 NEMA Rating, Copper-Free Aluminum, Natural, 6-1/2 in L x 9-1/8 in W x 27-1/4 in H Dimensions
BHRC6484D Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motor Generator Sets, Compressors, Heating and Cooling Units, Conveyors and Lighting Systems ApplicationsBHRC6484D Item Features
- Feature a built-in rotary switch which is operated automatically when the plug is inserted and withdrawn
- The switch, capable of making and breaking the circuit at full rated load, is operated by a helical blade in the center of the plug
- The plug and receptacle contacts cannot be made or broken under load
- When the plug is inserted, the plug and receptacle contacts engage before the switch closes
- When the plug is withdrawn, the switch opens before the plug and receptacle contacts disengage
- This sequence of operation provides maximum safety in a dead front receptacle, arcing is isolated in a flame and dusttight chamber
- Operation is simple, safe and positive, to disconnect the portable device, the plug fastening ring is unscrewed and the plug simply pulled straight out
- No separate interlock device or operating handle need be actuated
- Positive engagement without mismatching is assured by a distinct physical polarization of the plug and receptacle in every rating
- Receptacles are furnished with flexible leads for splicing to the supply conductors
- A large threaded cover provides access to the wiring compartment
BHRC6484D Standards
UL 1010|ANSI Specified|Class I, Division 1/2, Group B/C/D, Class II, Division 1/2, Group F/G, Class IIISKU #2309239Part Number #BHRC6484DUNSPSC39121406UPC00782274043845
