Part Number # BP49
SKU # 2310624
Image Disclaimers Message
BP49

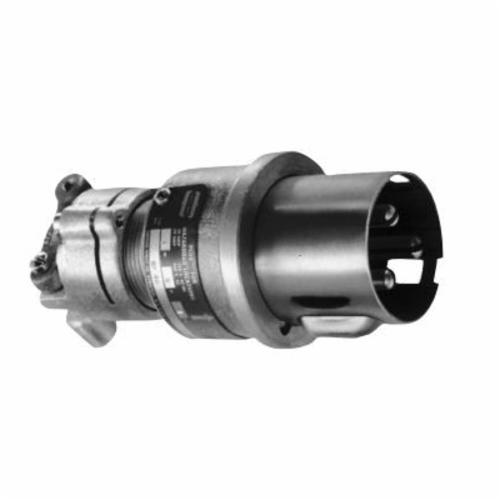

Crouse Hinds BP49 Pin and Sleeve Plug
Part Number # BP49
SKU # 2310624
$2103.84 / 2Each
Typical price:$2777.08 / Each
Crouse Hinds BP49 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | BP49 |
| SKU #: | 2310624 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 4-1/8 in Dia x 10-1/8 in L |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | NEMA 4 |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Series: | BP Series |
| Type: | Explosionproof Watertight |
| Country of origin: | US |
| Material: | Cast Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00782274745855 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2103.84 / 2Each
Typical price:$2777.08 / Each
Quantity:
- Crouse-Hinds Arktite Pin and Sleeve Plug, Explosionproof Watertight, Series: BP Series, 600 VAC/250 VDC, 100 A, 2 hp, 50 to 400 Hz Frequency, 3 Pole, 2 Wires, NEMA 4, Industrial Grade, Cast Aluminum, 4-1/8 in Dia x 10-1/8 in L Dimensions
BP49 Application
Wet LocationsBP49 Item Features
- Reverse interior
- 0.875 to 1.7 in Dia cord
- Grounding style 1
- 4 to 1 AWG (building), 4 to 2 AWG (extra flex) wire
BP49 Standards
UL 514|UL 1010|UL 1682|CSA C22.2|Class I, Div 1, 2, Groups B, C, D|Class II, Div 1, 2, Groups F, G|Class IIISKU #2310624Part Number #BP49UNSPSC39121402UPC00782274745855
