BT9

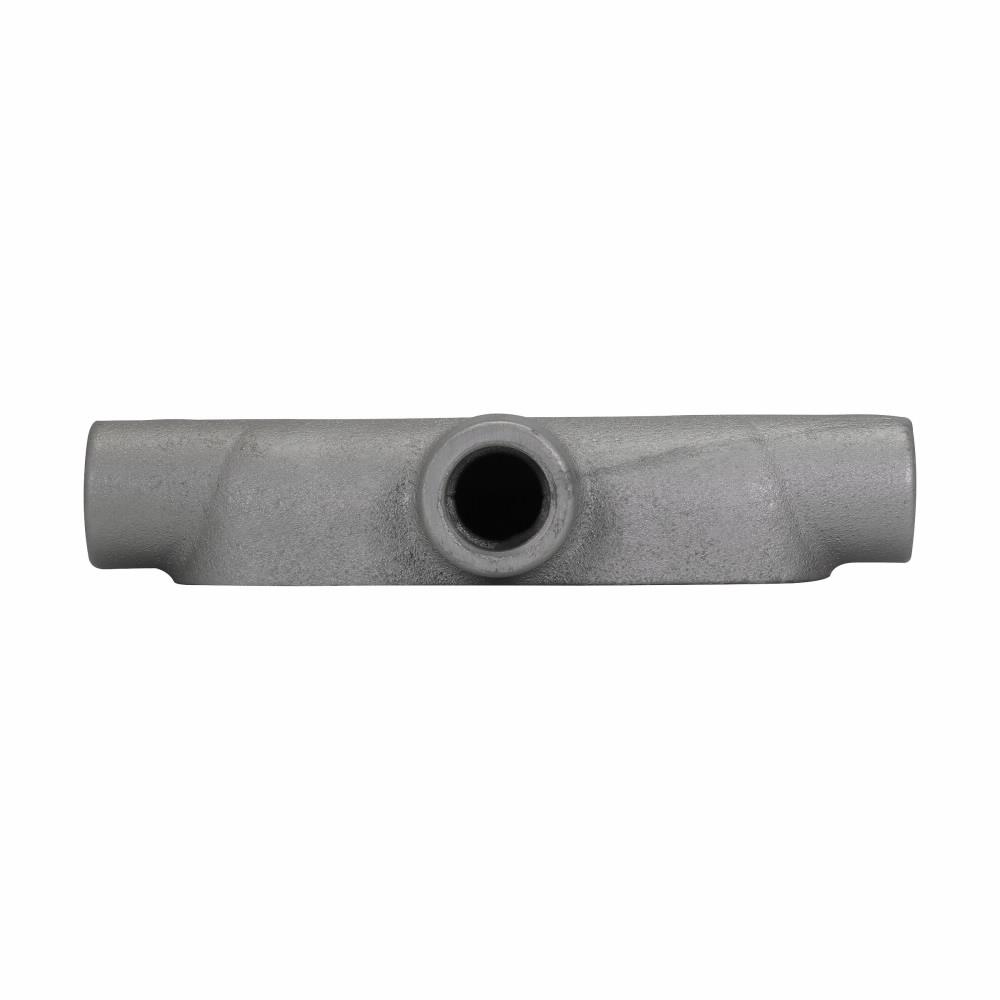

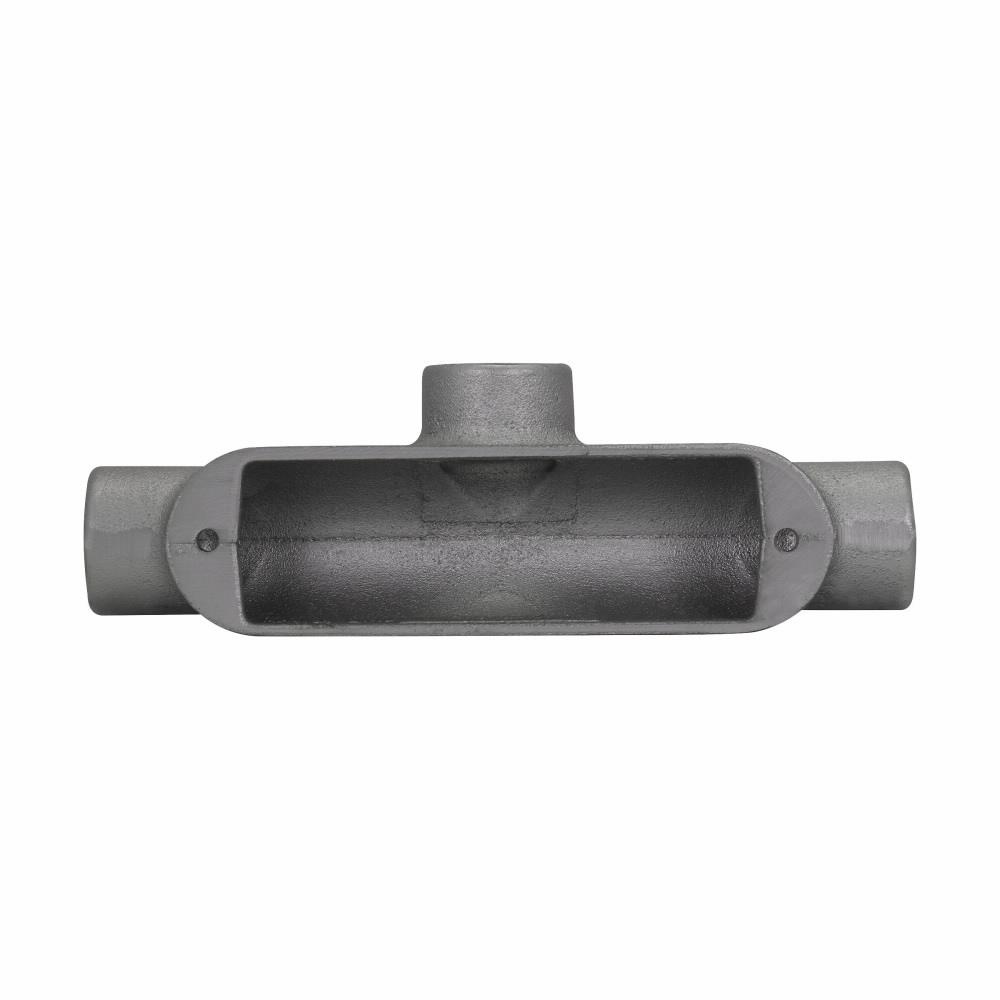

Crouse Hinds BT9 Mogul Conduit Body
Part Number # BT9
SKU # 2322970
$1321.30 / Each
Typical price:$1744.12 / Each
Crouse Hinds BT9 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | BT9 |
| SKU #: | 2322970 |
| Capacity: | 375 cu-in |
| Dimensions: | 9-3/16 in L x 2-3/16 in W x 2-11/16 in H |
| Hub Size: | 3-1/2 in |
| Type: | Type T |
| Connection type: | NPT/Screw |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39131708 |
| UPC: | 00782274108131 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1321.30 / Each
Typical price:$1744.12 / Each
Quantity:
- EATON Crouse-Hinds Condulet Mogul Conduit Body, Type T, 3-1/2 in Hub, 3 Hubs, 375 cu-in Capacity, NPT/Screw, Copper-Free Aluminum, 9-3/16 in L x 2-3/16 in W x 2-11/16 in H
BT9 Application
Industry Facilities and Factories ApplicationsBT9 Item Features
- Long openings
- Provision for easy bend
- Taper tapped hubs with integral bushings
- Stainless steel cover screw
- Covers are designed with integral gasket
- Act as pull outlets for conductors that are stiff, due to large size or type of insulation
- Provide the longer openings needed when pulling large conductors
- Prevent sharp bends and kinks in large conductors
- Provide ample openings for splices and taps
- Provide access to wiring for maintenance and future system changes
- Neoprene gasket
BT9 Standards
UL 514B|CSA C22.2 No. 18|Federal Specification W-C-586DSKU #2322970Part Number #BT9UNSPSC39131708UPC00782274108131
