Part Number # CCP6022BC
SKU # 2446504
Image Disclaimers Message
CCP6022BC

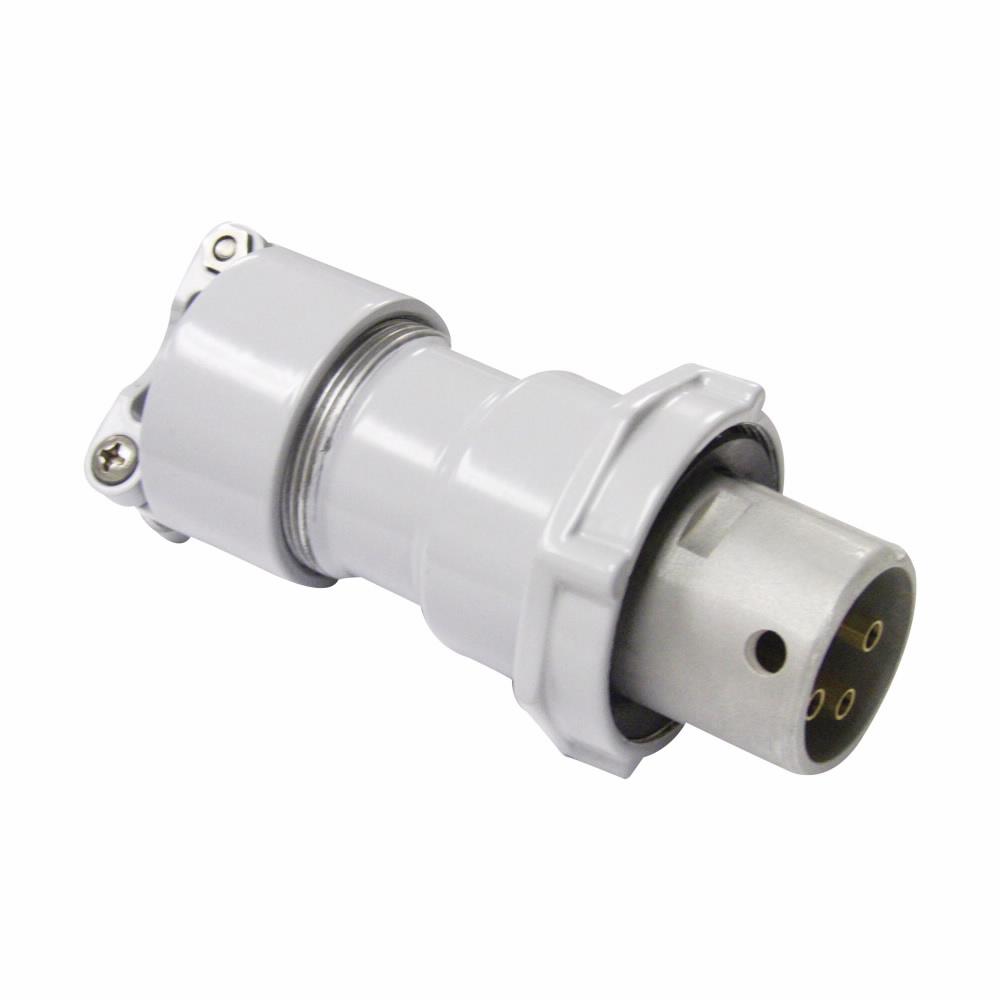

Crouse Hinds CCP6022BC
Part Number # CCP6022BC
SKU # 2446504
$877.79 / Each
Typical price:$1158.68 / Each
Crouse Hinds CCP6022BC Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CCP6022BC |
| SKU #: | 2446504 |
| Amperage Rating: | 60 A |
| Dimensions: | 3-3/4 in Dia x 8-1/6 in L |
| Frequency Rating: | 50 to 400 Hz |
| Horsepower: | 50 hp |
| NEMA Rating: | NEMA 4/4X |
| Number of Poles: | 2 |
| Number of Wires: | 2 |
| Series: | CCP |
| Terminal Type: | Pressure Plate |
| Type: | Grounding Style 1 Lockout Reverse Interior Watertight |
| Color: | Natural |
| Country of origin: | MX |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121404 |
| UPC: | 00066227627752 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$877.79 / Each
Typical price:$1158.68 / Each
Quantity:
- Crouse-Hinds PowerMate Pin and Sleeve Plug, Grounding Style 1 Lockout Reverse Interior Watertight, Series: CCP, 600 VAC, 250 VDC, 60 A, 50 hp, 50 to 400 Hz Frequency, 2 Pole, 2 Wires, NEMA 4/4X NEMA Rating, Industrial Grade, Pressure Plate Terminal, Copper-Free Aluminum, Natural, 3-3/4 in Dia x 8-1/6 in L Dimensions
CCP6022BC Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motor Generator Sets, Compressors, Heating and Cooling Units, Welders, Lighting and Drilling Rig Systems ApplicationsCCP6022BC Item Features
- Style 1 units complete the grounding circuit through the metallic plug shell, receptacle housing or connector shell
- The PowerMate offering supports modularity of drilling rig systems by providing safe and reliable power connections for rigging up and rigging down equipment quickly and efficiently
- Guarantees isolated power supply with OSHA compliant lockout/tagout
- Ensures plug cannot be inserted into receptacle when maintenance is being performed downstream of power supply
- Used on SCR/VFD houses to provide power to rig equipment such as shakers, agitators, lighting circuits, mud pumps, motors
- This offering is the ideal rig power connection solution providing longer product life, reduced maintenance, enhanced safety and easy installation
- Epoxy powder coated finish for increased corrosion-resistance
- 0.39 to 1.375 in Dia cable
- 8 to 4 AWG extra flex wire
CCP6022BC Standards
CE Certified|cULus Listed|CSA 22.2 182.1|IEC 60309-1|IEC 60309-2|UL 1682|UL 1686|NEC CertifiedSKU #2446504Part Number #CCP6022BCUNSPSC39121404UPC00066227627752
