Part Number # CESD4233
SKU # 2200964

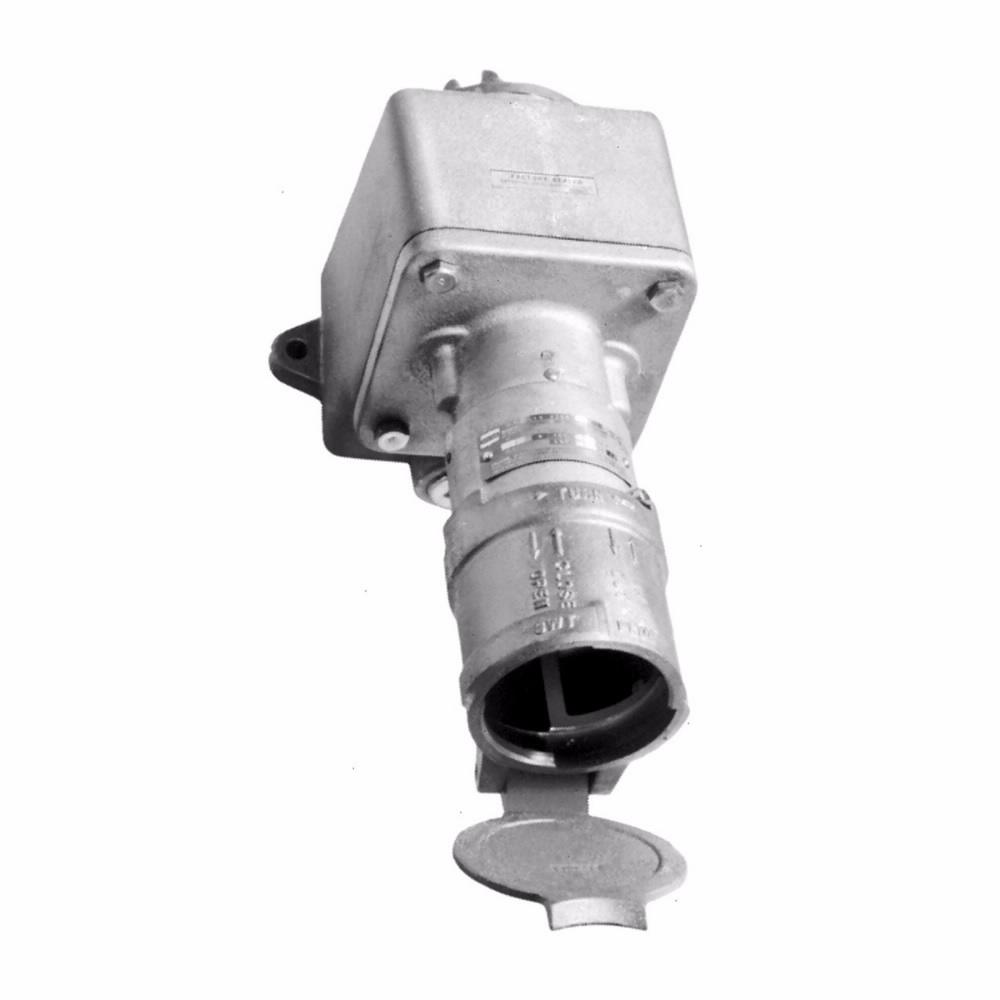

Image provided may only be a representation of
final product and may include optional equipment
CESD4233
Crouse Hinds CESD4233 Receptacle
Part Number # CESD4233
SKU # 2200964
Crouse Hinds CESD4233 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CESD4233 |
| SKU #: | 2200964 |
| Amperage Rating: | 30/60 A |
| Dimensions: | 9-5/8 in L x 7-1/4 in W x 13-1/2 in H |
| Frequency Rating: | 60 Hz |
| Horsepower: | 3 hp |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Series: | CESD |
| Type: | Style 2 1-Phase Explosionproof Factory Sealed Through-Feed |
| Country of origin: | US |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274128108 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds CESD4233 Receptacle
Brand: Crouse Hinds
Part Number: CESD4233
Crouse-Hinds Arktite Receptacle, Style 2 1-Phase Explosionproof Factory Sealed Through-Feed, Series: CESD, 120 to 240/480 VAC, 30/60 A, 3 hp, 60 Hz Frequency, 3 Pole, 2 Wires, Feraloy Iron Alloy, 9-5/8 in L x 7-1/4 in W x 13-1/2 in H Dimensions
Additional Description: CRHD-CESD4233 (N) CES-CESD 60AMP-ARKTITE HAZ LO HUBS 1 PIPE PLG 1 1/4 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Arktite CESD receptacle, 30A/60A, Through feed, 2-wire, 3-pole, Brass or hard-drawn copper contacts, Style 2, 3 HP, Feraloy iron, Single-phase, Spring door, 1-1/4", Delay action circuit breaking, 120-240/480 Vac
CESD4233 Application
For petroleum refineries, chemical, petrochemical plants and other process industry facilities where similar hazards exist, motor generator sets, compressors, conveyors, portable tools and lighting systems, industrial facilities, factories facility, power distribution and control applicationsCESD4233 Item Features
- CESD receptacles are equipped with a delayed action rotating sleeve which prevents complete withdrawal of the CPH plug-in one continuous movement
- Receptacles are factory sealed to simplify installation and wiring
- The 30 a receptacles are provided with pressure terminals for field connection
- The delayed action feature permits the plug to be used as an emergency push pull switch
- Details of operation are illustrated and described to the right
- The 60 a receptacles have flexible leads
- 30 a at 480 VAC/60 a at 120 to 240 vac
- 120 to 240 vac
CESD4233 Standards
UL 1010|ANSI Specified|CSA C22.2 182.1|Class I, Division 1/2, Group C/D|NEC Certified|CEC CertifiedSKU #2200964Part Number #CESD4233UNSPSC39121406UPC00782274128108
