Part Number # CFS250-20232-M15
SKU # 2311455
CFS250-20232-M15

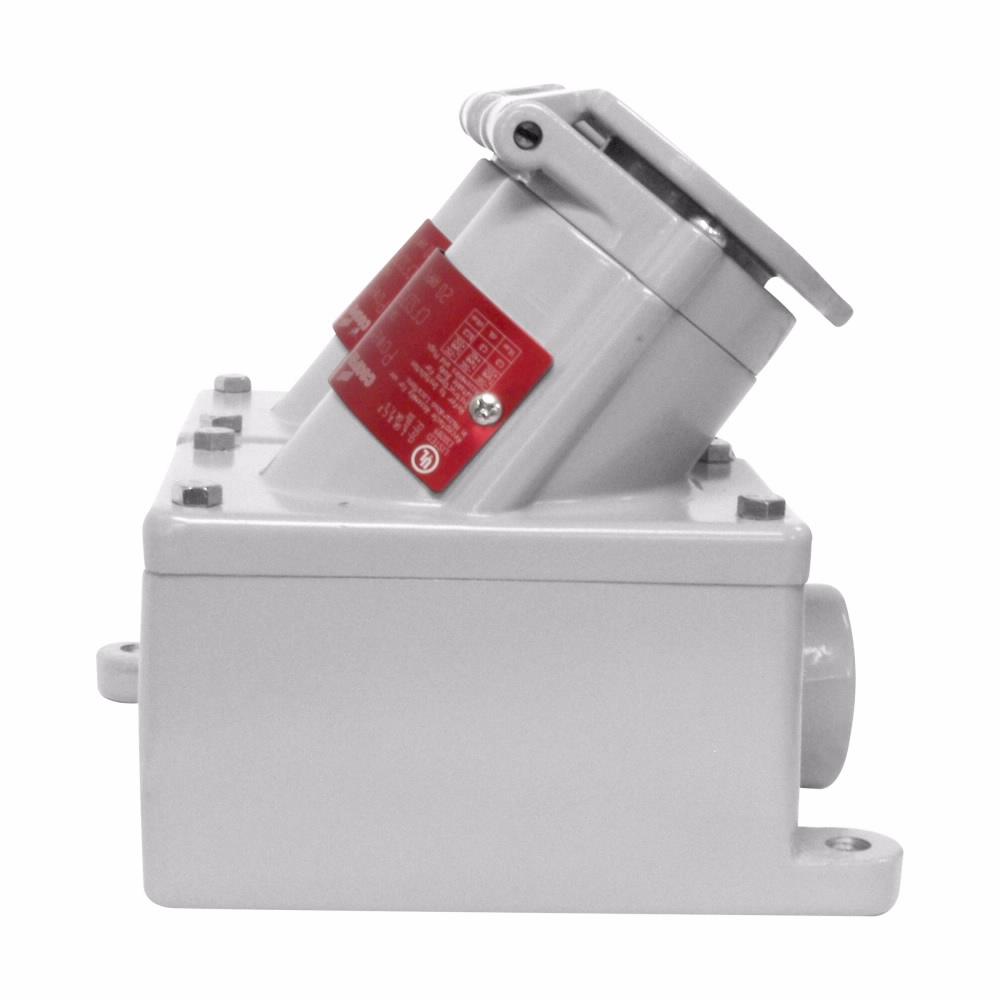

Crouse Hinds CFS250-20232-M15 Receptacle and Mounting Box
Part Number # CFS250-20232-M15
SKU # 2311455
Crouse Hinds CFS250-20232-M15 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CFS250-20232-M15 |
| SKU #: | 2311455 |
| Dimensions: | 5.7 in L x 5.87 in W x 6.37 in H |
| Type: | 3-Phase 2-Gang Dead Front |
| UNSPSC: | 39121406 |
| UPC: | 00662276517622 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds CFS250-20232-M15 Receptacle and Mounting Box
Brand: Crouse Hinds
Part Number: CFS250-20232-M15
Crouse-Hinds PowerGard Receptacle Assembly, 3-Phase 2-Gang Dead Front, 250 VAC, 20 A, 3 Pole, 2 Wires, -25 to 40 deg C, Screw Terminal, Aluminum, Gray, 5.7 in L x 5.87 in W x 6.37 in H Dimensions
Additional Description: CRHD-CFS250-20232-M15 (N) REC DF 20A 250V DE DL GNG 1/2 PWRGD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series PowerGard receptacle assembly, 20A, Two-wire, three-pole, Copper-free aluminum, Two-gang, Dead end, 1/2", M15 model, 250 Vac
CFS250-20232-M15 Application
Industrial Facilities, Factories Facility, Power Distribution, Control, Oil, Gas, Hazardous and Wet Locations ApplicationsCFS250-20232-M15 Item Features
- Universal footprint provides field flexibility for retrofits or installation in tight places
- Stainless steel external hardware eliminates corrosion on critical components and extends product life
- Hex head screws allow for easy achievement of specified torque values
- Rejects standard NEMA/EEMAC plug configurations that could potentially cause an arc in hazardous areas, plug cannot be disengaged under load
- Epoxy powder coat finish, integral gasket and stainless steel hardware ensure suitability for NEMA 3RX application
- Vibration tested at 1G to ensure continuity in high vibration areas
- Spring loaded faceplate design prevents receptacle from being energized without the use of UL certified hazardous locations plug, rugged Krydon faceplate wont crack after continued use in the field
- Molded in place phase and ground markings reduce installation errors
- Easy to wire saddle clamp terminals reduce installation time and effort, receptacle suitable for feed-through/loop wiring
- Combo head, stainless steel screws make replacement easy
- Clearly marked operating instructions ensure proper operation and safety when plugging and unplugging
- Haz rated
CFS250-20232-M15 Standards
ANSI 1010|CEC Certified|Class I Division 1 Groups C/D|Class I Division 2 Groups B/C/D|CSA C22.2 30/159|cULus 10289|NEC Certified|UL File No. 1010|UL File No. 1203SKU #2311455Part Number #CFS250-20232-M15UNSPSC39121406UPC00662276517622
Image provided may only be a representation of final product and may include optional equipment
