Part Number # CPH7714
SKU # 10217
Image provided may only be a representation of
final product and may include optional equipment
CPH7714

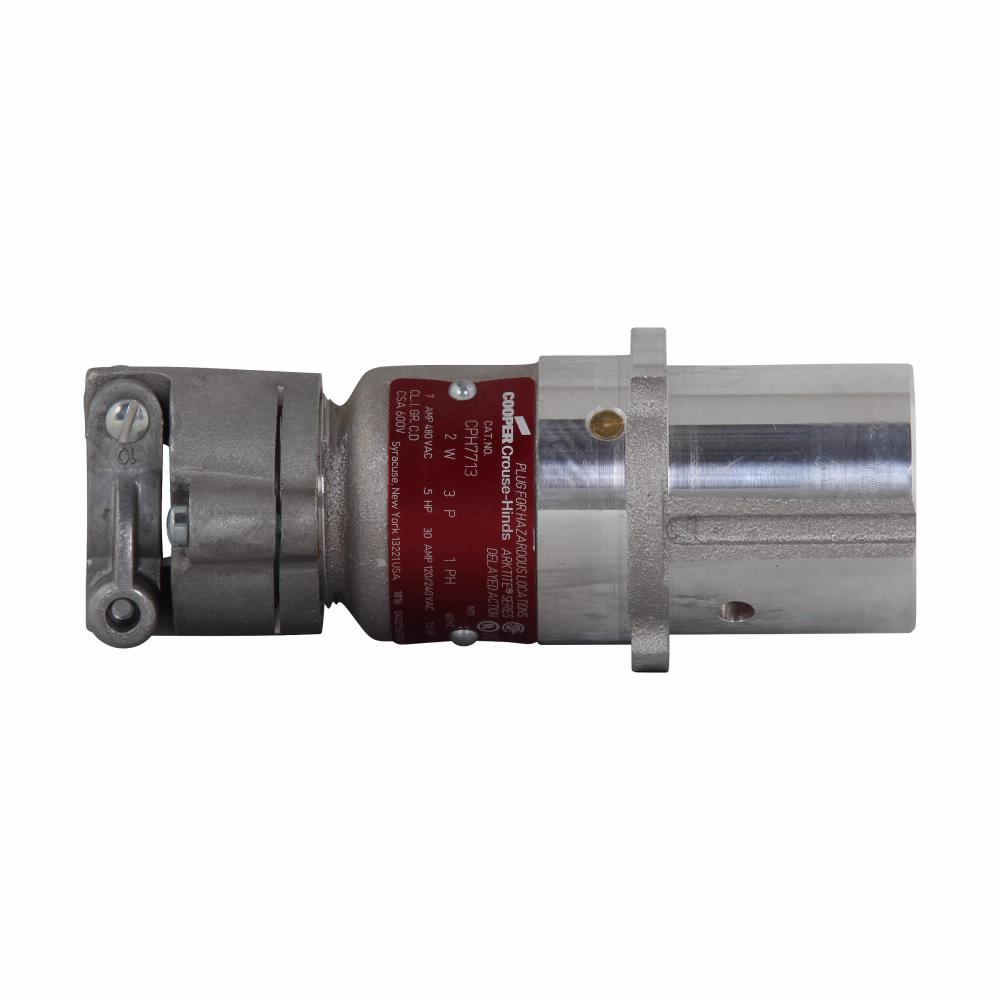

Crouse Hinds CPH7714 Pin and Sleeve Plug
Part Number # CPH7714
SKU # 10217
Crouse Hinds CPH7714 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CPH7714 |
| SKU #: | 10217 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 4-1/8 in Dia x 10-1/8 in L |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Horsepower: | 1 hp, 3 hp |
| NEMA Rating: | NEMA 4 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | CPH |
| Type: | Explosionproof Factory Sealed Grounding Style 1 Watertight Reverse Interior, Grounding Style 1 Explosionproof Factory Sealed Watertight Reverse Interior |
| Country of origin: | US |
| Material: | Cast Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00782274173306 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds CPH7714 Pin and Sleeve Plug
Brand: Crouse Hinds
Part Number: CPH7714
EATON Crouse-Hinds Arktite Pin and Sleeve Plug, Grounding Style 1 Explosionproof Factory Sealed Watertight Reverse Interior, Series: CPH, 600 VAC/250 VDC, 100 A, 1 hp, 3 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 4 NEMA Rating, Industrial Grade, Cast Aluminum, Natural, 4-1/8 in Dia x 10-1/8 in L Dimensions
Additional Description: CRHD-CPH7714 ARKTE PLG MECH CAB GRIP/NEO BUSH .375 TO .875
Catalog Description: Eaton Crouse-Hinds series Arktite CPH plug, 7A/30A, 0.375-0.875" cable diameter, Three-wire, four-pole, Brass or copper contacts, Style 2, 1 HP/3 HP, Copper-free alum, 3-phase, Mechanical cable grip and neoprene bushing, 120-240/480 Vac
CPH7714 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motor Generator Sets, Compressors, Conveyors, Portable Tools, Lighting Systems, Petroleum Refineries, Chemical and Petrochemical Plants ApplicationsCPH7714 Standards
UL 514|UL 1010|UL 1682|CSA C22.2|Class I, Division 1 and 2 Group DSKU #10217Part Number #CPH7714UNSPSC39121402UPC00782274173306
