Crouse Hinds CPS532101 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CPS532101 |
| SKU #: | 2435607 |
| Amperage Rating: | 30 A |
| Dimensions: | 3-1/2 in L x 7-1/4 in W x 6-23/32 in H |
| Series: | CPS |
| Terminal Type: | Pressure Wire |
| Type: | 1-Gang Angle Delayed Action Dead End Factory Sealed |
| Country of origin: | US |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274183701 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds CPS532101
Brand: Crouse Hinds
Part Number: CPS532101

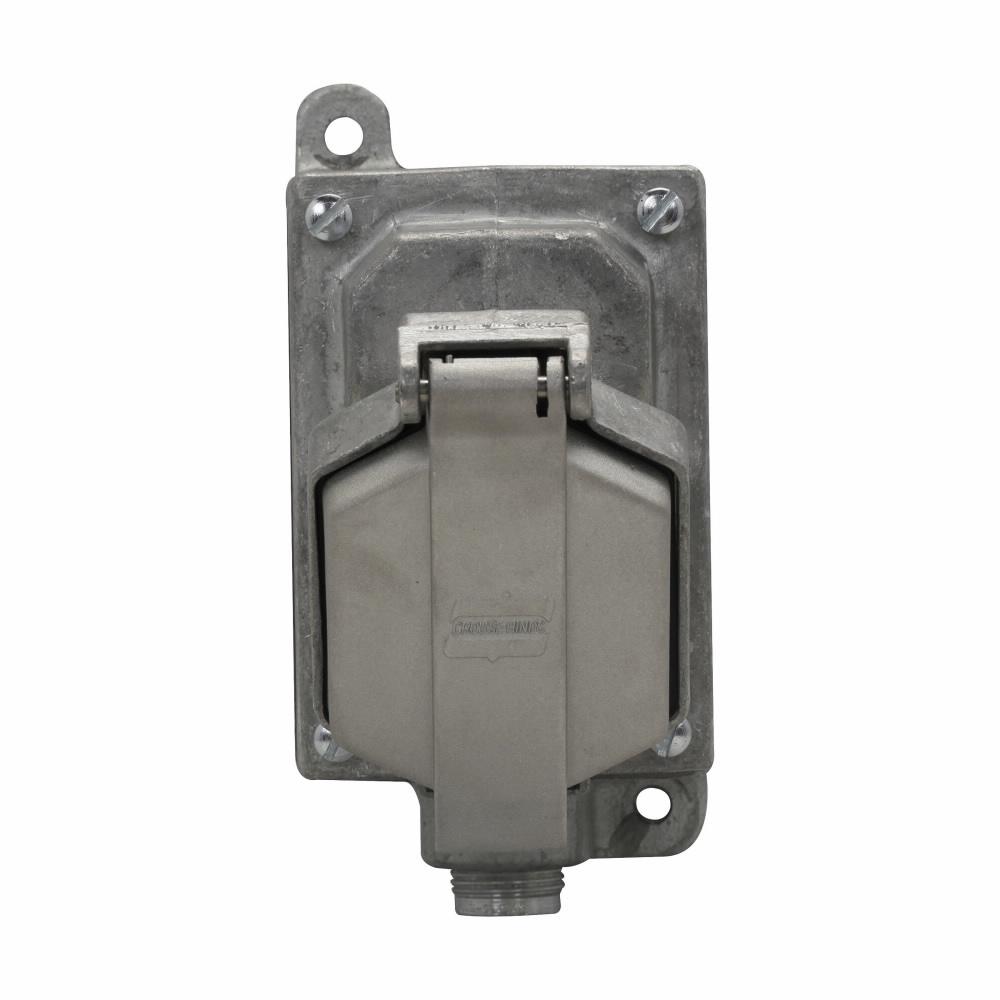

Crouse-Hinds Arktite® Receptacle Assembly, 1-Gang Angle Delayed Action Dead End Factory Sealed, Series: CPS, 125 to 250 VAC/480 VAC, 30 A, Pressure Wire Terminal, 3-1/2 in L x 7-1/4 in W x 6-23/32 in H Dimensions
Additional Description: CRHD-CPS532 101 (N) 30A 2W3P ARK DEL DE SGL GNG RCP ASSY 1/2 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Arktite CPS receptacle assembly, 7A/30A, Dead end, 2-wire, 3-pole, Brass contacts, 60 Hz, Style 2, 0.5 HP/1.5 HP, Copper-free alum, Single-gang, Factory sealed, 1/2", Delay action circuit brk, 125-250 Vac/480 Vac
CPS532101 Application
Damp and Corrosive Areas, Industrial Facilities, Factories Facility, Power Distribution and Control and Wet Location ApplicationsCPS532101 Includes
1/2 in HubCPS532101 Item Features
- CPS receptacles are equipped with a rotating mechanism which prevents complete withdrawal of the CPP plug-in one continuous movement
- CPS receptacles are factory sealed to simplify installation and wiring - external seals are not required
- With portable electrically operated devices such as motor-generator sets, compressors, conveyors, portable tools, lighting systems and similar equipment
- In locations which are hazardous due to the presence of flammable vapors or gases
- In petroleum refineries, chemical and petrochemical plants and other process industry facilities where similar hazards exist
- 3/8 to 7/8 in Dia cable
- Receptacles will take any of the plugs grouped in the bracket opposite the receptacle listings
- 7A, 1/2 hp, 480 VAC, csa certified units are rated at 600 vac at 7 a
- Grounding style two through extra pole and shell
CPS532101 Standards
NEC Certified|CEC Certified|Class I, Division 1/2, Group C/D|CSA C22.2 30|UL 1203SKU #2435607Part Number #CPS532101UNSPSC39121406UPC00782274183701
