Part Number # CPS532R
SKU # 10237
Image Disclaimers Message
CPS532R

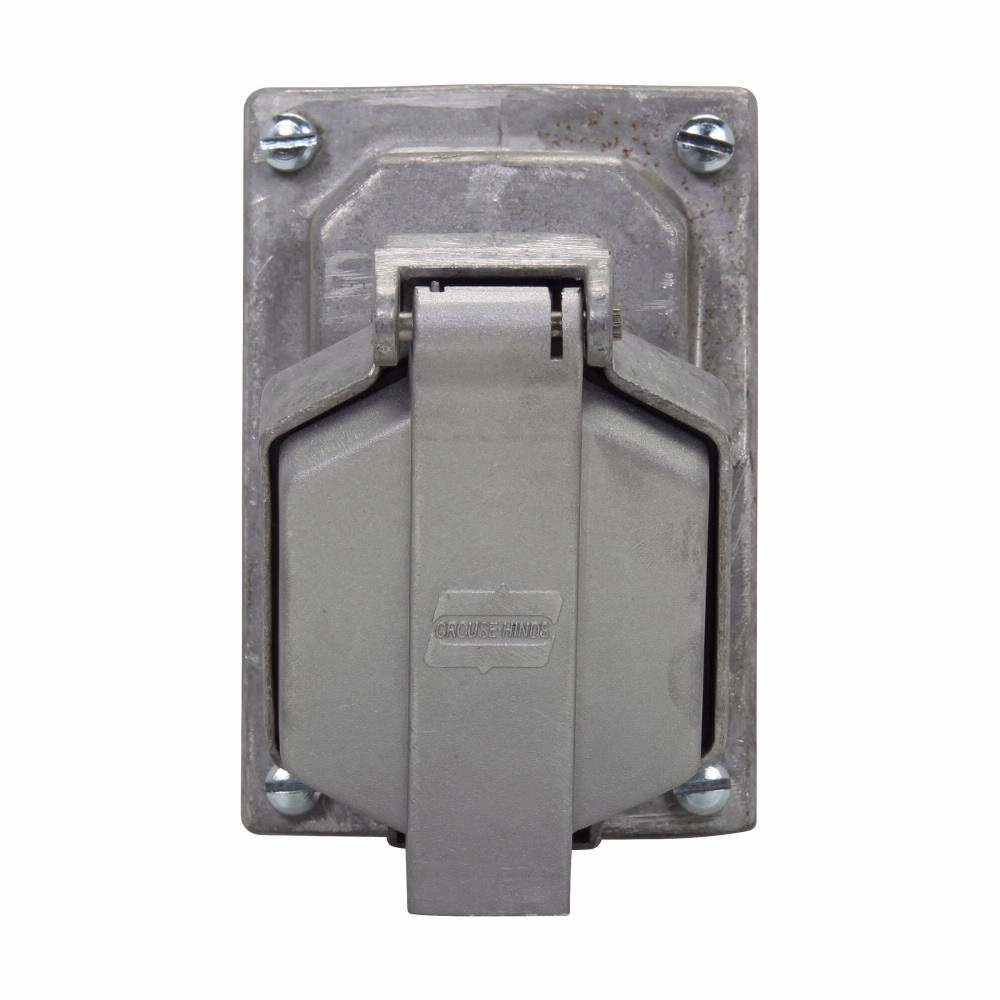

Crouse Hinds CPS532R Pin and Sleeve Receptacle Unit
Part Number # CPS532R
SKU # 10237
$1474.17 / Each
Typical price:$1945.90 / Each
Crouse Hinds CPS532R Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CPS532R |
| SKU #: | 10237 |
| Amperage Rating: | 30, 30 A |
| Frequency Rating: | 60, 60 Hz |
| Horsepower: | 1-1/2, 1-1/2 hp |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Series: | CPS, CPS Series |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | Delayed Action Factory Sealed |
| Country of origin: | US |
| Material: | Die Cast Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274184906 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1474.17 / Each
Typical price:$1945.90 / Each
Quantity:
- Crouse-Hinds Arktite PowerPlus Pin and Sleeve Receptacle Unit, Delayed Action Factory Sealed, Series: CPS Series, 125/250 VAC, 30 A, 1-1/2 hp, 60 Hz Frequency, 3 Pole, 2 Wires, Pressure Wire Terminal, Die Cast Aluminum
CPS532R Application
For stainless steel terminal housing and wet locations, industrial facilities, factories facility, power distribution and controlCPS532R Item Features
- The delayed action feature permits the plug to be used as an emergency push pull switch
- CPS receptacles are equipped with a rotating mechanism which prevents complete withdrawal of the CPP plug-in one continuous movement
- CPS receptacles are factory sealed to simplify installation and wiring - external seals are not required
- Back boxes used for straight type receptacles are available with a variety of hub arrangements in 1/2 in and 3/4 in size
- Explosionproof
CPS532R Standards
NEC Compliant|CEC Compliant|Class I, Division 1 and 2 Group C and D|CSA C22.2 30|UL 1203SKU #10237Part Number #CPS532RUNSPSC39121406UPC00782274184906
