Part Number # CRC6034BC
SKU # 2295073
CRC6034BC

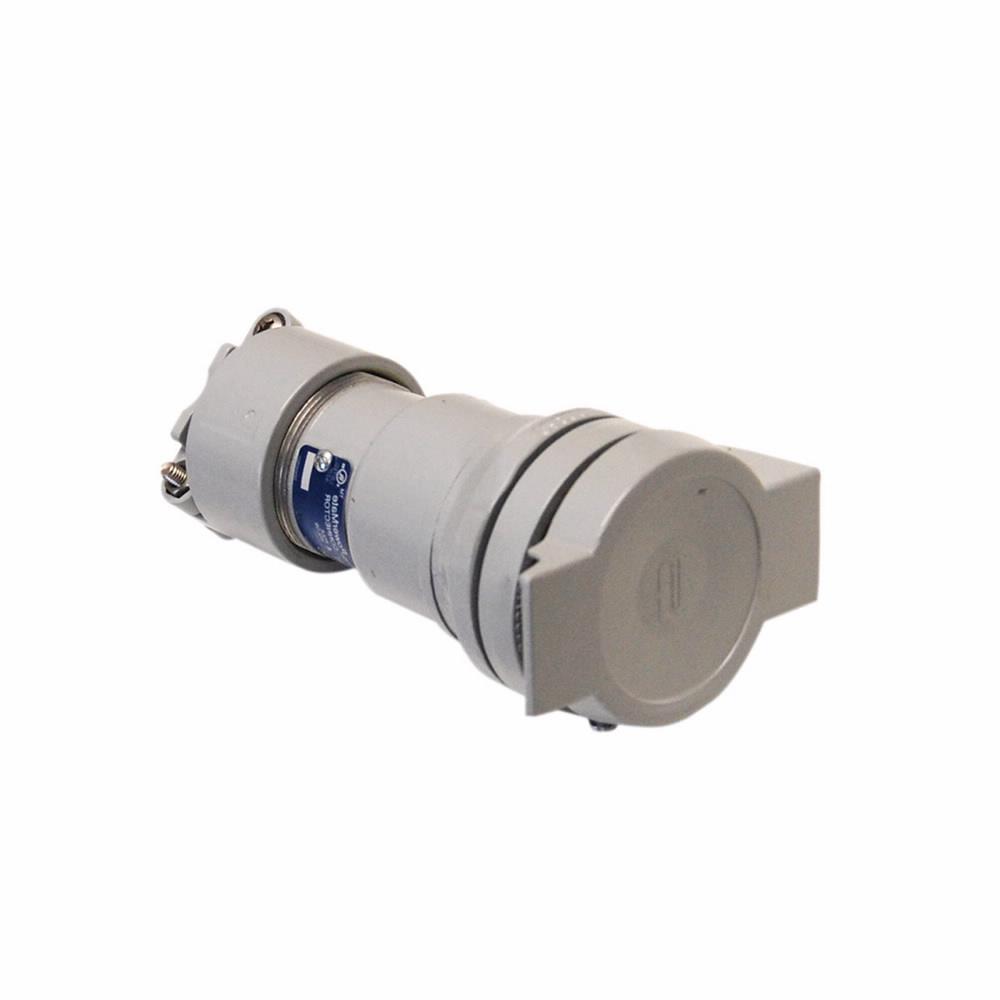

Crouse Hinds CRC6034BC Cord Connector
Part Number # CRC6034BC
SKU # 2295073
Crouse Hinds CRC6034BC Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | CRC6034BC |
| SKU #: | 2295073 |
| Dimensions: | 4-1/2 in Dia x 4-1/4 in L |
| Series: | CPS |
| Type: | Grounding Style 2 Watertight |
| UNSPSC: | 39121404 |
| UPC: | 00662276276598 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds CRC6034BC Cord Connector
Brand: Crouse Hinds
Part Number: CRC6034BC
Crouse-Hinds PowerMate Cord Connector, Grounding Style 2 Watertight, Series: CPS, 600 VAC/250 VDC, 60 A, 50 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 4X NEMA Rating, Copper-Free Aluminum, 4-1/2 in Dia x 4-1/4 in L Dimensions
Additional Description: CRHD-CRC6034BC (N) CONNECT PWRMT 60A 3W4P .39 TO 1.375 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series PowerMate CRC connector, 60A, 0.440-1.375", Three-wire, four-pole, Style 2, Copper-free aluminum, 600 Vac/250 Vdc
CRC6034BC Application
Industrial Facilities, Factories, Power Distribution and Control Applications, Motor Generator Sets, Compressors, Heating, Cooling, Welders and Lighting ApplicationsCRC6034BC Item Features
- Fixed safety insulator plastic barrier between insulator body and metal housing prevents electrical shock and shorts, fixed-in-place design ensures insulator will not be lost or discarded during cable termination process
- Eight-point diamond cable clamps, eight points of contact around diameter of cable for increased grip and even distribution of pressure ensures cable jacket does not get pinched, eliminating potential for damage to internal conductors
- Split pin contact design provides nearly 360 deg of contact at every insertion, ensuring protection against heat rise and eliminating arcing on critical surfaces
- Extended cable range offers the industrys largest cable diameter range and is specifically designed, third party tested and certified for use with type P cable, sealing system utilizes industry standard bushings
- Enhanced nomenclature and nameplate mechanically attached nameplate increases ease of part configuration identification and ensures critical information is permanently fixed to product
- Spring and threaded cover each 30, 60, 100 and 150 a receptacle comes with both spring cap and threaded cap to provide a variety of cover options, 200 a comes with spring cap and wing nuts to ensure environmental sealing
- Combination drive stainless steel hardware stainless steel external hardware eliminates corrosion on critical components and extends product life and allows for more than one option for installation tools
- Handle body thick epoxy powder coating (standard finish on PowerMate products) reduces corrosion and increases life of product, industry standard profile increases ease of plugging and unplugging
- Combination slot and hex mechanical lugs hex head allows for easy achievement of specified torque value and increases ease of installation by allowing for more than one option for installation tools
- Insulator assemblies unimpeded, easy access phase and ground terminals make wire termination quick and easy, molded in place markings for phase/ground and conductor strip lengths reduce installation errors (available on 60, 100 and 150 a only)
- 0.39 to 1.375 in cord range
- Copper-free aluminum
- Epoxy powder coated
CRC6034BC Standards
cUL Listed|UL 1682|UL 1686|IEC 60309-1/60309-2|CSA 22.2 182.1|OSHA CompliantSKU #2295073Part Number #CRC6034BCUNSPSC39121404UPC00662276276598
Image provided may only be a representation of final product and may include optional equipment
