Part Number # DBR56742
SKU # 2310295
Image Disclaimers Message
Brand: Crouse Hinds
DBR56742

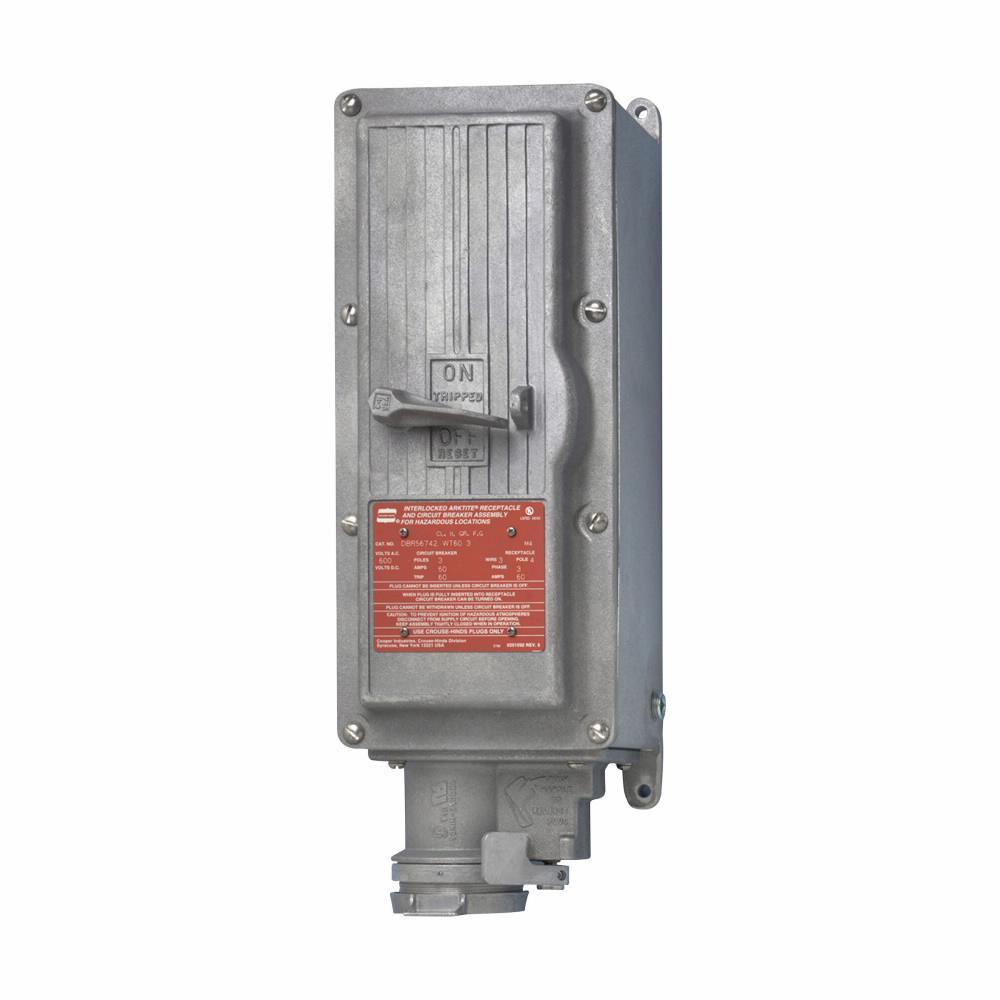

Crouse Hinds DBR56742 Interlocked Receptacle
Part Number # DBR56742
SKU # 2310295
$5445.32 / Each
Typical price:$7187.82 / Each
Crouse Hinds DBR56742 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | DBR56742 |
| SKU #: | 2310295 |
| Amperage Rating: | 60 A |
| Dimensions: | 22-3/4 in L x 7-1/4 in W x 8-1/8 in H |
| Enclosure: | NEMA 3/9F/9G/12 |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | DBR |
| Type: | Dust Ignition Proof Raintight |
| Color: | Natural |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00782274217802 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5445.32 / Each
Typical price:$7187.82 / Each
Quantity:
- Crouse-Hinds Arktite Interlocked Receptacle, Dust Ignition Proof Raintight, Series: DBR, 600 VAC, 60 A, 4 Poles, 3 Wires, NEMA 3/9F/9G/12 Enclosure, Copper Free Aluminum, Natural, 22-3/4 in L x 7-1/4 in W x 8-1/8 in H
DBR56742 Application
Motor-Generator Sets, Compressors, Heating, Cooling Units, Conveyors, Grain Processing and Handling Plants ApplicationsDBR56742 Item Features
- Receptacles are mechanically interlocked with circuit breakers to provide disconnect means, short circuit protection and thermal time delay overload protection
- Enclosures are compact and rectangular in shape permitting close spacing
- For maximum safety, the spring door receptacle at the bottom is mechanically interlocked with the circuit breaker operating mechanism
- The circuit breaker cannot be closed until the plug is fully inserted and the plug cannot be withdrawn unless the breaker is open
- Operating handles can be padlocked in either "ON" or "OFF" positions, breakers are trip free of the handles and will open under short circuit or overload even if the handle is locked in the "ON" position
- Enclosure is provided with a drilled and tapped conduit opening at top center, equipped with a threaded in bushing, the size furnished is 1-1/2 in and removing the bushing permits the use of a 2 in conduit
- Fiberglass reinforced polyester plugs and receptacles insulation, brass pressure contacts, leaded red brass crimp/solder contacts
- 1-1/2 in hub
- Stainless steel operating shaft, copper free aluminum body, cover and operating handle, receptacle housing and plug exterior material
- To supply power to portable electrical equipment such as motor generator sets, compressors, heating and cooling units, conveyors and similar equipment
- In locations where hazardous dusts are present, as in grain processing and handling plants, chemical plants and certain food processing industries
DBR56742 Standards
Class II, Div 1, 2, Group F, G Class III, CEC Class II, Div 1, 2, Group G Class III|UL 698/1010|NEC CompliantSKU #2310295Part Number #DBR56742UNSPSC39121406UPC00782274217802
