Part Number # DSD923SA
SKU # 2456739
Image provided may only be a representation of
final product and may include optional equipment
DSD923SA
Crouse Hinds DSD923SA
Part Number # DSD923SA
SKU # 2456739
Crouse Hinds DSD923SA Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | DSD923SA |
| SKU #: | 2456739 |
| Amperage Rating: | 10 A |
| Contact Configuration: | 2NO-2NC |
| Finish: | Natural |
| NEMA Rating: | 3/7B/7C/7D/9E/9F/9G |
| Series: | DSD |
| Type: | 2-Position Factory Sealed Heavy Duty |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122217 |
| UPC: | 00078227457634 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds DSD923SA
Brand: Crouse Hinds
Part Number: DSD923SA

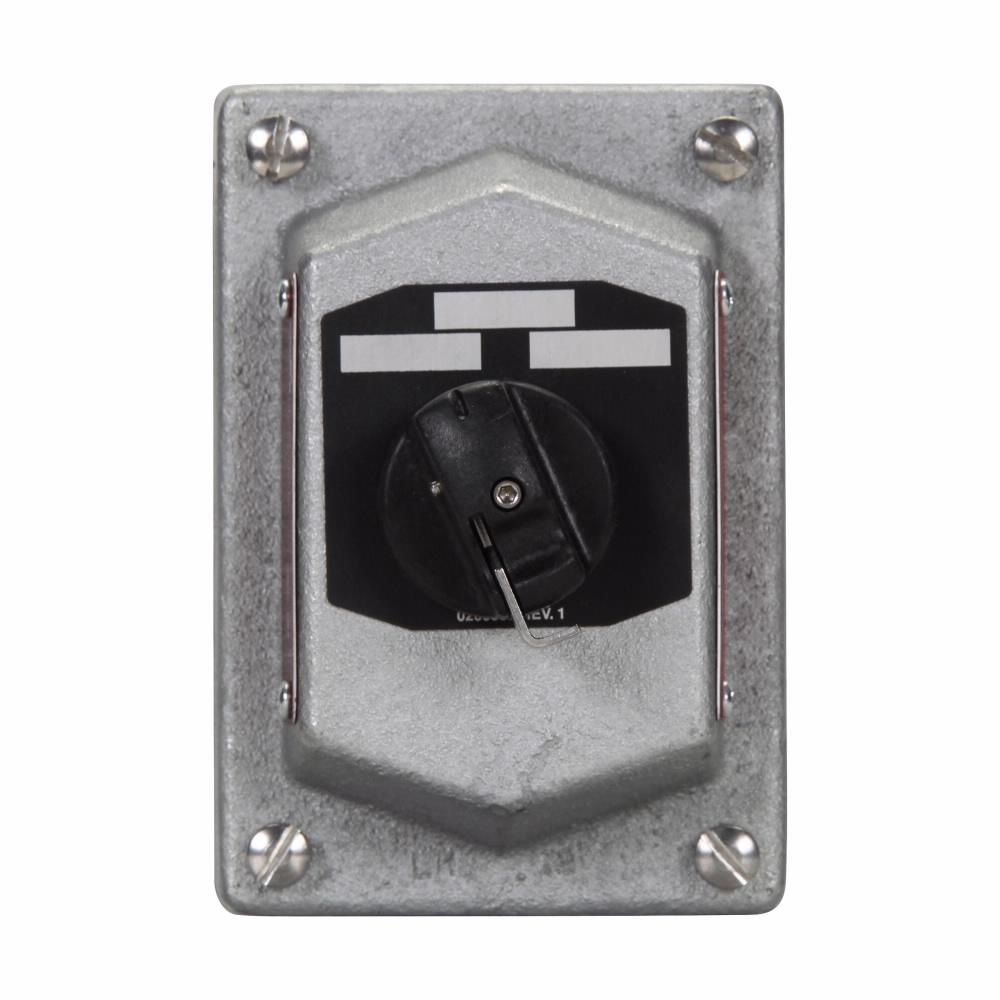

EATON Crouse-Hinds Selector Switch Cover and Sub-Assembly Device, 2-Position Factory Sealed Heavy Duty, Series: DSD, 600 VAC, 10 A, 2NO-2NC Contact Configuration, Maintained Contact Mode, 3/7B/7C/7D/9E/9F/9G NEMA Rating, Aluminum, Natural
Additional Description: CRHD-DSD923 SA (N) COVER AND SUB-ASSEMBLY DEVICE 600VAC 10A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series DSD selector switch cover and device sub-assembly, 10A, Copper-free aluminum, 2 position, 2 circuit, Factory sealed, Maintained contact, 600 Vac
DSD923SA Application
Industrial Facilities and Factories, Facility, Power Distribution and Control, For EDSCM modular control device bodies and EDS/EDSC back boxesDSD923SA Item Features
- Large machine screws for fastening covers to bodies
- Lockout hole for padlock having 1/4 in hasp is provided when used with covers for front lever and side rocker type operation
- Lockout provisions on front operated pushbutton marked STOP and off and all selector switch covers
- For covers with front lever and side rocker type operating handles, threaded type shafts and bushings are used to ensure flametightness
- Accurately ground flange for flame tight joint when mated with ground flange on backbox
- Explosion proof, dust ignitionproof and raintight construction
- 2-circuit
- Factory sealed
DSD923SA Standards
Class I, Division 1, 2, Group B, C, D, Class II, Division 1, Group E, F, G, Class II, Division 2, Group F, G, Class III, UL 1203, CEC, CSA C22.2 No. 30 Certified|NEC CompliantSKU #2456739Part Number #DSD923SAUNSPSC39122217UPC00078227457634
