Crouse Hinds E-Z1016-8061 Non-Vulcanized Female Plug
Part Number # E-Z1016-8061
SKU # 2208732
Crouse Hinds E-Z1016-8061 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E-Z1016-8061 |
| SKU #: | 2208732 |
| Amperage Rating: | 190, 190 A |
| Dimensions: | 1.49 in Dia x 7.26 in L |
| Series: | J Series E-Z1016 |
| Type: | Non-Vulcanized |
| Wire Size: | 2 to 1, 2 to 1 AWG |
| Connection type: | Crimp |
| UNSPSC: | 39121406 |
| UPC: | 00662275120380 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E-Z1016-8061 Non-Vulcanized Female Plug
Brand: Crouse Hinds
Part Number: E-Z1016-8061
EATON Crouse-Hinds Cam-Lok Non-Vulcanized Female Plug, Series: J Series E-Z1016, 600 VAC/VDC, 190 A, 2 to 1 AWG Wire, Crimp Connection, Brass Contact, TPE Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, -40 to 105 deg C, White, 1.49 in Dia x 7.26 in L Dimensions
Additional Description: CRHD-E-Z1016-8061 (N) E-Z1016 F P CRMP NO 2 TO NO 1 WH NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok J Series E-Z1016 plug, Up to 190A continuous, #2-#1 AWG, White, Crimp, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
E-Z1016-8061 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power, Motors and GeneratorsE-Z1016-8061 Includes
A200037-23 Contact and E-Z200075-24 InsulatorE-Z1016-8061 Item Features
- E-Z assembly and disassembly - no tools needed
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E-Z1016-8061 Standards
CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2208732Part Number #E-Z1016-8061UNSPSC39121406UPC00662275120380

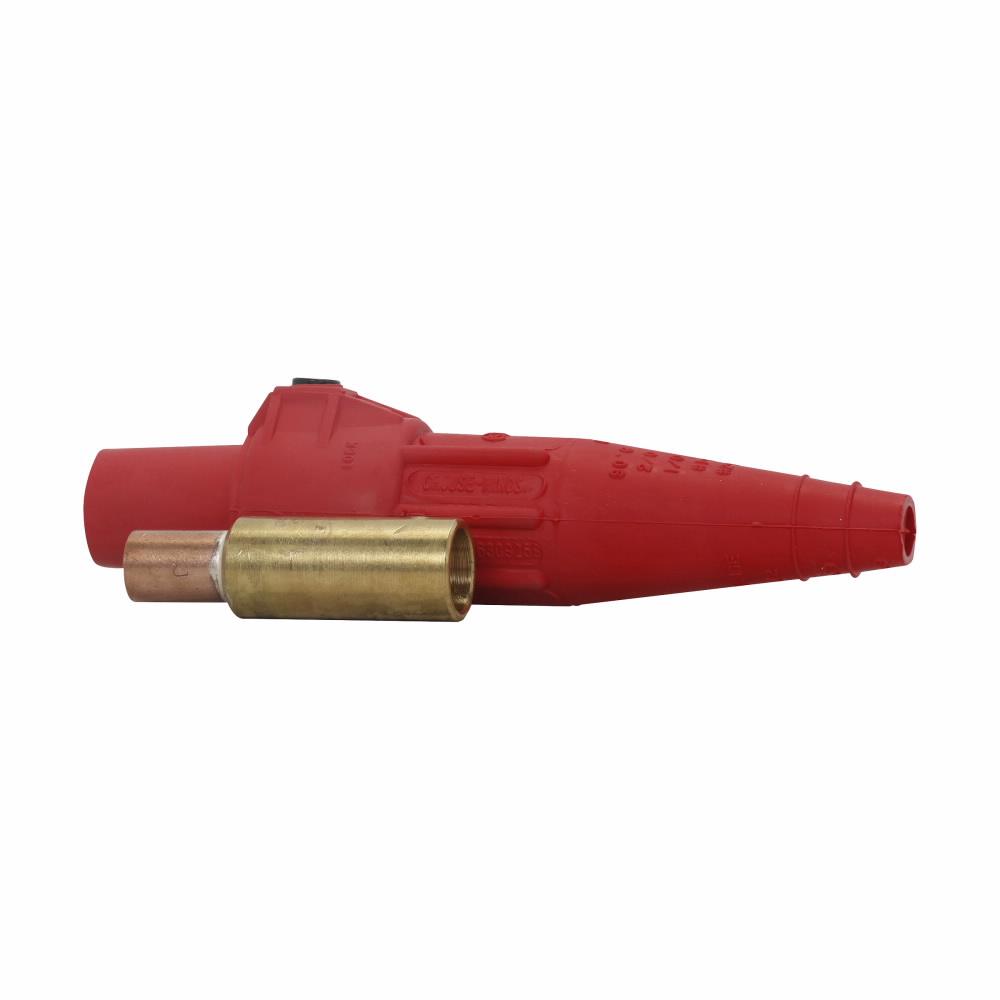

Image provided may only be a representation of final product and may include optional equipment
