E-Z1016-8082

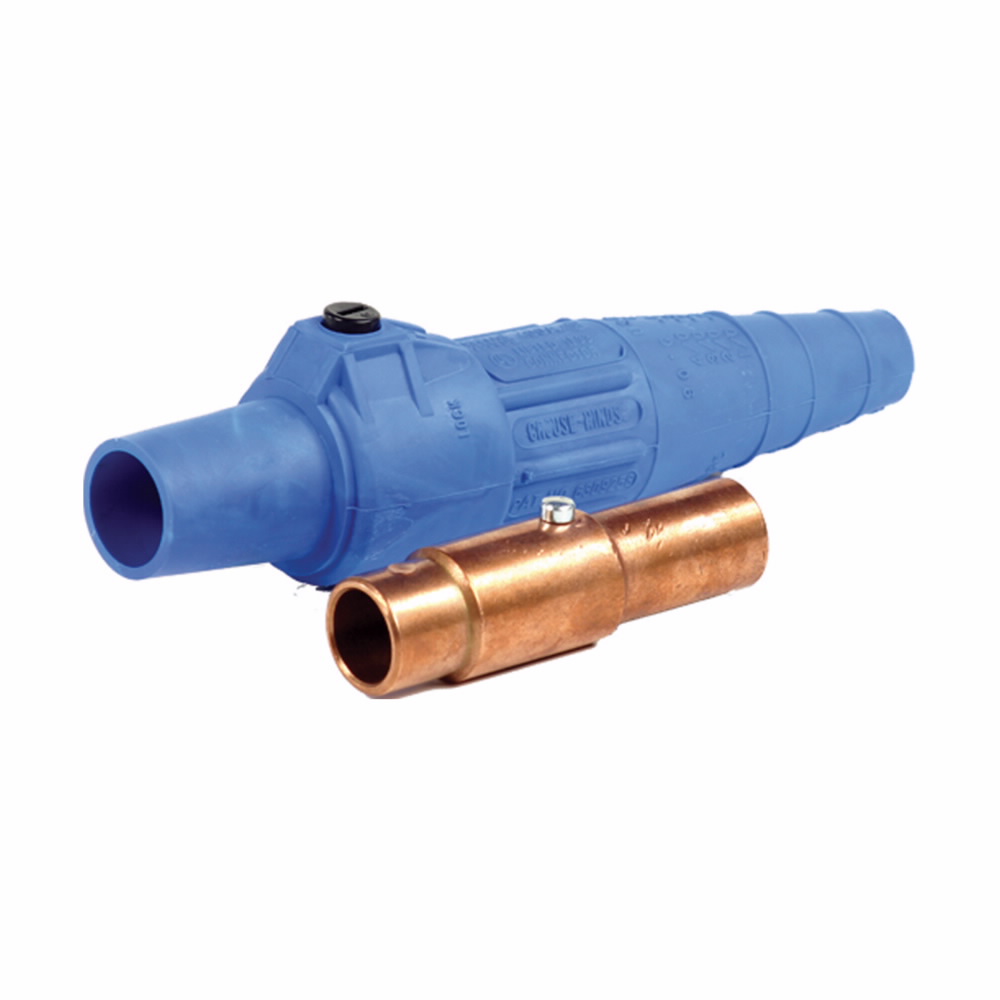

Crouse Hinds E-Z1016-8082 Non-Vulcanized Female Plug
Part Number # E-Z1016-8082
SKU # 2356839
$219.56 / Each
Typical price:$289.82 / Each
Crouse Hinds E-Z1016-8082 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E-Z1016-8082 |
| SKU #: | 2356839 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 1.49 in Dia x 7.26 in L |
| NEMA Rating: | 3R, NEMA 3R |
| Series: | J Series E-Z1016 |
| Specifications: | 1-Pole |
| Temperature Rating (Degrees F): | -40 to 105, -40 to 105 deg C |
| Type: | Non-Vulcanized |
| Wire Size: | 4/0 to 3/0, 4/0 to 3/0 AWG |
| Color: | Red |
| Connection type: | Crimp |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275120472 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$219.56 / Each
Typical price:$289.82 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Non-Vulcanized Female Plug, Series: J Series E-Z1016, 600 VAC/VDC, 400 A, 4/0 to 3/0 AWG Wire, Crimp Connection, Brass Contact, TPE Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, -40 to 105 deg C, Red, 1.49 in Dia x 7.26 in L Dimensions
E-Z1016-8082 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power, Motors and GeneratorsE-Z1016-8082 Includes
A200035-14 Contact and E-Z200075-62 InsulatorE-Z1016-8082 Item Features
- E-Z assembly and disassembly - no tools needed
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E-Z1016-8082 Standards
CSA C22.2 182.3-M1987 LR13963|UL 498 E67181SKU #2356839Part Number #E-Z1016-8082UNSPSC39121406UPC00662275120472
