Part Number # E-Z1016-8350
SKU # 2427980
Image Disclaimers Message
E-Z1016-8350

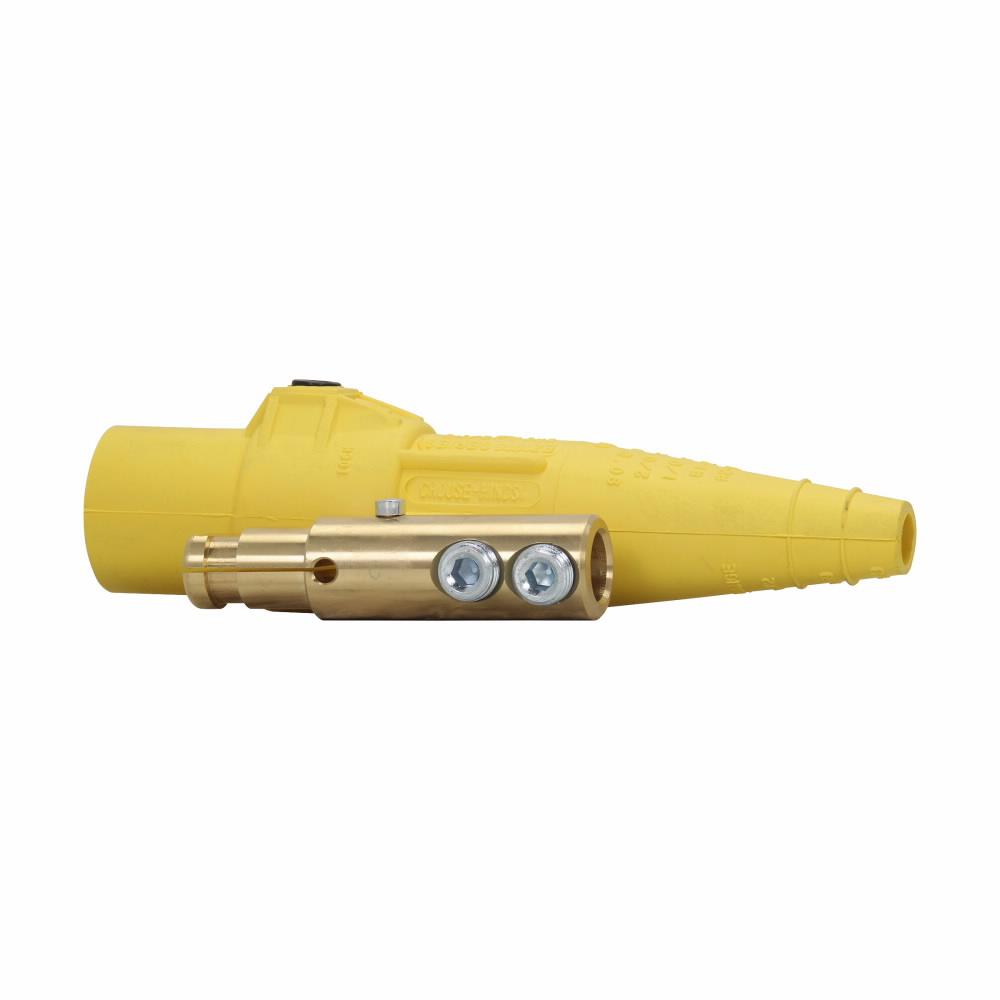

Crouse Hinds E-Z1016-8350 Cam-Lok Non-Vulcanized Male Plug
Part Number # E-Z1016-8350
SKU # 2427980
$66.67 / Each
Typical price:$88.00 / Each
Crouse Hinds E-Z1016-8350 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E-Z1016-8350 |
| SKU #: | 2427980 |
| Amperage Rating: | 300 A |
| Dimensions: | 1.49 in Dia x 7.14 in L |
| NEMA Rating: | NEMA 3R |
| Series: | J Series E-Z1016 |
| Temperature Rating (Degrees F): | -40 to 105 deg C |
| Wire Size: | 2 to 2/0 AWG |
| Color: | Black |
| Connection type: | Double Setscrew |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00066227512051 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.67 / Each
Typical price:$88.00 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Non-Vulcanized Male Plug, Series: J Series E-Z1016, 600 VAC/VDC, 300 A, 2 to 2/0 AWG Wire, Double Setscrew Connection, Brass Contact, TPE Housing Material, NEMA 3R NEMA Rating, -40 to 105 deg C, Black, 1.49 in Dia x 7.14 in L Dimensions
E-Z1016-8350 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems Indoor, OutdoorE-Z1016-8350 Item Features
- E-Z assembly and disassembly - no tools needed
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to provide a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E-Z1016-8350 Standards
CSA C22.2 #1691-12/182.3 LR13963|UL 1691SKU #2427980Part Number #E-Z1016-8350UNSPSC39121406UPC00066227512051
