Brand: Crouse Hinds
E-Z1016-8368

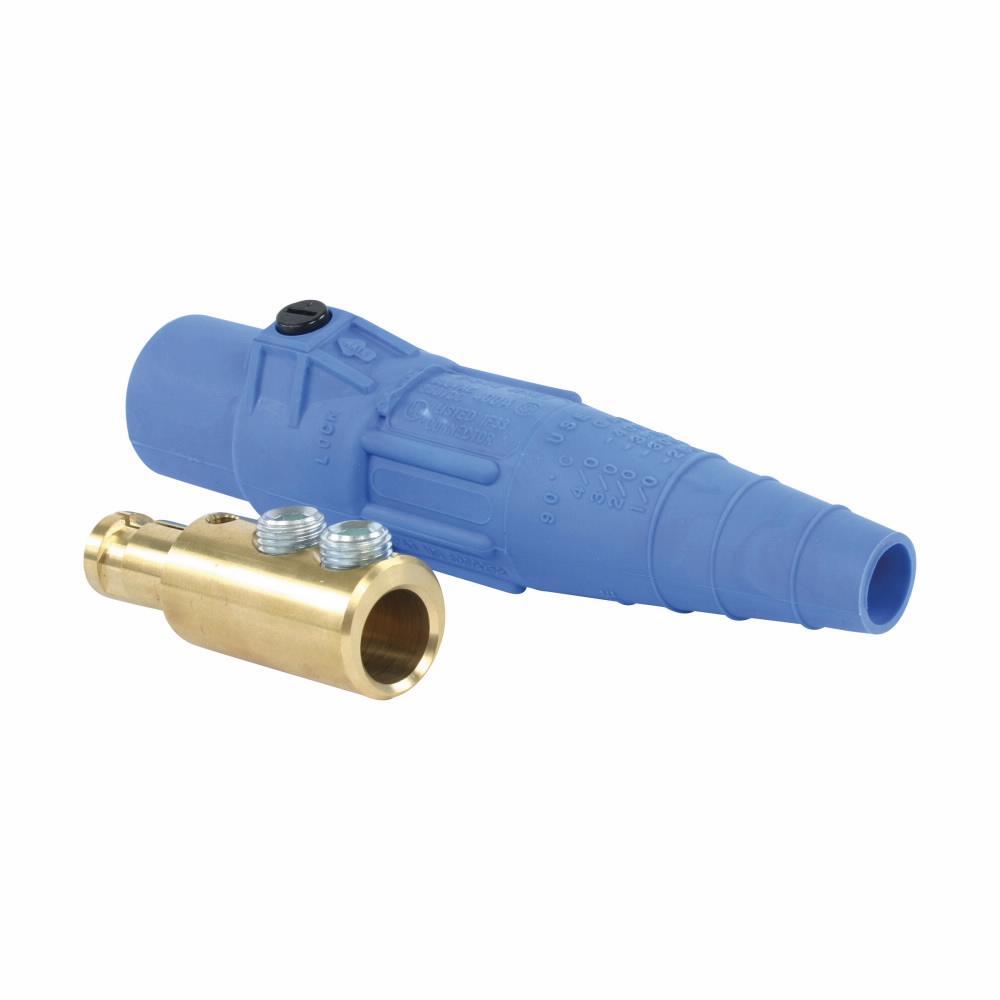

Crouse Hinds E-Z1016-8368 Non-Vulcanized Male Plug
Part Number # E-Z1016-8368
SKU # 348508
$666.70 / 10Each
Typical price:$880.00 / Each
Crouse Hinds E-Z1016-8368 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E-Z1016-8368 |
| SKU #: | 348508 |
| Amperage Rating: | 400 A |
| Dimensions: | 1.49 in Dia x 7.14 in L |
| NEMA Rating: | NEMA 3R/4 |
| Series: | J Series E-Z1016 |
| Temperature Rating (Degrees F): | -40 to 105 deg C |
| Type: | 1-Pole |
| Wire Size: | 2 to 4/0 AWG |
| Color: | Blue |
| Connection type: | Double Setscrew |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | TPE |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275120656 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$666.70 / 10Each
Typical price:$880.00 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Non-Vulcanized Male Plug, 1-Pole, Series: J Series E-Z1016, 600 VAC/VDC, 400 A, 2 to 4/0 AWG Wire, Double Setscrew Connection, Brass Contact, TPE Housing Material, NEMA 3R/4 NEMA Rating, -40 to 105 deg C, Blue, 1.49 in Dia x 7.14 in L Dimensions
E-Z1016-8368 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems Indoor, OutdoorE-Z1016-8368 Item Features
- E-Z assembly and disassembly - no tools needed
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to provide a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
- Recessed contacts protected by insulating jacket that extends beyond contact ends for safety
- Integrated strain relief system features a retaining wire that prevents cable jacket pull-away and bare conductor exposure
- Plugs feature a high strength, molded-in-place locking ring to capture and secure the insulator to the contact
E-Z1016-8368 Standards
CSA C22.2 #1691-12/182.3 LR13963|UL 1691SKU #348508Part Number #E-Z1016-8368UNSPSC39121406UPC00662275120656
