Part Number # E-Z1018-8375
SKU # 2237215
Image Disclaimers Message
E-Z1018-8375

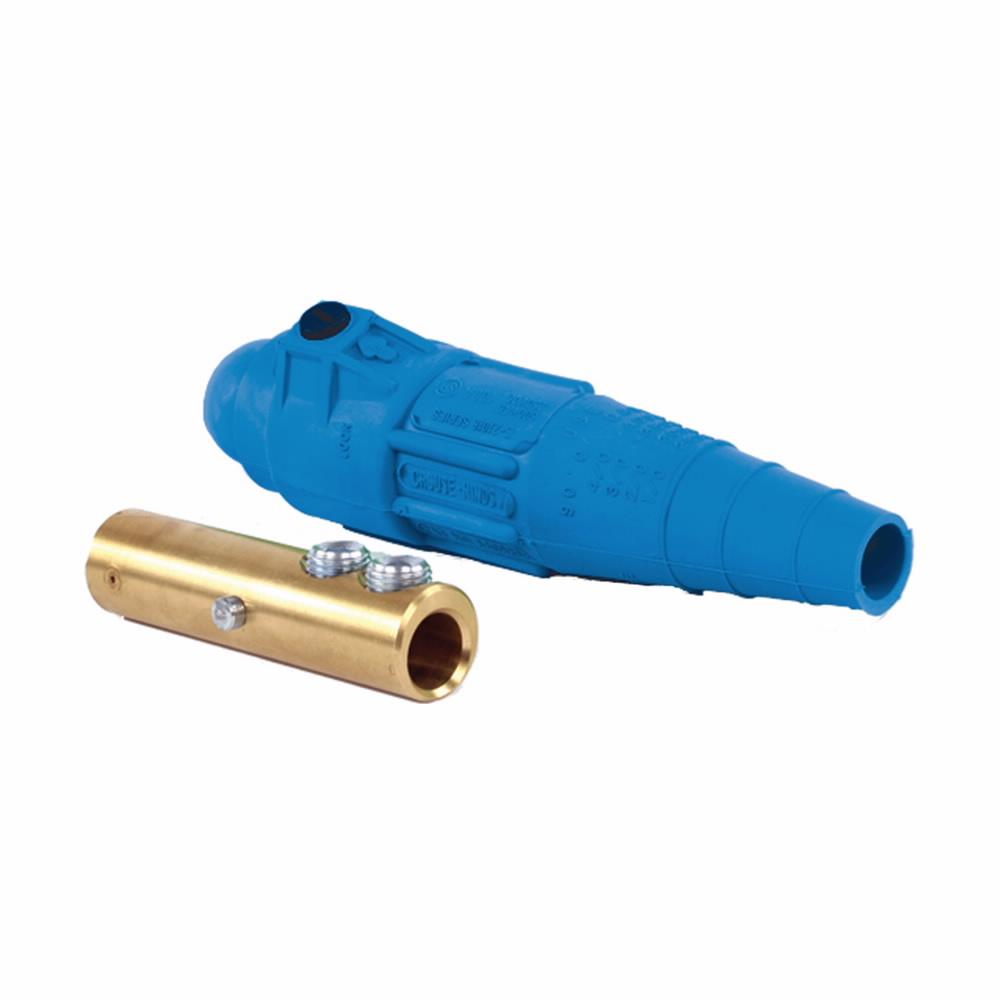

Crouse Hinds E-Z1018-8375 Non-Vulcanized Female Plug
Part Number # E-Z1018-8375
SKU # 2237215
$66.67 / Each
Typical price:$88.00 / Each
Crouse Hinds E-Z1018-8375 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E-Z1018-8375 |
| SKU #: | 2237215 |
| Amperage Rating: | 400, 400 A |
| Dimensions: | 1.47 in Dia x 6.74 in L |
| NEMA Rating: | NEMA 3R |
| Series: | Standard Series E-Z1018 |
| Specifications: | 1-Contact |
| Temperature Rating (Degrees F): | -40 to 105, -40 to 105 deg C |
| Type: | 1-Pole, Female Non-Vulcanized |
| Wire Size: | 2 to 2/0, 2 to 2/0 AWG |
| Color: | Black |
| Connection type: | Double Set Screw, Double Setscrew |
| Contact material: | Brass |
| Country of origin: | US |
| Housing material: | Neoprene/TPE |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275121479 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$66.67 / Each
Typical price:$88.00 / Each
Quantity:
- EATON Crouse-Hinds Cam-Lok Non-Vulcanized Female Plug, 1-Pole, Series: Standard Series E-Z1018, 600 VAC/VDC, 400 A, 2 to 2/0 AWG Wire, Double Setscrew Connection, Brass Contact, Neoprene/TPE Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Contact, -40 to 105 deg C, Black, 1.47 in Dia x 6.74 in L Dimensions
E-Z1018-8375 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Motors, Generators, Indoor and Outdoor Lighting Distribution Panels and Numerous Other Power ApplicationsE-Z1018-8375 Includes
E-Z200072-19 Insulator and A200640-4 ContactE-Z1018-8375 Item Features
- E-Z assembly and disassembly - no tools needed
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
E-Z1018-8375 Standards
CSA C22.2 182.3-M1987|UL LR13963SKU #2237215Part Number #E-Z1018-8375UNSPSC39121406UPC00662275121479
