Part Number # E-Z1018-8393
SKU # 2421695
E-Z1018-8393

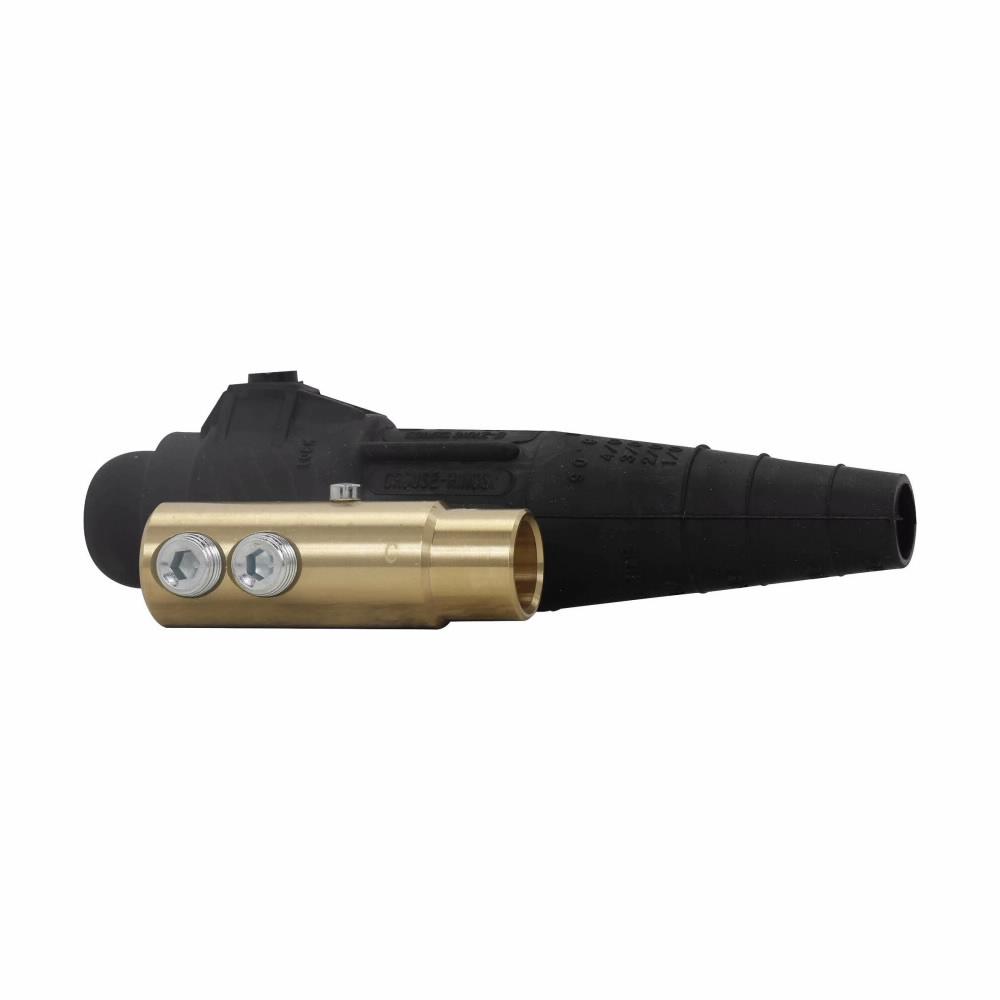

Crouse Hinds E-Z1018-8393 Cam-Lok Non-Vulcanized Female Plug
Part Number # E-Z1018-8393
SKU # 2421695
Crouse Hinds E-Z1018-8393 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E-Z1018-8393 |
| SKU #: | 2421695 |
| Dimensions: | 1.47 in Dia x 6.33 in L |
| Series: | Standard Series E-Z1018 |
| Wire Size: | 4/0 to 2/0 AWG |
| Connection type: | Double Setscrew |
| UNSPSC: | 39121406 |
| UPC: | 00066227512161 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Crouse Hinds E-Z1018-8393 Cam-Lok Non-Vulcanized Female Plug
Brand: Crouse Hinds
Part Number: E-Z1018-8393
EATON Crouse-Hinds Cam-Lok™ Non-Vulcanized Female Plug, Series: Standard Series E-Z1018, 600 VAC/VDC, 400 A, 4/0 to 2/0 AWG Wire, Double Setscrew Connection, Brass Contact, TPE Housing Material, NEMA 3R NEMA Rating, Specifications: 1-Pole, -40 to 105 deg C, Blue, 1.47 in Dia x 6.33 in L Dimensions
Additional Description: CRHD-E-Z1018-8393 (N) E-Z1018 F P DSS 2/0 TO 4/0 BL NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Crouse-Hinds series Cam-Lok Standard Series E-Z1018 plug, Up to 400A continuous, 2/0-4/0 AWG, Blue, Double set screw, Brass contacts, Female, Thermoplastic elastomer (TPE), Non-vulcanized, 600 Vac/dc
E-Z1018-8393 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Portable Power, Power Distribution, Motors, Generators and Entertainment ApplicationsE-Z1018-8393 Includes
A200641-2 Contact and E-Z200072-38 InsulatorE-Z1018-8393 Item Features
- E-Z assembly and disassembly
- Double cam principle provides a positive, vibration proof connection
- Self-compensating for wear
- No moving contact surfaces, eliminating arcing or burning of contacts
- Superior electromechanical connections
- Locked contacts will withstand a pulling force of 1000 lb
- 1/3 of a turn assures a high pressure contact approaching 600 lb/sq-in providing minimum resistance
- Contacts carefully machined from a high conductivity brass to a smooth sliding fit and easy locking action
- Watertight elastomeric insulators molded from colorfast material, color coded for easy phase identification
E-Z1018-8393 Standards
CSA C22.2 182.3-M1987 LR13963SKU #2421695Part Number #E-Z1018-8393UNSPSC39121406UPC00066227512161
Image provided may only be a representation of final product and may include optional equipment
