Part Number # E0400-1662
SKU # 2199248
Image Disclaimers Message
E0400-1662

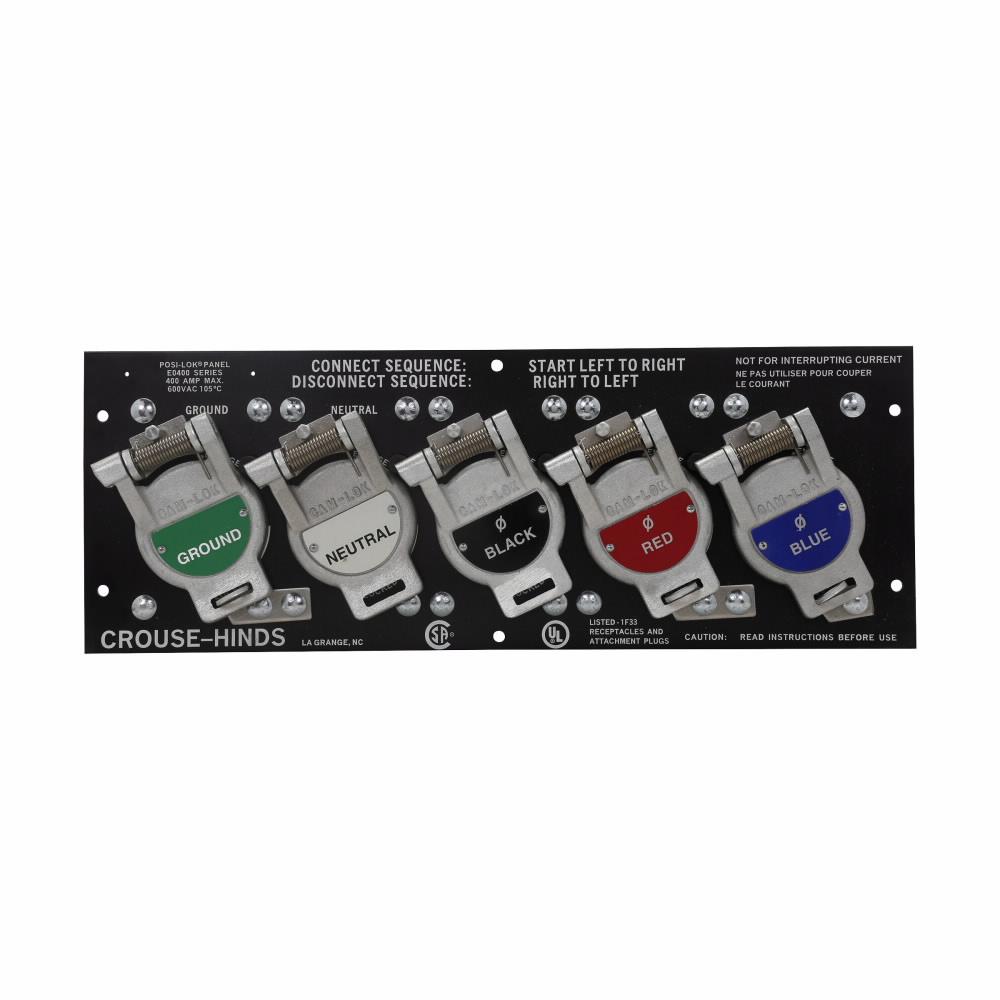

Crouse Hinds E0400-1662 Male Panel
Part Number # E0400-1662
SKU # 2199248
$4705.74 / Each
Typical price:$6211.58 / Each
Crouse Hinds E0400-1662 Key Features
| Brand: | Crouse Hinds |
|---|---|
| Part Number # : | E0400-1662 |
| SKU #: | 2199248 |
| Amperage Rating: | 400 |
| Dimensions: | 19 in L x 6.97 in H |
| NEMA Rating: | NEMA 3 |
| Series: | E0400 |
| Specifications: | -40 to 105 deg C |
| Suitable For Use With: | E0200 Series 600 V AC 200 A 5-Poles Plug and Panel, E0200 Series 600 VAC 200 A 5-Poles Plug and Panel |
| Temperature Rating (Degrees F): | 105 |
| Type: | 5-Pole |
| Wire Size: | 2 to 4/0 |
| Color: | Green/White/Black/Red/Blue |
| Connection type: | Male |
| Contact material: | Copper |
| Housing material: | Steel |
| Material: | Steel |
| Mounting type: | Recessed |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00662275124500 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4705.74 / Each
Typical price:$6211.58 / Each
Quantity:
- EATON Crouse-Hinds Posi-Lok Male Panel, Series: E0400, For Use With: E0200 Series 600 V AC 200 A 5-Poles Plug and Panel, Specifications: -40 to 105 deg C, Steel, Green/White/Black/Red/Blue, 19 in L x 6.97 in H Dimensions
E0400-1662 Application
Industrial Facilities, Factories Facility, Power Distribution and Control, Quick Disconnect Power Systems, Indoor and Outdoor ApplicationsE0400-1662 Item Features
- Sequential interlock system requires the user to connect and disconnect each plug-in sequence
- Polarized panels eliminate the possibility of cross phasing
- Proven Cam-Lok double cam principle provides a positive, vibration proof connection
- No moving contact surfaces, eliminating arcing or burning of contacts
- 5-receptacles per panel
E0400-1662 Standards
UL 498/E67181|CSA C22.2 182.3-M1987|CSA LR13963|NEC Compliant|Article 520-53 Section K|Article 530-22 Section ASKU #2199248Part Number #E0400-1662UNSPSC39121406UPC00662275124500
